White PCB Terminal Block PTSM 0,5/ 3-2,5-V SMD WH - 1821009
5.45 VAT excl.
£6.54 VAT incl.
White PCB terminal block for LED applications - header, for smd process, vertical version, 3 positions
Country of origin: Germany (DE)
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

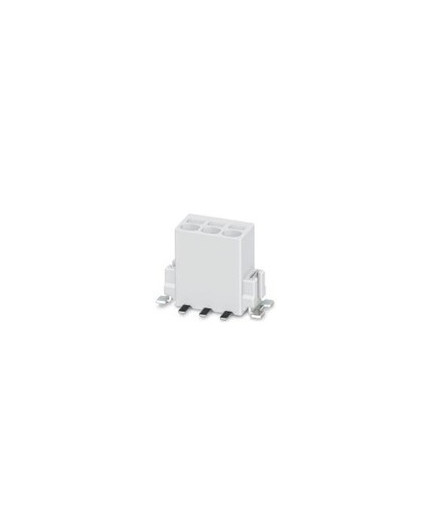

White PCB Terminal Block PTSM 0,5/ 3-2,5-V SMD
Nominal current: 6 A,
Nom. voltage: 160 V,
Pitch: 2.5 mm,
Number of positions: 3,
Connection method: Spring-cage connection,
Mounting: SMD/THT/THR,
Conductor/PCB connection direction: 90°,
Color: white
- White design: Stable color when welding and during use
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- High current carrying capacity of 6 A in very compact dimensions
- Designed for integration into the SMD soldering process
- Vertical connection enables multi-row arrangement on the PCB
- Additional solder anchors reduce the mechanical strain on the soldering spots
Country of origin: Germany (DE)
1821009
1000 Items
Data sheet
- Position
- Vertical
- Type of connector
- PCB terminal black (SMD solderable)
- Type of connection
- Fixed
