1m Asymmetric Alu-Wall LED Profile EA1 white painted with difuser

EA1 - Asymmetric, wall installed LED pr1ofile for floor LED lighting 1m

Why are you need to use our aluminium channel?:
- Gives LED strips a finished look.
- Effectively protects and extends the lifespan of LEDs.
- Produces high-quality light for professional, decorative and accent lighting purposes.
- Makes installation of LED strips quick and easy.
- Can be cut and customized to suit any project.

Features:
1. The extrusion is designed for <12mm flexible or rigid LED strips, such as 5050 5060 3528 2835 single row LED strips
2. For wall mount.
2. The aluminium channel is widely used as interior lighting.
3. Easy Installation with all needed accessories (cover, end caps).

Specifications:

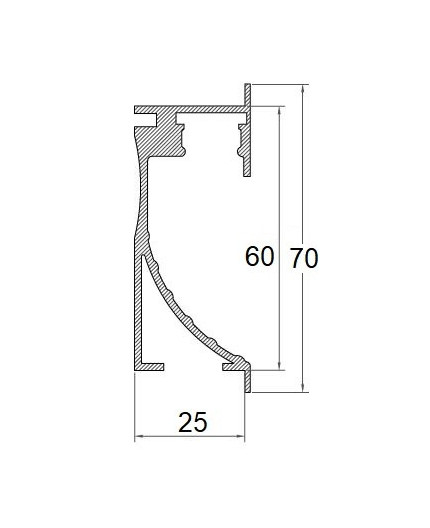

Overall size: 70mm x 26mm (W*H)
Inner size: 60mm x 25mm (W*H)
Length: 1m
Material: High Quality Aluminium
Finish: painted white
Waterproof type: Non waterproof
Compatible with led strip light width less than 12mm

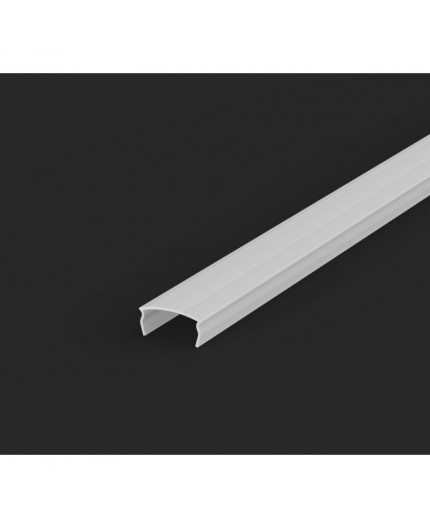

Cover/diffuser: high quality transparent or milky (material: PC)
Transparency:  transparent cover (PC) - 97%
                         milky cover (PC) - 70%

Set includes:
1 x 1m LED aluminium extrusion (LED strip is NOT included)
1 x 1m diffuser/cover

Additional accessories (add if needed):
2 x end cap (1pcs no hole and 1pcs with hole)

This product is suitable for domestic and commercial projects

APPLICATIONS:

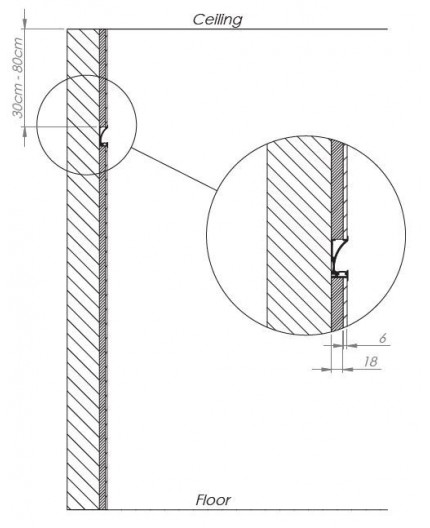

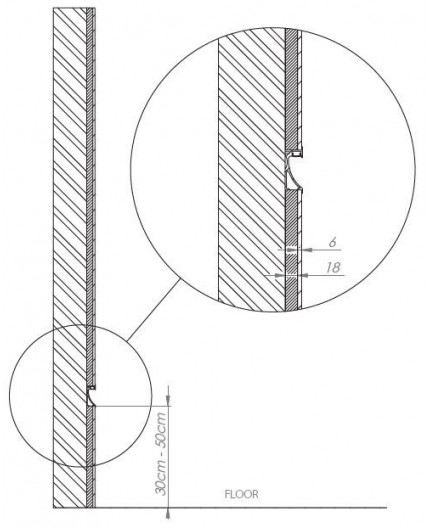

- Asymmetric, wall build-in type LED profile for floor LED lighting
- Floor hallways LED lighting profile
- Perfect for hotels hallways, restaurant, hospitals,
- Walkways LED lighting

NOTE: Continuous light line effect (LEDs dots free) with milky diffuser – a best result with LED tape 120LEDs/m or more.

Designed and made in the EU.
