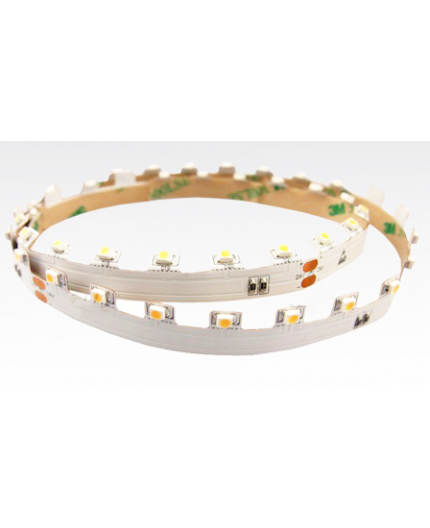

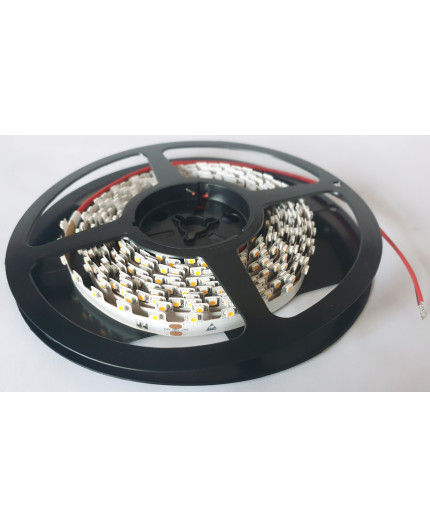

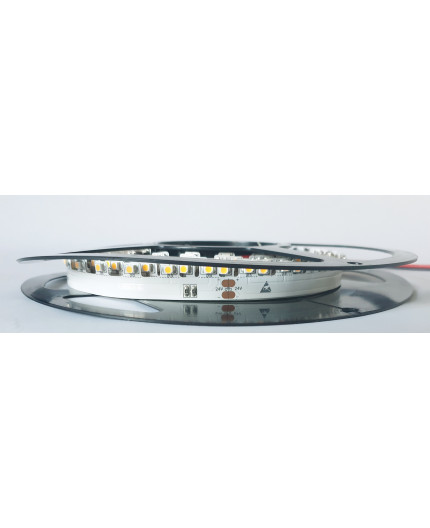

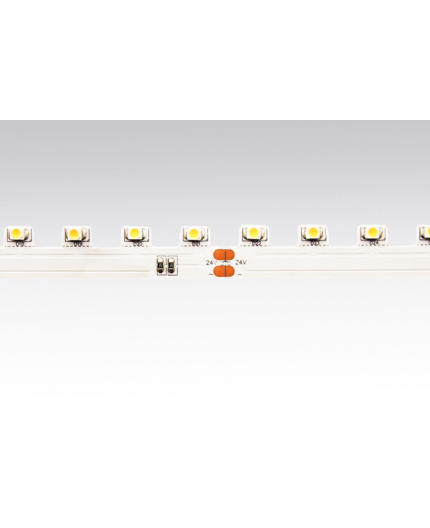

24VDC angle adjustable LED tape, warm white 2700K, 4.8W/m, 70LED/m, 5m (24W, 300 LED), IP20, SMD3528
24VDC angle adjustment LED Strip, 2700K, 70 LEDs/m, 4.8W/m, total length: 5m (24W, 300LEDs), SMD3528, IP20, white PCB (5+8mm), 360lm/m, with connection wires at both ends
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
24VDC angle adjustment LED tape, warm white 2700K, 4.8W/m, 70LED/m, 5m (24W, 300 LED), IP20, SMD3528
LED Strip SMD3528 Angel Adjustment
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Quantity/m: 60 LEDs per meter
Power: 4.8W/m
CCT: 2700K (warm white)
Brightness: approx. 360lm/m
Beam angle: 120degree
Total length (roll): 5m (24W, 350LEDs)
Degree of protection: IP20 (non-waterproof)
PCB: 5+8mm wide white PCB
Inst.: 5+8mm wide self-adhesive 3M tape backing
Cutting points: at 3 LED (50mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Warranty: 3 years
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac)
Data sheet
- Light colour
- Warm white
- LED quantity
- 70LEDs/m
- Colour temperature (CCT)
- 2700K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- PCB width
- 5+8mm
- Length
- 5.0m / 5000mm
- Watts per metre
- 4.8W/m
- Features
- Angle adjustment
Single Colour - Input voltage
- 24VDC
- CRI
- ≥80
- Version
- Constant Voltage (CV)
- LED chip
- SMD3528
- Cutting
- 50mm
- Lumens per metre
- 0 - 499 lm/m
- Beam angle
- 120 degree
