1m recessed LED aluminium channel painted white extrusion EW1 diffuser

1m recessed LED aluminium channel painted white extrusion EW1 diffuser


£11.00 VAT excluded

end caps

Volume discounts

Quantity Unit discount You Save
10 1% Up to £1.10
20 2% Up to £4.40
50 3% Up to £16.50
100 4% Up to £44.00
200 5% Up to £110.00

EW1 Recessed LED aluminium channel extrusion 30mm x 9mm for universal lighting applications 1m
- finish: painted, white
- cover: high quality transparent or milky diffuser
- end caps (option)

Designed and made in the EU.


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.


Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.


You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

EW1 - recessed LED aluminium channel for general lighting 1m

Why are you need to use our aluminium channel?:
- Gives LED strips a finished look.
- Effectively protects and extends the lifespan of LEDs.
- Produces high-quality light for professional, decorative and accent lighting purposes.
- Makes installation of LED strips quick and easy.
- Can be cut and customized to suit any project.

1. The extrusion is designed for <28mm flexible or rigid LED strips, such as 5050 5060 3528 2835 double/triple rows LED strips
2. For mounting in grooves.
2. The aluminium channel is widely used as interior lighting.
3. Easy Installation with all needed accessories (cover, end caps).

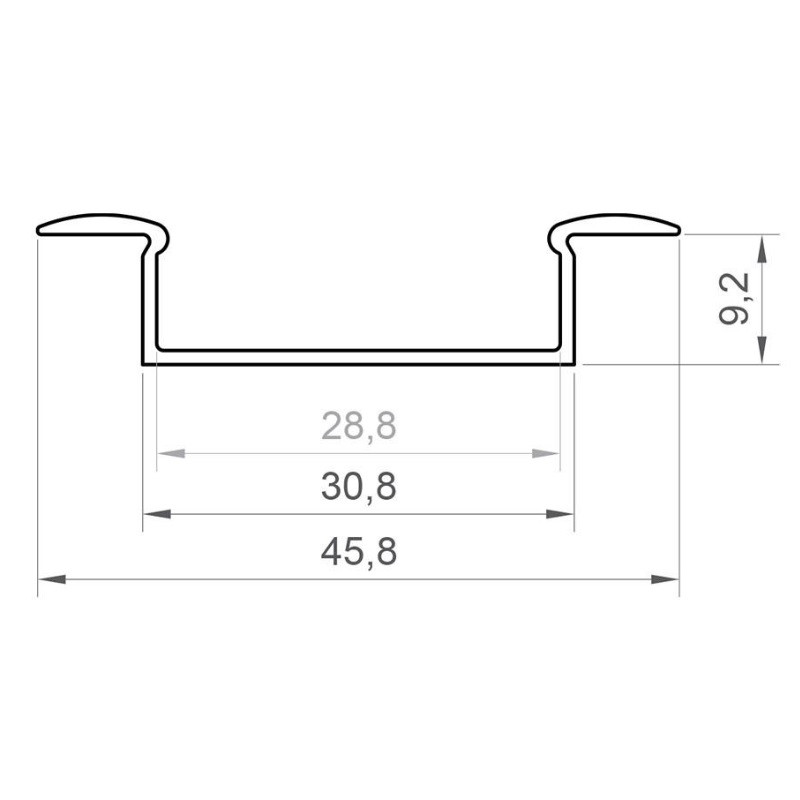

Overall size: 45mm x 10mm (W*H)
Inner:30mm x 9mm (W*H)
Inner width: 29mm
Length: 1m / 1000mm
Material: High Quality Aluminium
Finish: white, painted
Waterproof type: Non waterproof
Compatible with led strip light width less than 28mm

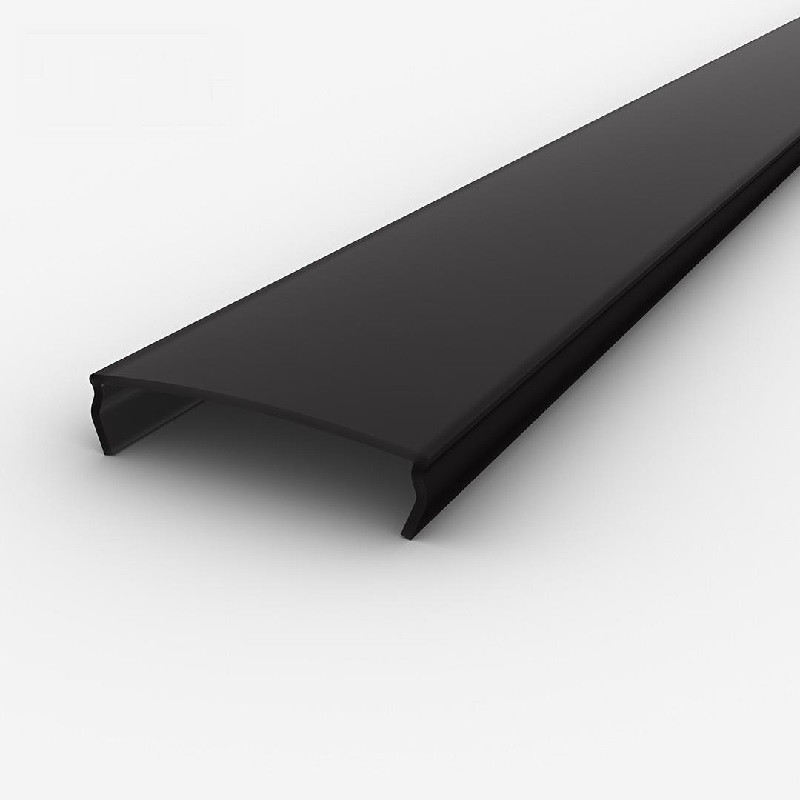

Cover/diffuser: high quality transparent or milky (material: PC)

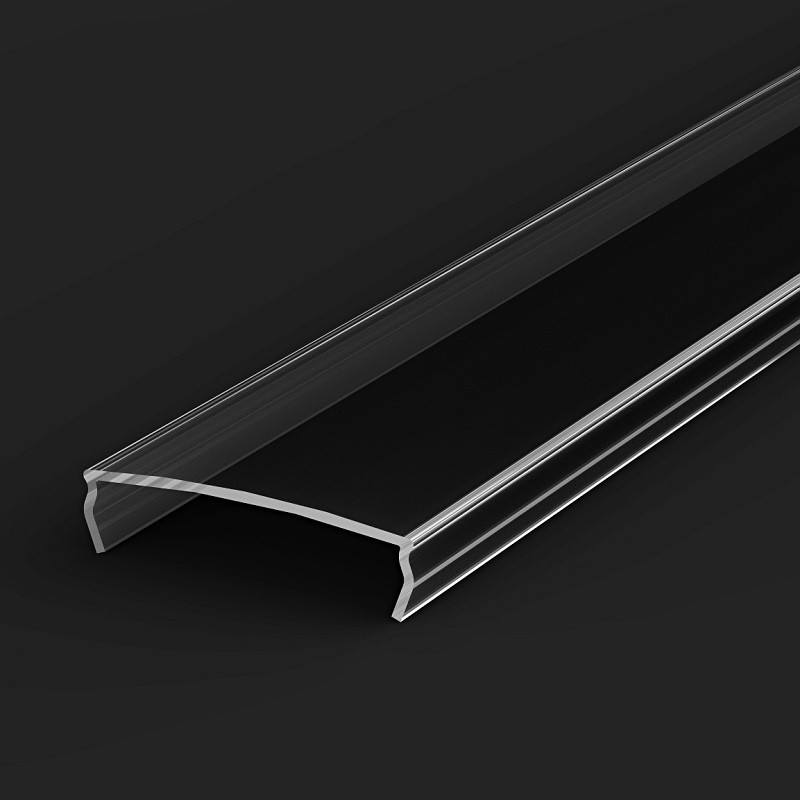

Transparency:  transparent cover (PC) - 97%

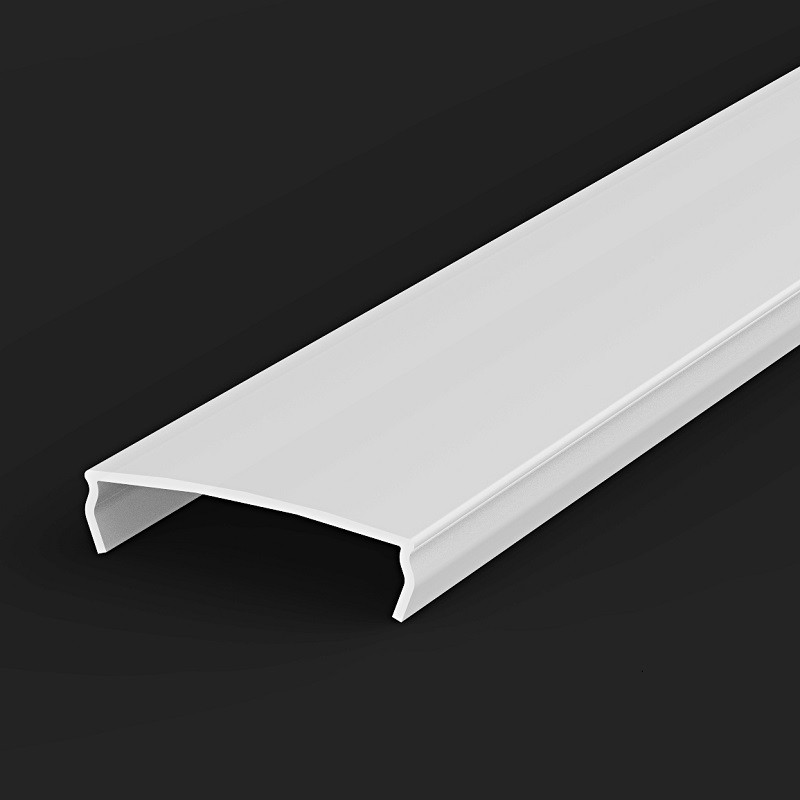

                         milky cover (PC) - 70%

Set includes:
1 x 1m LED aluminium extrusion (LED strip is NOT included)
1 x 1m diffuser/cover

Additional accessories (add if needed):
2 x end cap

Note: If you need extra end caps, covers/diffusers, etc., it is possible to order them separately in our e-shop.

This product is suitable for domestic and commercial projects.

NOTE: Continuous light line effect (LEDs dots free) with milky diffuser – a best result with LED tape 120LEDs/m or more.

Designed and made in the EU.

200 Items

Data sheet

Ceiling & Wall
Mounting Method
1.0m / 1000mm
White painted

Specific References
