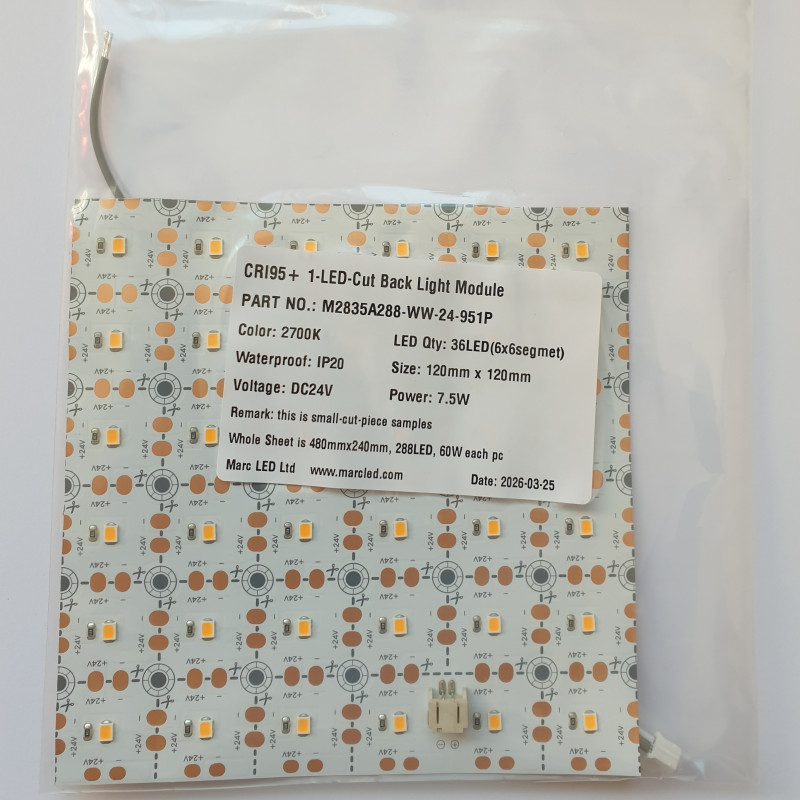

Sample of 24Vdc 60W (7.5W 120mmx120mm) 2700K 1-LED-Cut Flexible Back Light Module Sheet SMD2835
5.90 VAT excl.
£7.08 VAT incl.
Sample of ML-M2835A288-WW-24-951P, 24VDC SMD2835 1-LED-Cut CRI≥95 Flexible Back Light Module / Panel, 2700K, 60W per sheet 480mmx240mm
Sample dimensions: 120mm x 120mm (7.5W) with connection cable 15cm
Cutting: 1-LED-cut (20mmx20mm)
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
Sample of ML-M2835A288-WW-24-951P, SMD2835 1-LED-Cut CRI≥95 Flexible Back Light Module for lighting box.
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Size of the sample module cut from standard sheet 240mmx480mm: 6LED x 6LED / 120mm x 120mm
Quantity of LEDs: 36pcs
Power of original sheet: 60W
Power of sample module: 7.5W
CCT: 2700K ± 150K (warm white)
CRI(Ra)≥95
Beam angle: 120 degrees
Cutting: 1-LED-cut (20mmx20mm)
Degree of protection: IP20 (non-waterproof)
PCB with self-adhesive 3M tape backing
Operation temperature: -20℃-+45℃
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac)
Set with a connection cable 15cm
ML-M2835A162-WW-24-951P-SAMPLE
0 Item
Data sheet
- Light colour
- White
- Colour temperature (CCT)
- 2700K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Length
- SAMPLE
- Features
- Single Colour
- Wattage
- 60W
- Input voltage
- 24VDC
- CRI
- ≥95
- Version
- Constant Voltage (CV)
- LED chip
- SMD2835
- Lens
- No
