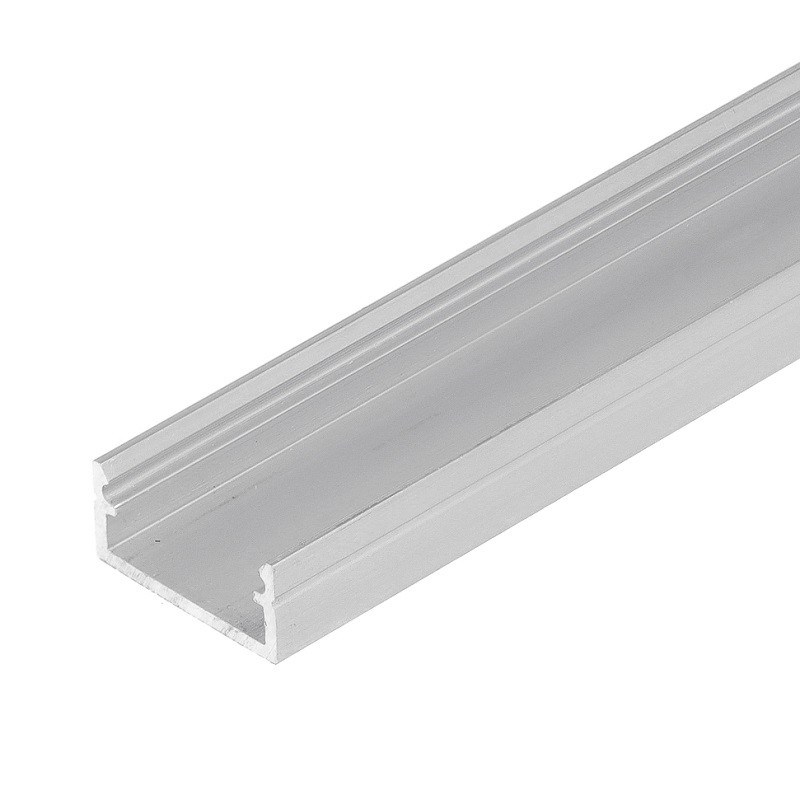

Sample of LED profile TM2 (raw aluminium), 14mm x 6mm, set with cover

Sample of TM2 - surface mount LED aluminium U-profile for general lighting 10-15cm

Why do you need to use our aluminium channel?:
- Gives LED strips a finished look.
- Effectively protects and extends the lifespan of LEDs.
- Produces high-quality light for professional, decorative and accent lighting purposes.
- Makes installation of LED strips quick and easy.
- Can be cut and customized to suit any project.

Features:
1. The extrusion is designed for <12mm flexible or rigid LED strips, such as 5050 5060 3528 2835 single-row LED strips
2. For surface mount.
2. The aluminium channel is widely used as interior lighting.
3. Easy Installation with all needed accessories (cover, end caps).

Specifications:

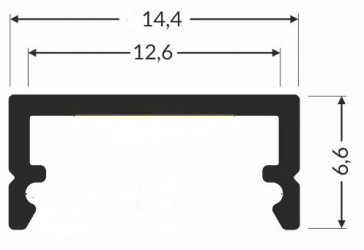

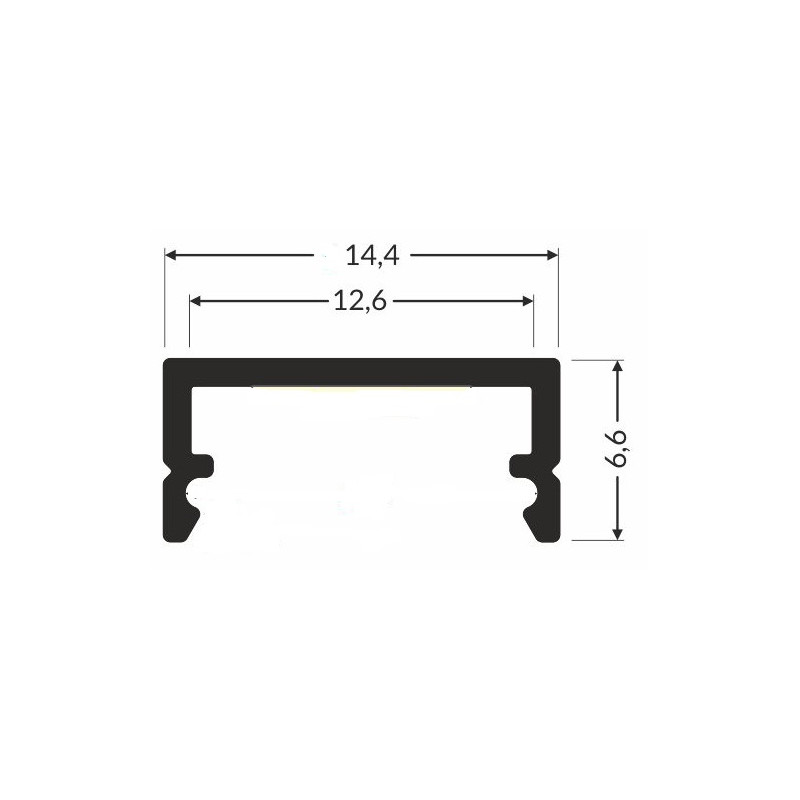

Overall size: 14.4mm x 6.6mm (W*H)
Inner width: 12.6mm
Length: 10-15cm
Material: High-Quality Aluminium
Finish: raw aluminium
Waterproof type: Non-waterproof
Maximum width of LED strip: 12 mm

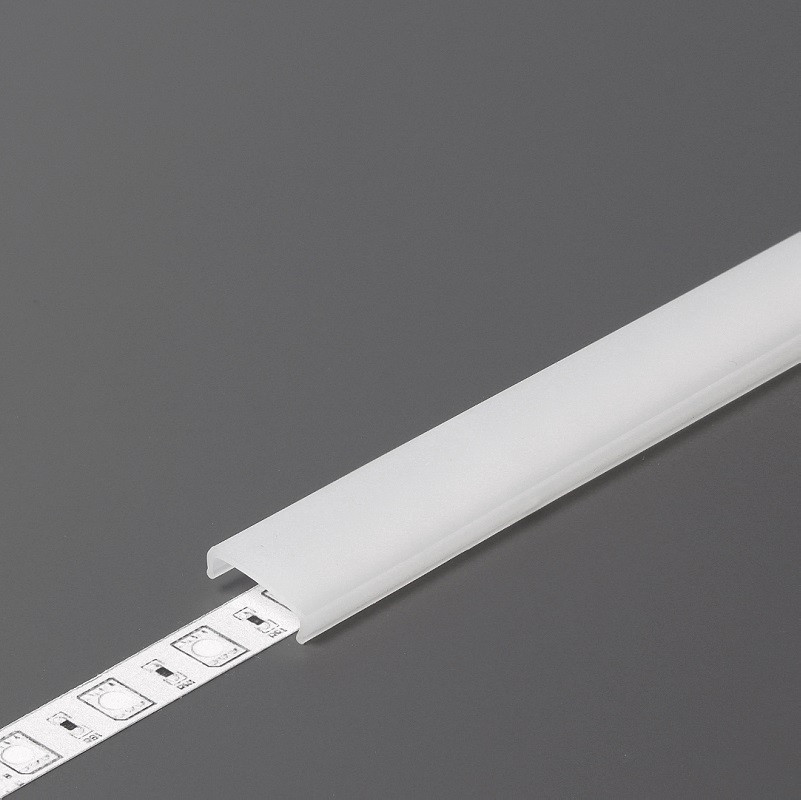

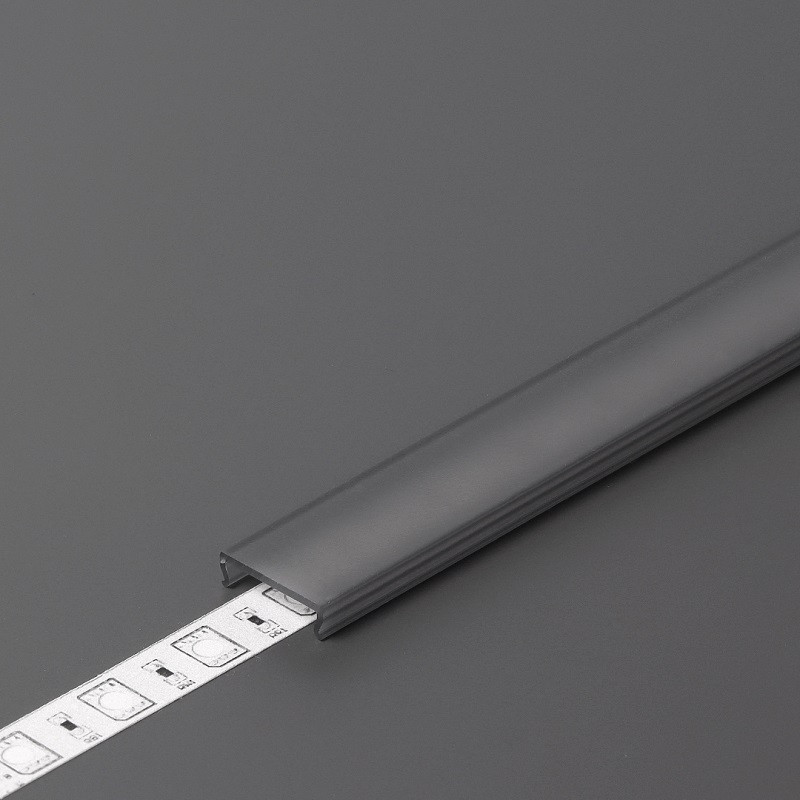

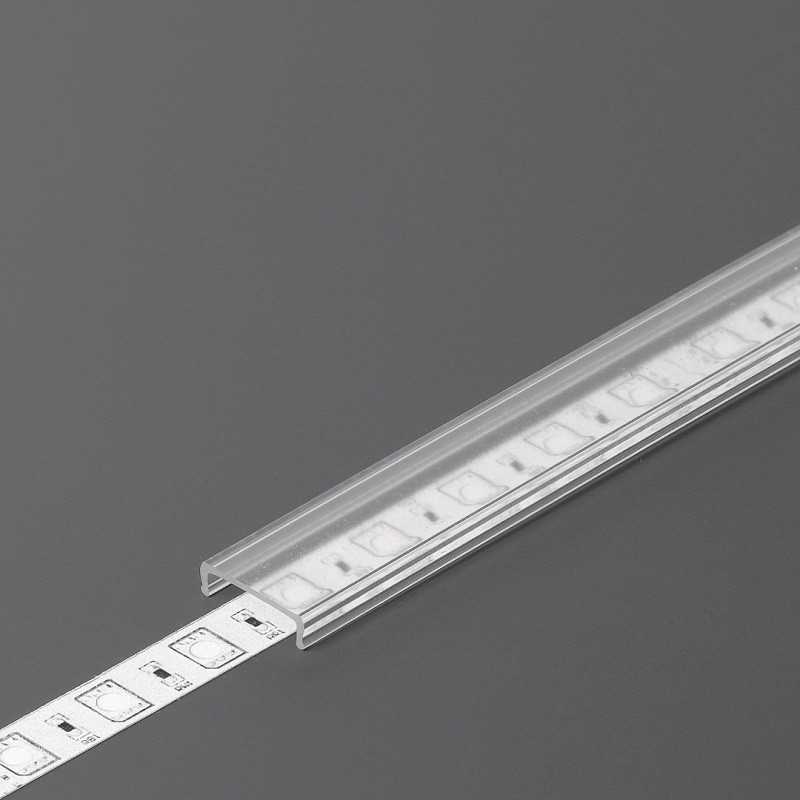

Cover/diffuser: transparent, opal, or black
Working temp.: transparent cover (PMMA) - from -20°C to 70°C
                       opal cover (PMMA) - from -20°C to 70°C
                       black cover (PMMA) - from -20°C to 70°C
Transparency:  transparent cover (PMMA) - 95%
                      opal cover (PMMA) - 70%
                      black cover (PMMA) - 40%
UV resistance:  transparent cover: yes
                      opal cover: yes
                      black cover: yes

Set includes:
1 x 10-15cm LED aluminium extrusion (LED strip is NOT included)

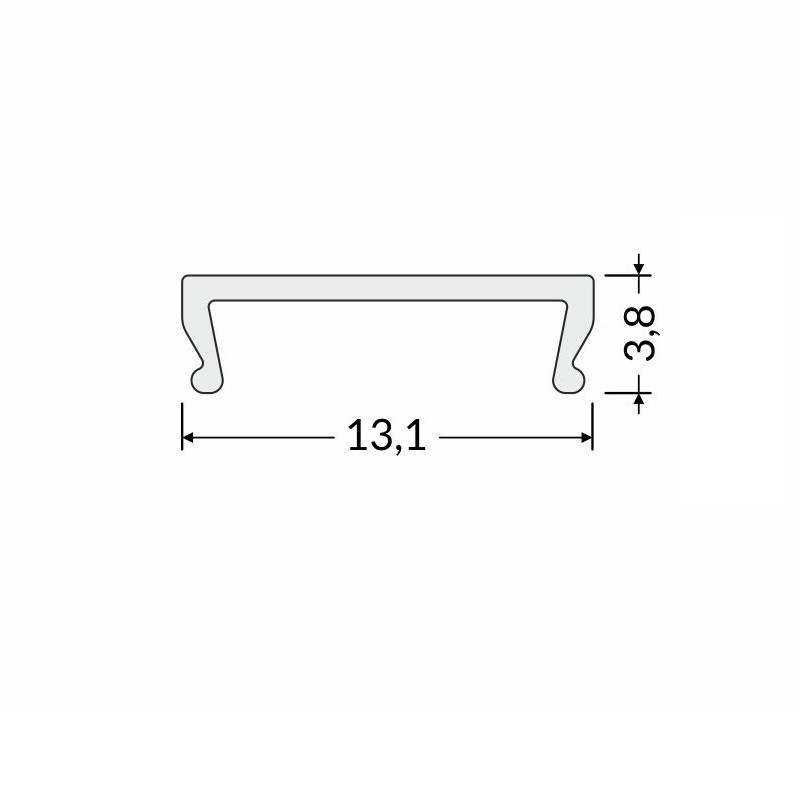

1 x 10-15cm diffuser/cover

Additional accessories (add if needed):

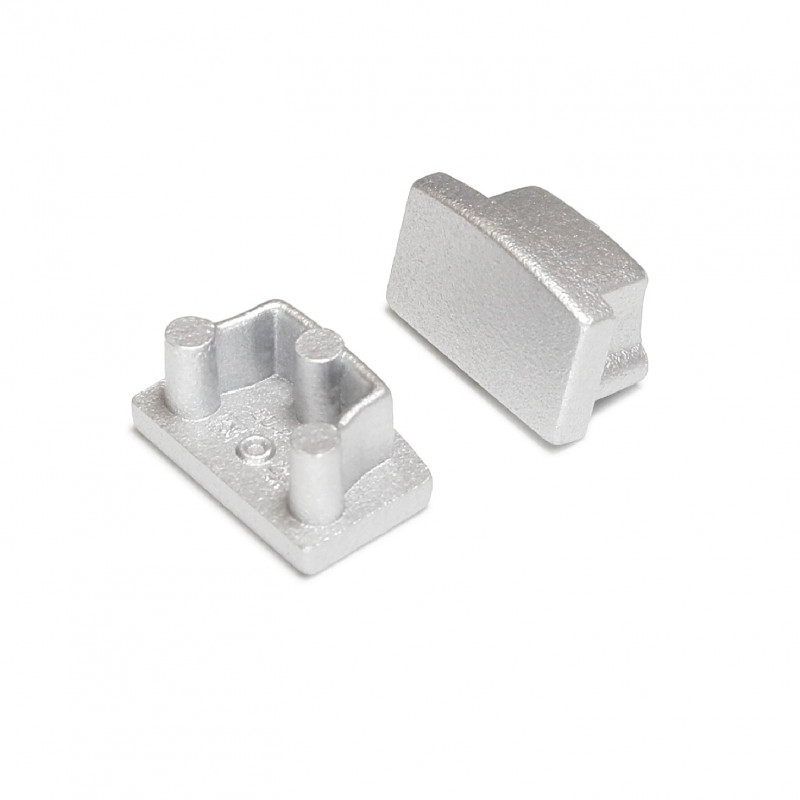

2 x end caps (one with a hole and one with no hole)

Note 1: Mounting clips are sold as separate articles in our e-shop.
Note 2: If you need extra end caps, covers/diffusers, etc., it is possible to order them separately in our e-shop.

This product is suitable for domestic and commercial projects.

Designed and made in the EU.
