0.95 VAT excl.
£1.14 VAT incl.

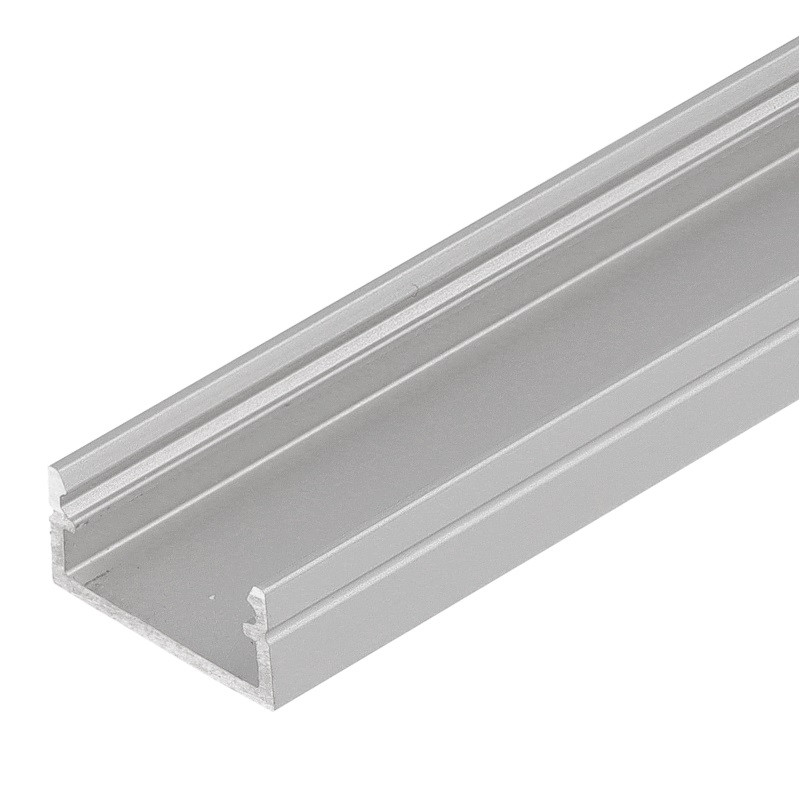

Sample of TM2 aluminium LED extrusion for universal lighting applications, 10-15cm

- finish: silver anodized
- cover: transparent, opal, or black
- end caps (option)
- length: 10-15cm

Designed and made in the EU.

diffuser

end caps

Volume discounts

Quantity Unit price You Save
5 £0.95 £0.05
10 £0.95 £0.19
20 £0.95 £0.57
50 £0.95 £1.90
100 £0.95 £4.75
99 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Sample of TM2 - surface mount LED aluminium U-profile for general lighting 10-15cm

Why do you need to use our aluminium channel?
- Gives LED strips a finished look.
- Effectively protects and extends the lifespan of LEDs.
- Produces high-quality light for professional, decorative and accent lighting purposes.
- Makes installation of LED strips quick and easy.
- Can be cut and customized to suit any project.

Features:
1. The extrusion is designed for <12mm flexible or rigid LED strips, such as 5050 5060 3528, and 2835 single-row LED strips
2. For surface mount.
2. The aluminium channel is widely used as interior lighting.
3. Easy Installation with all needed accessories (cover, end caps).

Specifications:

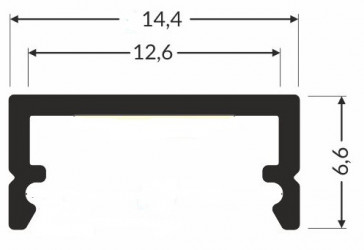

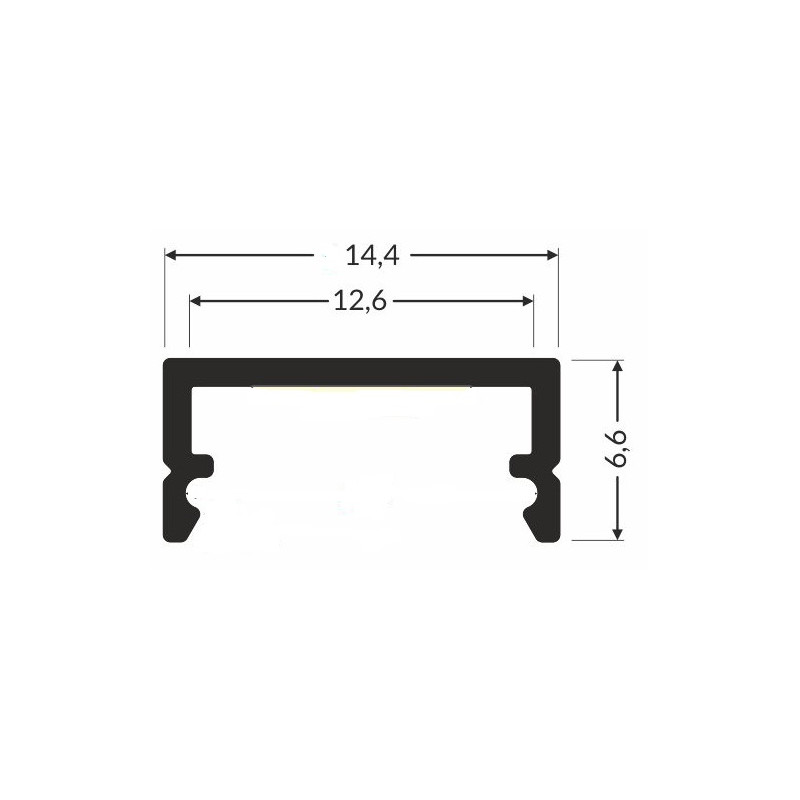

Overall size: 14.4mm x 6.6mm (W*H)
Inner width: 12.6mm
Length: 10-15cm
Material: High-Quality Aluminium
Finish: silver anodized
Waterproof type: Non-waterproof
Maximum width of LED strip: 12 mm

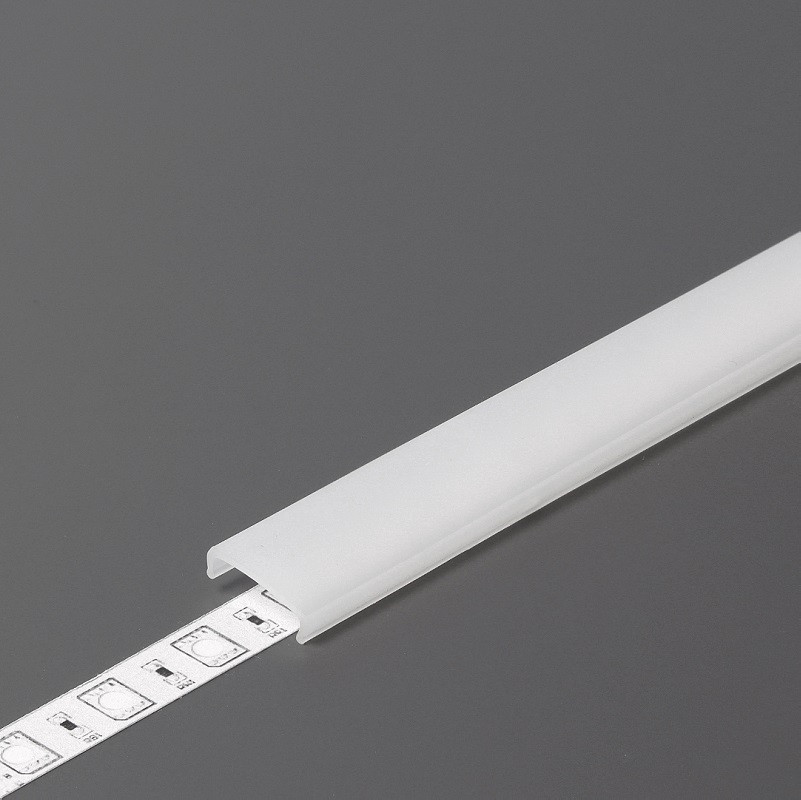

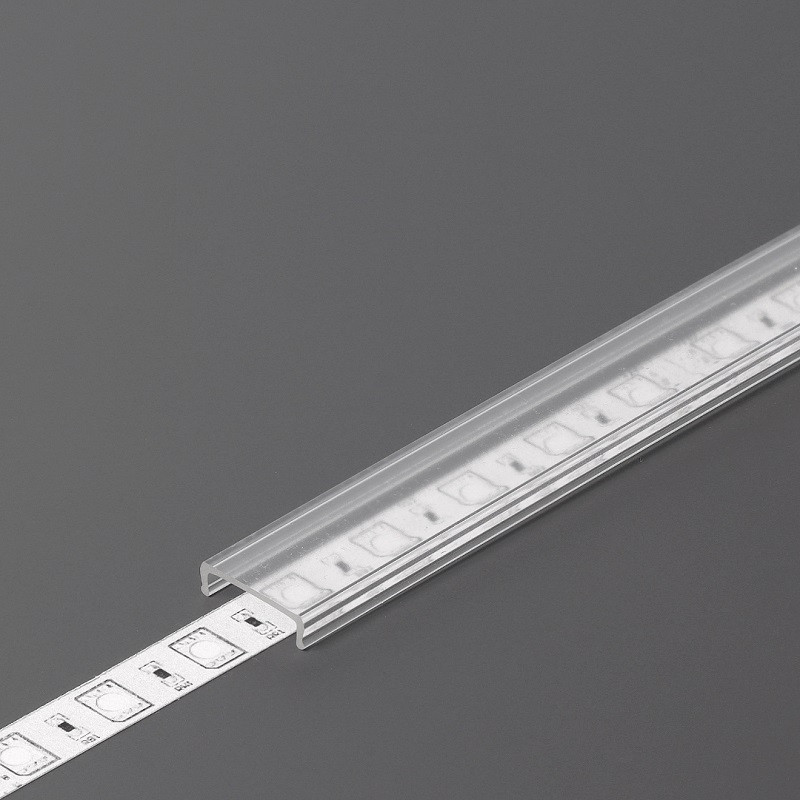

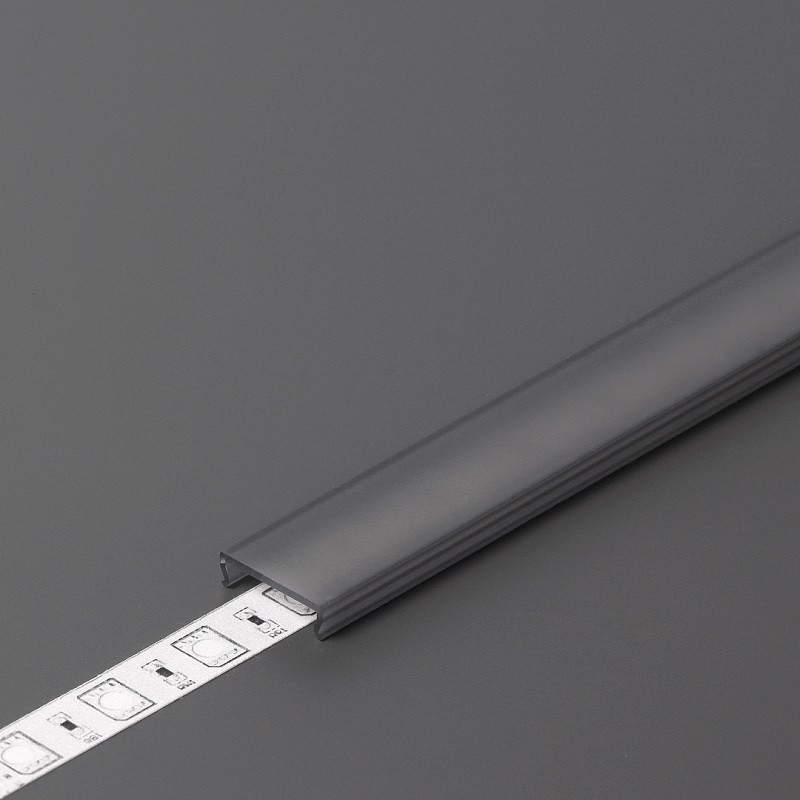

Cover/diffuser: transparent, opal, or black
Working temp.: transparent cover (PMMA) - from -20°C to 70°
                       opal cover (PMMA) - from -20°C to 70°C
                       black cover (PMMA) - from -20°C to 70°C
Transparency:  transparent cover (PMMA) - 95%
                      opal cover (PMMA) - 70%
                      black cover (PMMA) - 40%
UV resistance:  transparent cover: yes
                      opal cover: yes
                      black cover: yes

Set includes:
1 x 10-15cm LED aluminium extrusion (LED strip is NOT included)
1 x 10-15cm diffuser/cover

Additional accessories (add if needed):

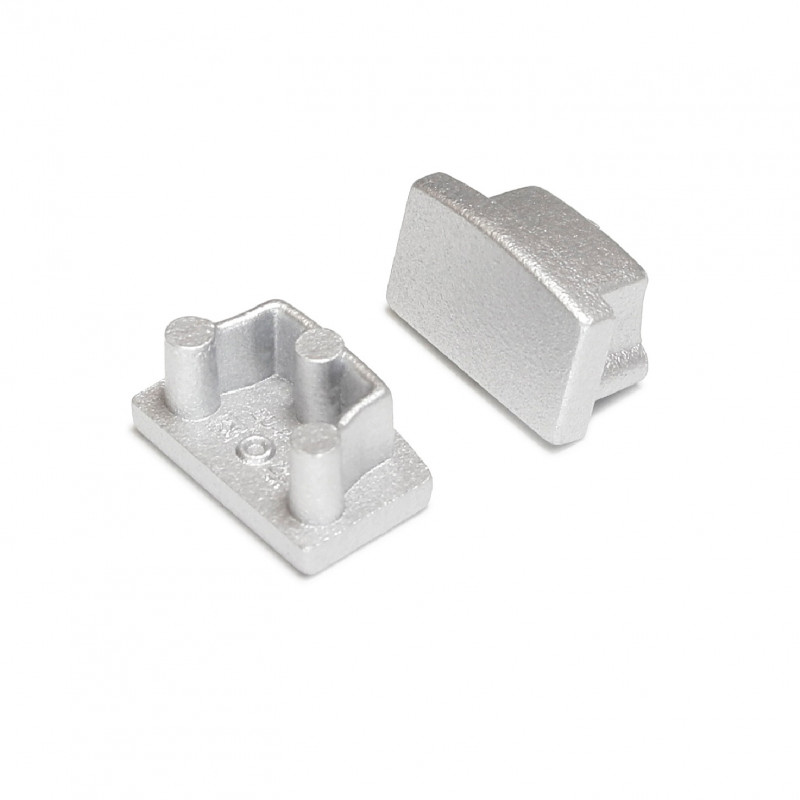

2 x end caps (one with a hole and one with no hole)

Note 1:
Mounting clips are sold as separate articles in our e-shop.
Note 2:
If you need extra end caps, covers/diffusers, etc., they are available in our e-shop.

This product is suitable for domestic and commercial projects.

Designed and made in the EU.

ML-TM2S-SAMPLE
99 Items

Data sheet

Applications
Decorative
Furniture
Indoor
Stair / Steps
Mounting Method
Recessed
Surface mount
Length
SAMPLE
Finish
Silver anodized
