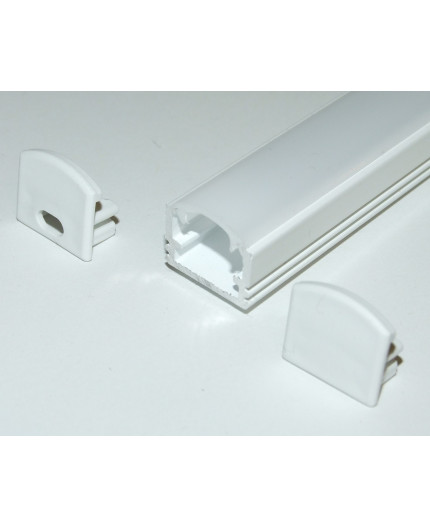

PH2 LED profile 1m / 1000mm surface high extrusion, painted aluminium, white, with opal diffuser

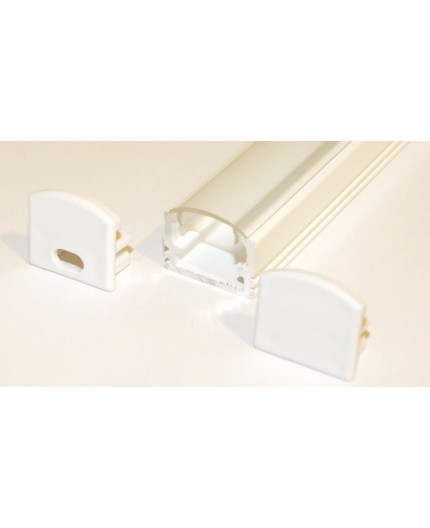

PH2 LED profile 1m / 1000mm surface high extrusion, painted aluminium, white, with transparent diffuser
PH2 LED profile 1m / 1000mm surface high extrusion, painted aluminium, white, with diffuser
Sample of PH2 LED profile surface high extrusion, painted aluminium, white, with diffuser
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
PH2 LED profile 1m / 1000mm surface high extrusion, painted aluminium, white, with opal diffuser
PH2 LED profile 1m / 1000mm surface high extrusion, painted aluminium, white, with transparent diffuser
PH2 LED profile 1m / 1000mm surface high extrusion, painted aluminium, white, with diffuser
Sample of PH2 LED profile surface high extrusion, painted aluminium, white, with diffuser

Sample of PH2 LED profile surface high extrusion, painted aluminium, white, with diffuser

0.95 VAT excl.
£1.14 VAT incl.

This is a sample of the Surface high LED aluminium extrusion 18mm x 13mm for universal lighting applications - model PH2;
- finish: painted: white;

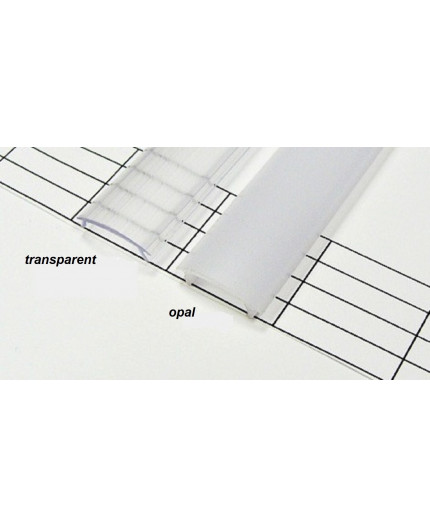

- cover: high quality transparent or opal diffuser (click)
- end caps (pair) - option, add if needed
- will fit any tape with max. width of 10mm

Length: 10-15cm

NOTE: LEDs dots free effect is possible if used with opal cover and with low power LED strips (120LEDs/m or more).

Designed and made in the EU.

diffuser

end caps

199 Items


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Sample PH2 - surface mount high LED aluminium U-profile for general lighting

Length: 10-15cm

Why are you need to use our aluminium channel?
- Gives LED strips a finished look.
- Effectively protects and extends the lifespan of LEDs.
- Produces high-quality light for professional, decorative and accent lighting purposes.
- Makes installation of LED strips quick and easy.
- Can be cut and customized to suit any project.

Features:
1. The extrusion is designed for <11mm flexible or rigid LED strips, such as 5050 5060 3528 2835 single row LED strips
2. For surface mount.
2. The aluminium channel is widely used as interior lighting.
3. Easy Installation with all needed accessories (cover, end caps).

Specifications:
Overall size: 18mm x 13mm (W*H)
Inner width: 14mm
Length: 10 - 15cm
Material: High Quality Aluminium
Finish: white, painted
Waterproof type: Non waterproof
Compatible with led strip light width less than 11mm
Cover/diffuser (click): transparent or opal

Set includes:
1 x 10 - 15cm LED aluminium extrusion (LED strip is NOT included)
1 x 10 - 15cm diffuser/cover

Additional accessories (add if needed):
2 x end cap (one with hole and one no hole)

Note 1: Mounting clips are sold as separate articles in our e-shop.
Note 2: If you need extra end caps, covers/diffusers, etc., it is possible to order them separately in our e-shop.


This product is suitable for domestic and commercial projects.

NOTE: LEDs dots free effect is possible if used with opal cover and with low power LED strips (120LEDs/m or more).

Designed and made in the EU.

ML-PH2W-SAMPLE
199 Items

Data sheet

Applications
Furniture
Main
Mounting Method
Surface mount
Length
SAMPLE
Finish
White painted
