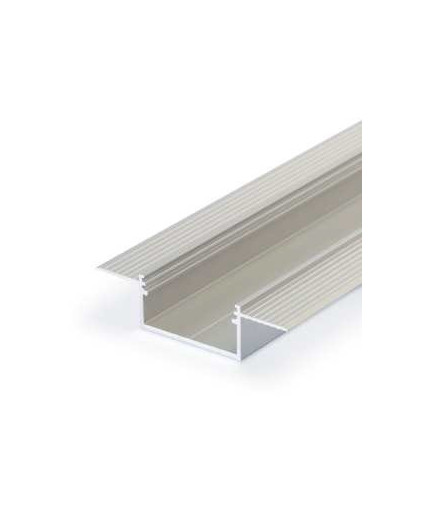

Sample of Alu-Ceiling LED profile C3L (raw alu.) for plaster boards, with cover

C3L - ceiling mount LED aluminium profile for creating lines of light flush with the surface of walls and ceilings (after mounting aluminium flanges are concealed). Can be painted.

This is a listing for the sample of the aluminium linear LED profile C3L with a cover.

Length: 10-15cm

Specifications:

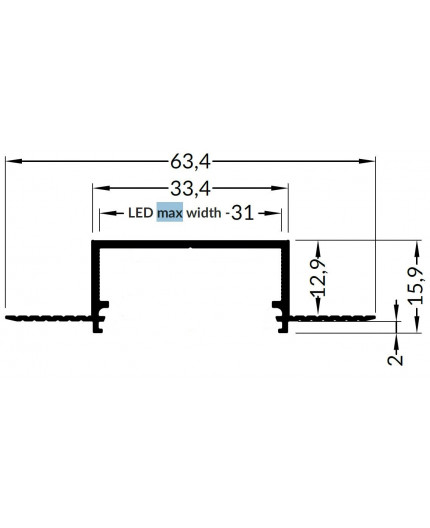

Overall size: 63.4mm x 15.9mm (W*H)

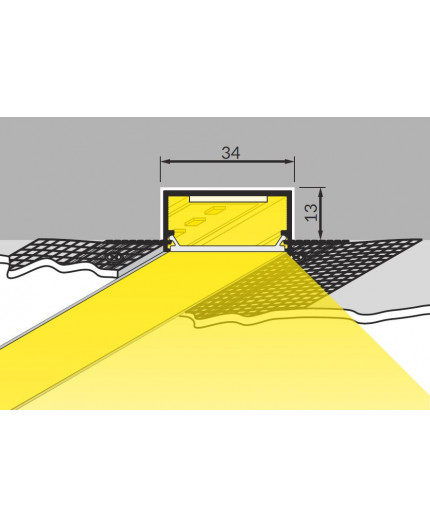

Groove size: 34mm x 13mm
Inner width: 31mm
Length: 10-15cm
Material: High-Quality Aluminium
Finish: raw aluminium
Can be painted in any colour
Waterproof type: Non-waterproof
Compatible with led strip light width less than 30mm
Type of cover: transparent, opal, black
Installation: placed/removed from the top.
Material: PMMA
Working temp.: transparent cover (PMMA) - from -20°C to 70°C
                       opal cover (PMMA) - from -20°C to 70°C
                       black cover (PMMA) - from -20°C to 70°C

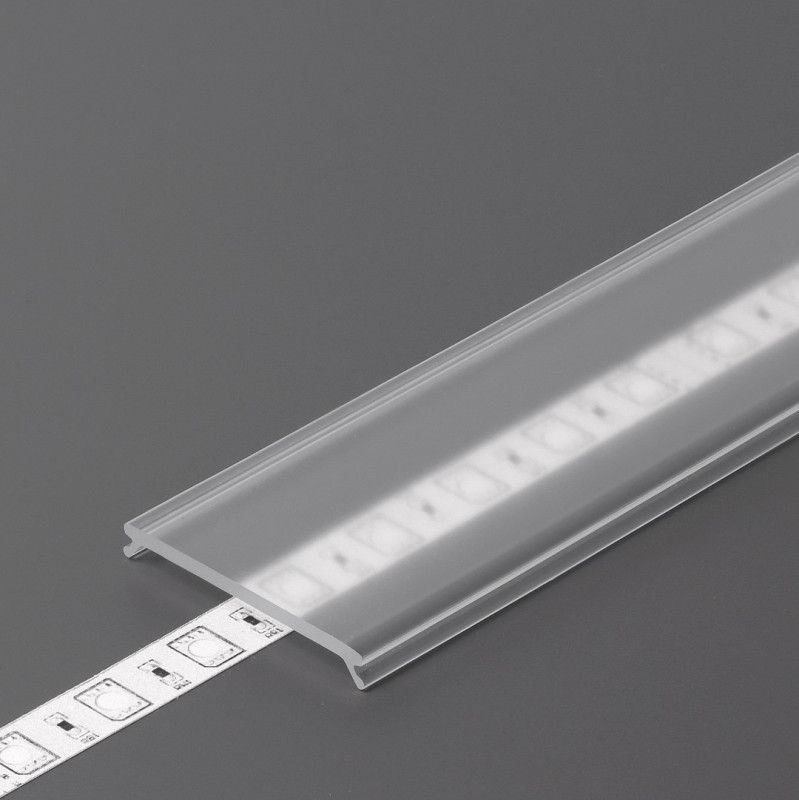

Transparency:  transparent cover (PMMA) - 95%

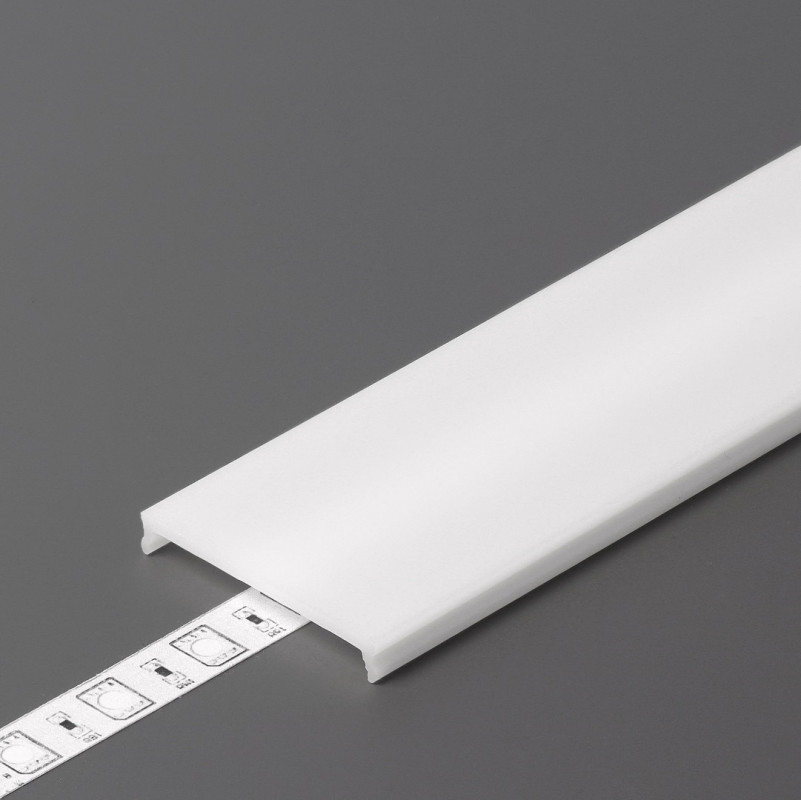

                      opal cover (PMMA) - 70%

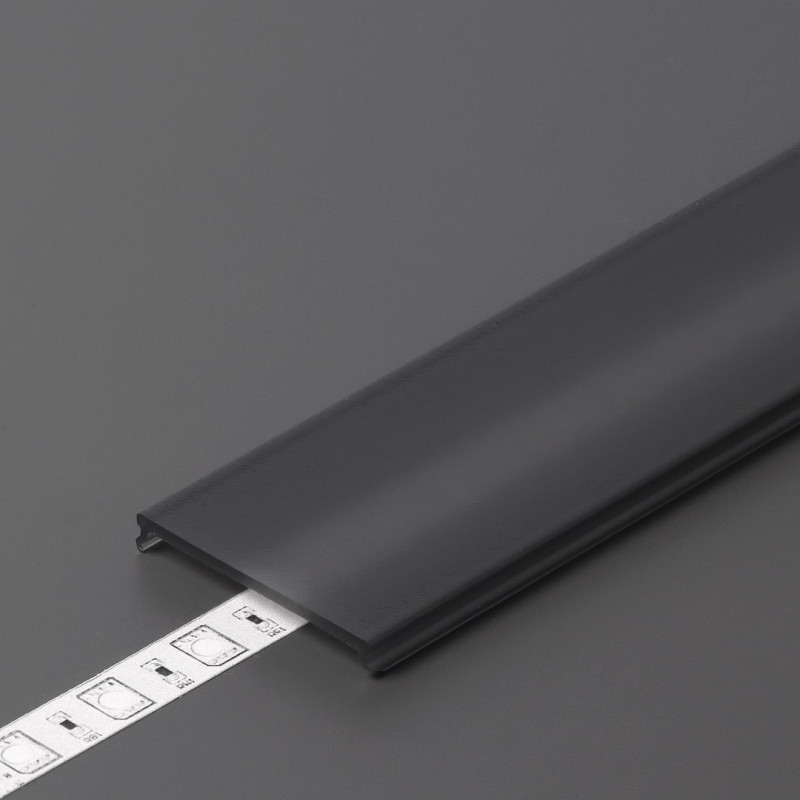

                      black cover (PMMA) - 40%
UV resistance:  transparent cover: yes
                      opal cover: yes
                      black cover: yes

Assembly:
fixed in the groove with fixing glue or fixing screws
profile fastening wings covered with gypsum plaster

Package includes:
1 x 10-15cm LED aluminium channel (LED strip light is NOT included)
1 x 10-15cm cover/diffuser

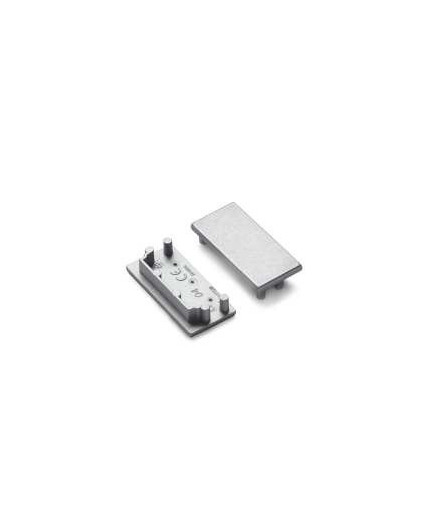

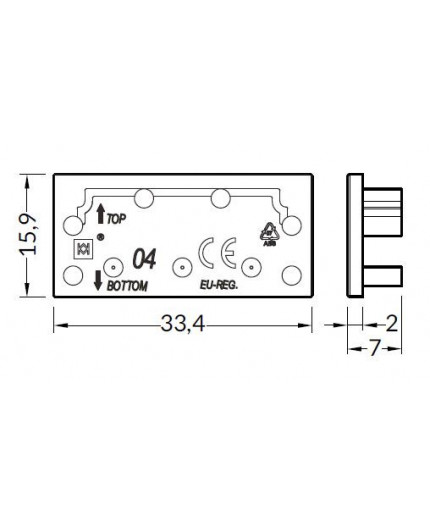

Option (add if needed): pair of end caps

This product is suitable for domestic and commercial projects.

Designed and made in the EU.
