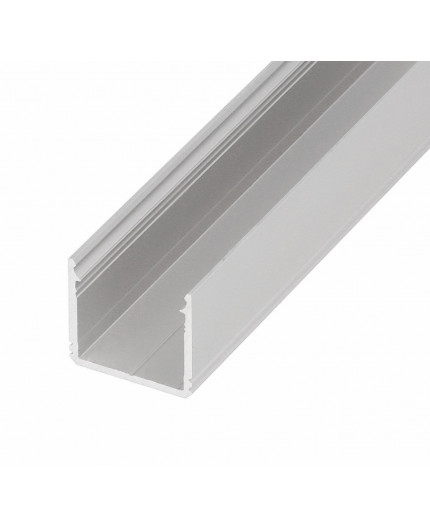

Sample of T22H LED profile (anodized, silver), 18mm x 18mm, set with cover

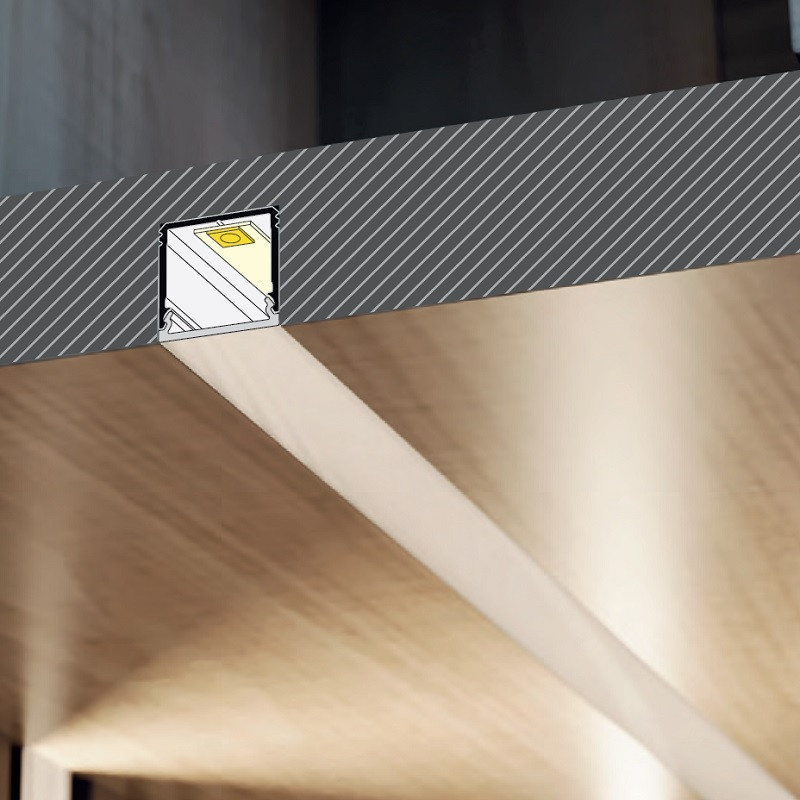

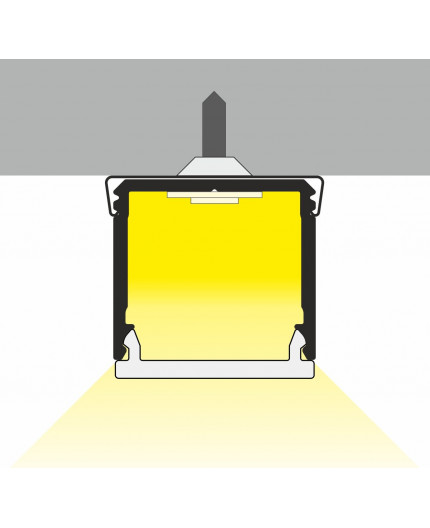

Sample of T22H - surface / recessed mount LED aluminium U-profile for general lighting
Suitable for LED strips up to 14mm wide.
Lenght:10-15cm

Designed and made in the EU.


Why do you need to use our aluminium channel?:
- Gives LED strips a finished look.
- Effectively protects and extends the lifespan of LEDs.
- Produces high-quality light for professional, decorative and accent lighting purposes.
- Makes installation of LED strips quick and easy.
- Can be cut and customized to suit any project.

Features:
1. The extrusion is designed for <14mm flexible or rigid LED strips

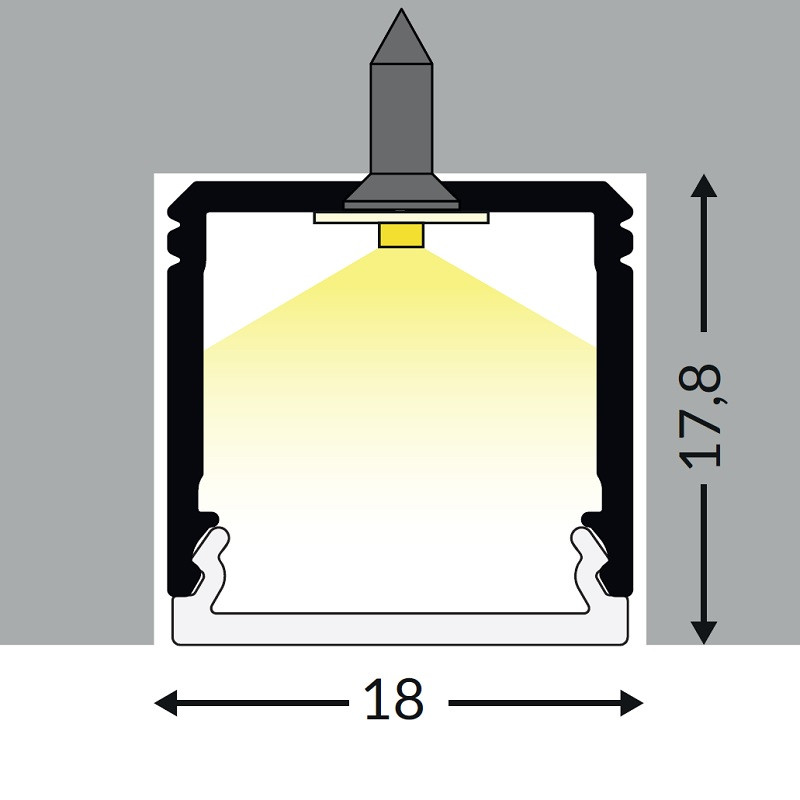

2. For surface mount.
3. The aluminium channel is widely used as interior lighting.
4. Easy Installation with all needed accessories (cover, end caps) .

Specifications:

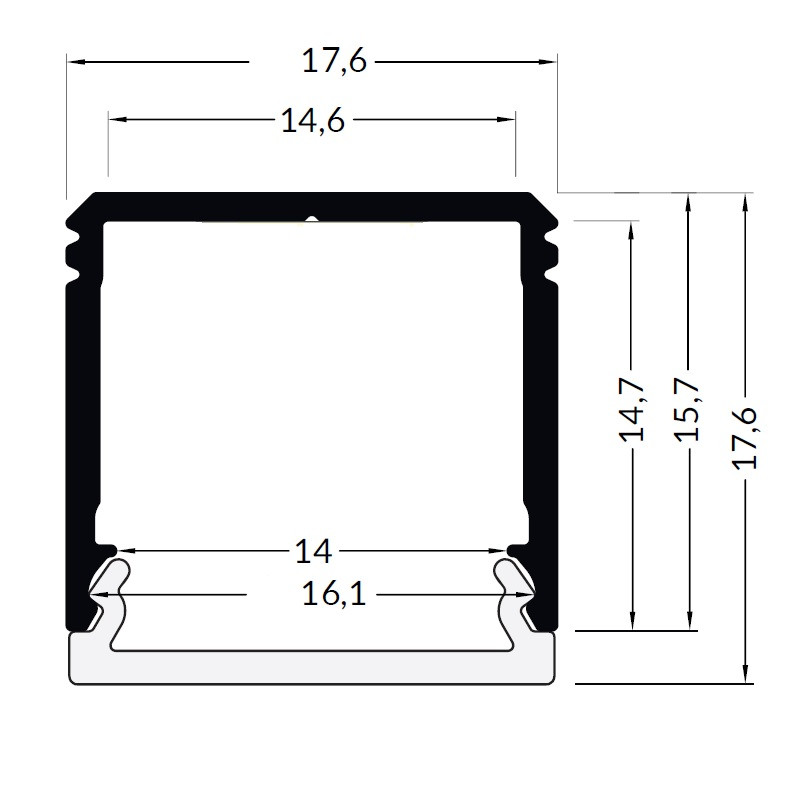

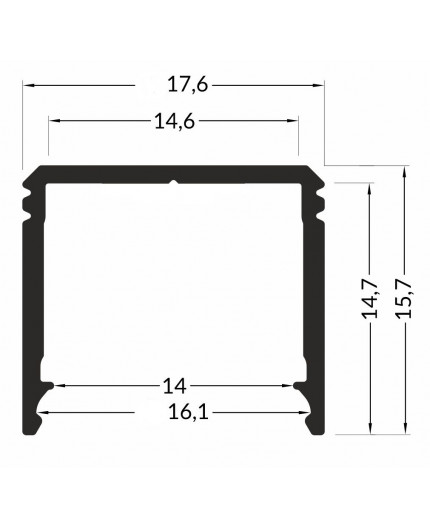

Overall size: 17.6mm x 17.6mm (W*H)
Inner width: 14.6mm
Length: 10-15cm
Material: High-Quality Aluminium
Finish: silver, anodized
Waterproof type: Non-waterproof
Compatible with LED strip light width up to 14mm

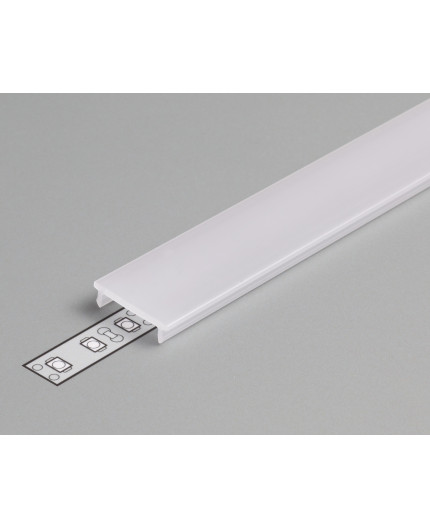

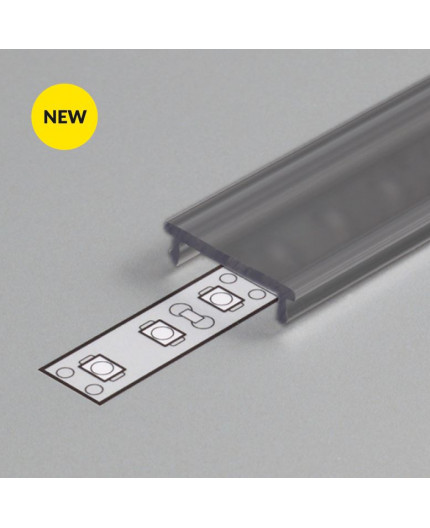

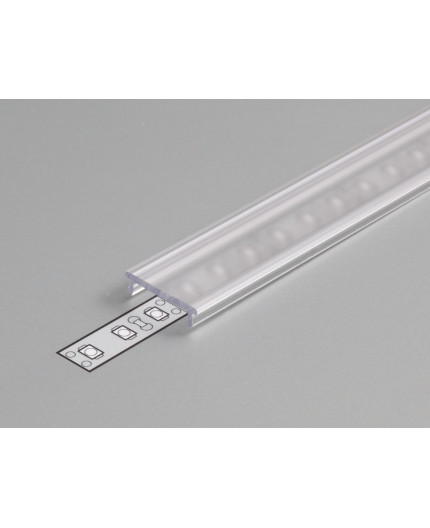

Cover/diffuser: transparent, opal, or black (type: click)
Working temp.: transparent cover (PMMA) - from -20°C to 70°C
                       opal cover (PMMA) - from -20°C to 70°C
                       black cover (PMMA) - from -20°C to 70°C
Transparency:  transparent cover (PMMA) - 95%
                      opal cover (PMMA) - 70%
                      black cover (PMMA) - 40%
UV resistance:  transparent cover: yes
                      opal cover: yes
                      black cover: yes

Set includes:
1 x 10-15cm LED aluminium extrusion (LED strip is NOT included)
1 x 10-15cm diffuser/cover

Additional accessories (add if needed):

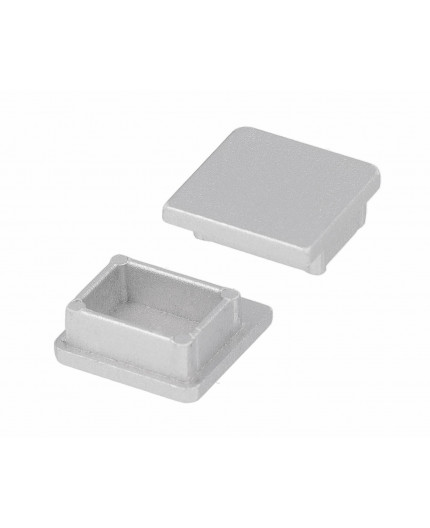

2 x end caps

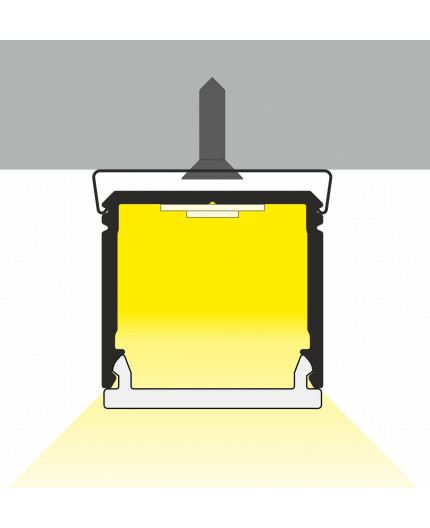

Note 1: Mounting clips are sold as separate articles.
Note 2: If you need extra end caps, covers/diffusers, etc., it is possible to order them separately too.

This product is suitable for domestic and commercial projects.
