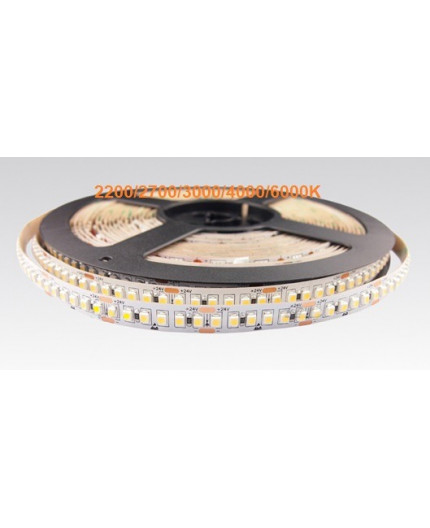

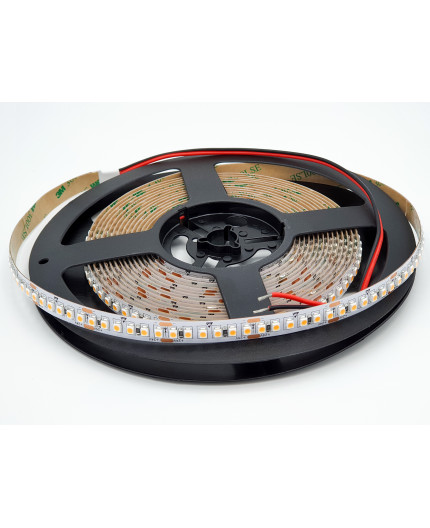

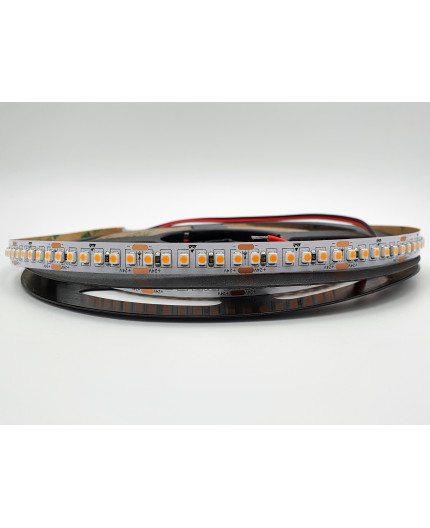

24VDC LED tape warm white 2700K 14.4W/m 180LED/m 5m (72W) IP20 SMD3528
24VDC LED tape warm white 2700K 14.4W/m 180LED/m 5m (72W) IP20 SMD3528
24VDC LED tape warm white 2700K 14.4W/m 180LED/m 5m (72W) IP20 SMD3528
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
24VDC LED tape warm white 2700K 14.4W/m 180LED/m 5m (72W) IP20 SMD3528
24VDC LED tape warm white 2700K 14.4W/m 180LED/m 5m (72W) IP20 SMD3528
24VDC LED tape warm white 2700K 14.4W/m 180LED/m 5m (72W) IP20 SMD3528

24VDC LED tape warm white 2700K 14.4W/m 180LED/m 5m (72W) IP20 SMD3528

50.00 VAT excl.
£60.00 VAT incl.

24VDC LED Strip, warm white 2700K, 180 LEDs/m, 14.4W/m, length: 5m (72W, 900LEDs), white PCB (10mm), 1200 lm/m, IP20, SMD3528 with connection wires at both ends

Volume discounts

Quantity Unit price You Save
5 £50.00 £2.50
10 £50.00 £10.00
20 £50.00 £30.00
50 £50.00 £100.00
100 £50.00 £250.00
9 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

24VDC LED tape, strip warm white 2200K, 14.4W/m, 180LED/m, 5m (72W, 900 LED), IP20, SMD3528

Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Quantity/m: 180 LEDs per meter
Power: 14.4W/m
CCT: 2700K (warm white)
Brightness: approx. 1200lm/m
Beam angle: 120degree
Total length (roll): 5m (72W, 900LEDs)
Degree of protection: IP20 (non-waterproof)
PCB: 10mm wide white PCB
Inst.: 10mm wide self-adhesive 3M tape backing
Cutting points: at 6 LED (33.3mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Warranty: 3 years
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac)

ML-F3528A90-WW-24
9 Items

Data sheet

Light colour
White
LED quantity
180LEDs/m
Colour temperature (CCT)
2700K
Ingress Protection (IP)
IP20 (non-waterproof)
PCB width
10mm
Length
5.0m / 5000mm
Watts per metre
14.4W/m
Features
Single Colour
Input voltage
24VDC
CRI
≥80
Version
Constant Voltage (CV)
LED chip
SMD3528
Cutting
33.33mm
Lumens per metre
1000 - 1999 lm/m
Beam angle
120 degree
