24VDC constant current LED tape, 3000K, 9.6W/m, 120LED/m, 15m, SMD3528

Name: 24VDC constant current LED tape, 3000K, 9.6W/m, 120LED/m, 15m, SMD3528
Brand: Marc LED Ltd
SKU: ML-F3528A60-W-24C-15
Price: 180 GBP
Availability: InStock

150.00 VAT excl.

£180.00 VAT incl.

Premium, 24VDC Constant Current LED Strip, 3000K, CRI≥80 120 LEDs/m, 9.6W/m, length: 15m (144W, 1800LEDs), PCB 10mm, 840lm/m, IP20, SMD3528 with connection wires at both ends

Volume discounts

Quantity	Unit price	You Save
5	£180.00	£9.00
10	£180.00	£36.00
20	£180.00	£108.00
50	£180.00	£360.00
100	£180.00	£900.00

In stock 5 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Description
Product Details

24VDC constant current LED tape, 3000K, 9.6W/m, 120LED/m, 15m (144W, 1800 LED), IP20, SMD3528

Temperature Sensor Constant Current LED Strip from PREMIUM range.
Constant current version: with stable current, suitable for high-quality requirements projects.
With constant current IC for each segment: NO need of constant current driver.
DC24V input: can work with any DC24V PWM control system or dimmer, such as RF, 0-10V, DALI, DMX512, etc.
It can work with unstable power supply and without damage.
With a temperature sensor: it can lower the current to protect itself when the temperature is too high.
Brightness uniform: with the same brightness from the first end to the last end
DC24V version: can work with DC21V to DC30V input (the same current)
The voltage drop will not affect the brightness uniform of LED strips (DC21V-DC30V input)
The constant current LED strip is cuttable like the constant voltage LED strip

LED: CRI≥80 SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage (not included)
Quantity/m: 120 LEDs per meter
Power: 9.6W/m
Colour temperature (CCT): 3000K warm white
Brightness: approx. 840lm/m
Beam angle: 120 degree
CRI(Ra)≥80

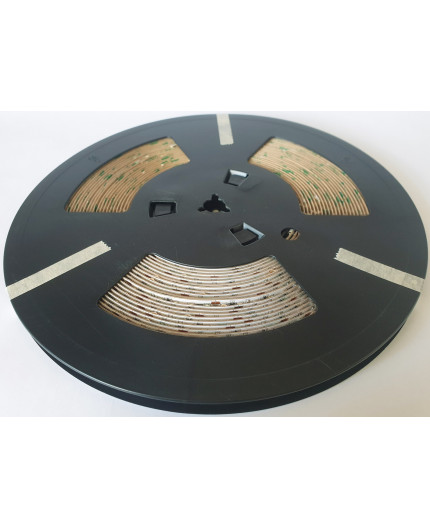

Total length (roll): 15m (144W, 1800LEDs)

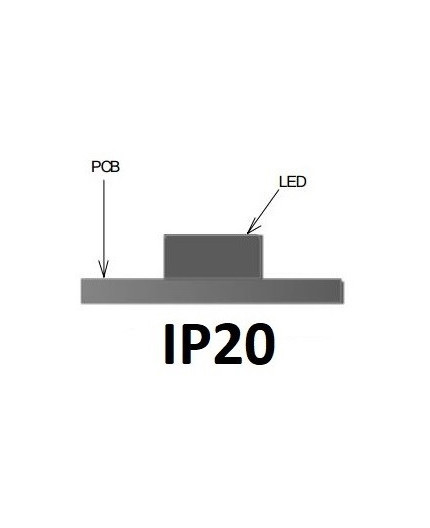

Degree of protection: IP20 (non-waterproof)
PCB: 10mm wide white PCB
Inst.: 10mm wide self-adhesive 3M tape backing

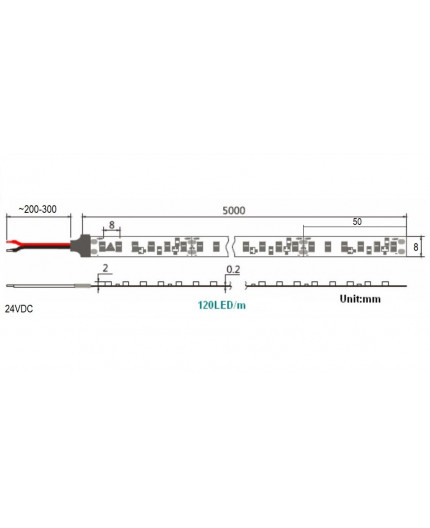

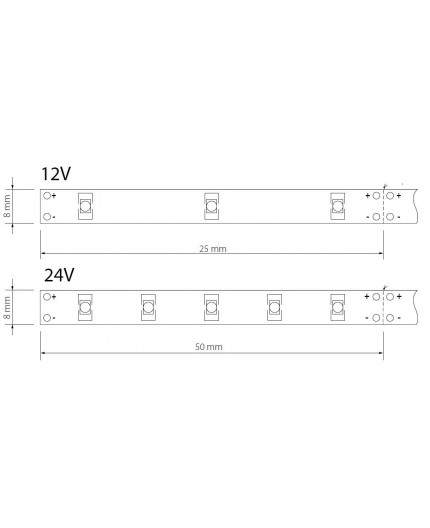

Cutting points: at 6 LED (50mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Warranty: 3 years
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac)

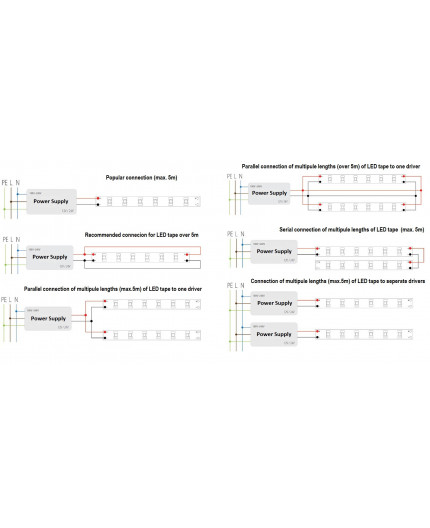

Adopt a suitable power supply to match the LED strips. The power of the LED power supply should be 20% bigger than the max power of LED strips in order to ensure the long-time performance of the power supply.
