Mini microwave motion sensor HF, IP20, max. load 100W

Mini microwave motion sensor (High Frequency) for luminaires, uses an active sensor to scan the detection zone by measuring changes in the echo reflected regardless of ambient temperature and is therefore ideal for presence detection in offices, classrooms, etc., where people are “sitting still”. Version with reduced external dimensions.

Features:
- On/off control function
- Automatic switching based on motion and light level

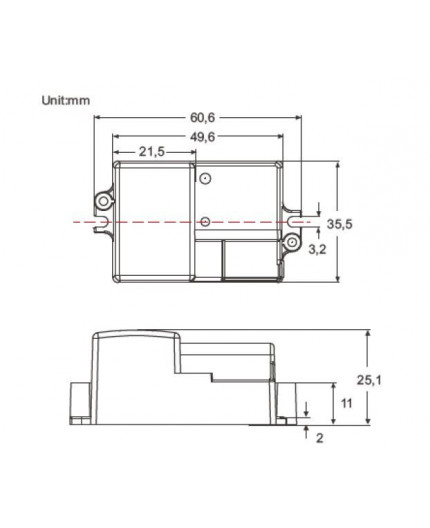

- Dimension: L 49,6 x W 35,5 x H 25,1 mm, suitable to fit within most luminaires.

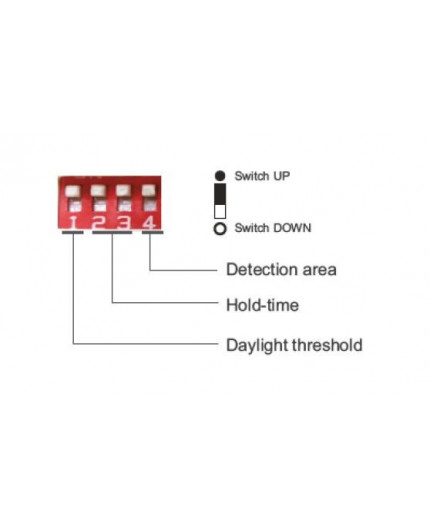

- Hold time, detection area and daylight sensor can be precisely set via DIP switch.

Specifications:
Operating voltage:      220-240VAC, 50Hz/60Hz
Switching capacity:     Max. 100W
Standby power:          ≤0.5W
Detection area            50%/100%
Hold time:                  5s/60s/3min/10min
Daylight threshold:     30Lux/Disable
Microwave frequency: 5.8GHz±75MHz
Microwave power:       <0.3mW
Mounting height:         2.5-5m/6.56-16.4ft (ceiling mounted)
Detection range:          Max. ø12m/39.36ft (ceiling mounted)
Operating temperature:-25°C~+60°C
Motion detection:         0.5~3m/s
IP rating:                     IP20
Warranty:                    3 years
