2.95 VAT excl.
£3.54 VAT incl.

Sample of Surface mount Wall / Ceiling LED aluminium extrusion for universal lighting applications - model TCW2 painted, white.

Designed and made in the EU.

diffuser

end caps

Mounting Clips

Volume discounts

Quantity Unit price You Save
5 £3.54 £0.18
10 £3.54 £0.71
20 £3.54 £2.12
50 £3.54 £7.08
100 £3.54 £17.70
99 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

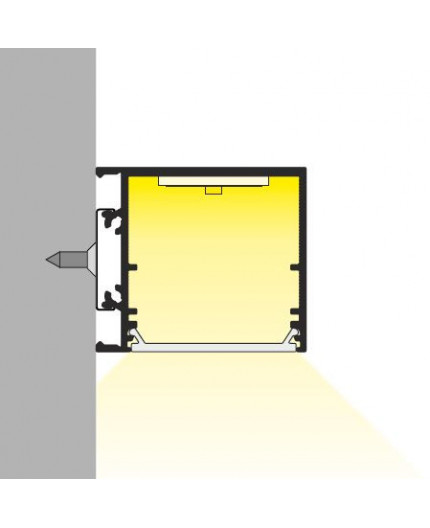

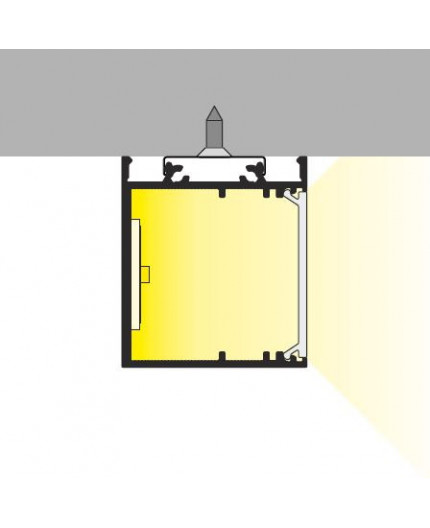

TCW2 - surface mount LED aluminium. Designed to be mounted on a wall or on a ceiling.
Length: 10-15cm

Why are you need to use our aluminium channel?
- Gives LED strips a finished look.
- Effectively protects and extends the lifespan of LEDs.
- Produces high-quality light for professional, decorative and accent lighting purposes.
- Makes installation of LED strips quick and easy.
- Can be cut and customized to suit any project.

Features:
1. The extrusion is designed for <29mm flexible or rigid LED strips
2. For surface mount.
3. The aluminium channel is widely used as interior lighting.
4. Easy Installation with all needed accessories (cover, end caps).

Specifications:

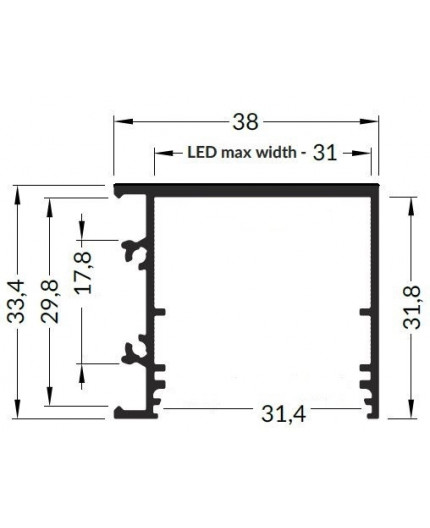

Overall size: 31.8mm x 38mm (W*H)
Inner width: 31mm
Length: 10-15cm
Material: High Quality Aluminium
Finish: white, painted
Waterproof type: Non waterproof
Compatible with led strip light width up to 30mm

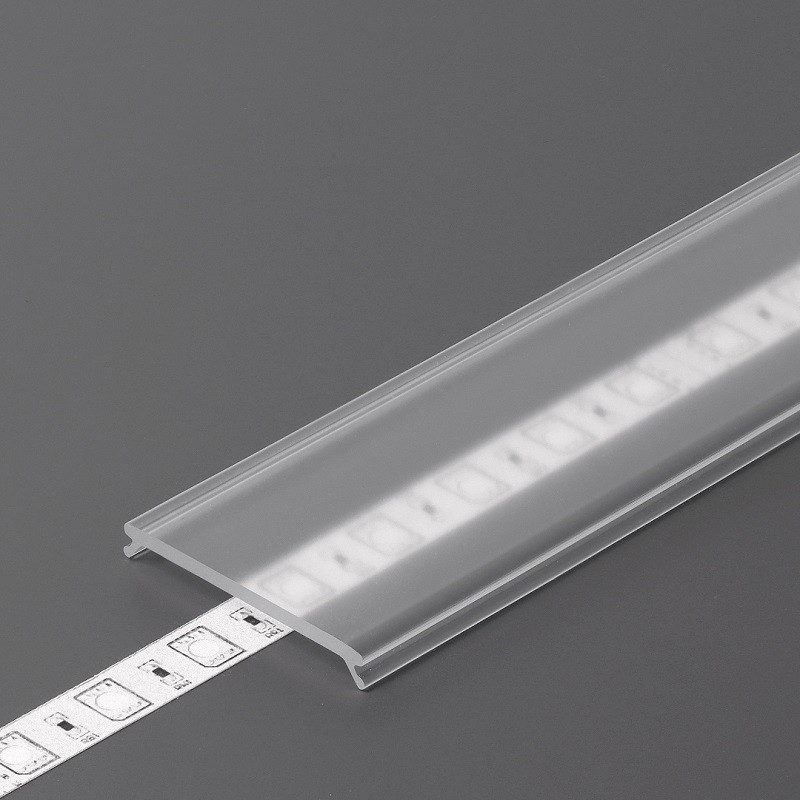

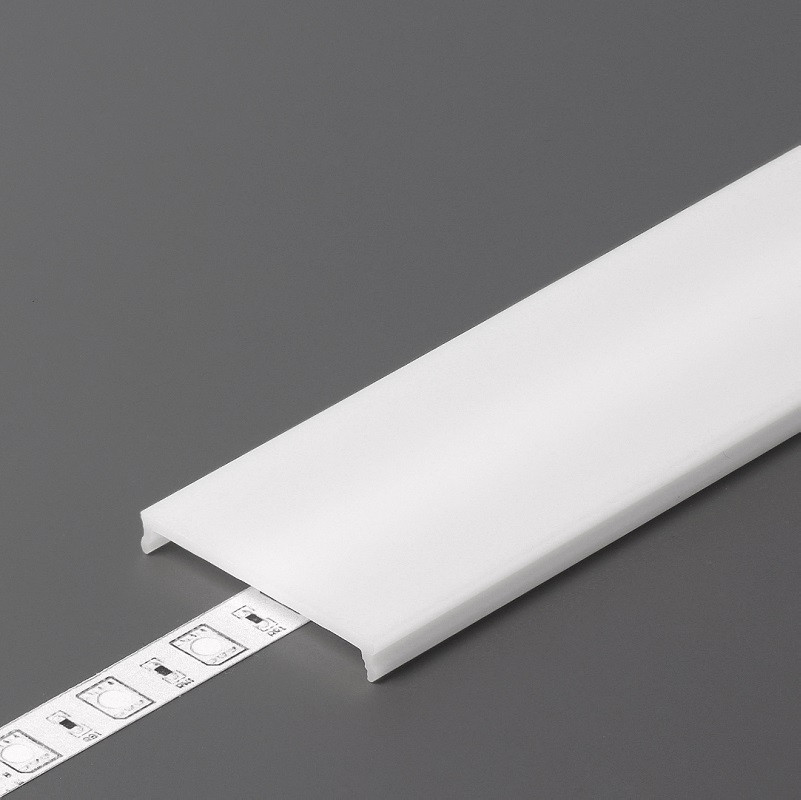

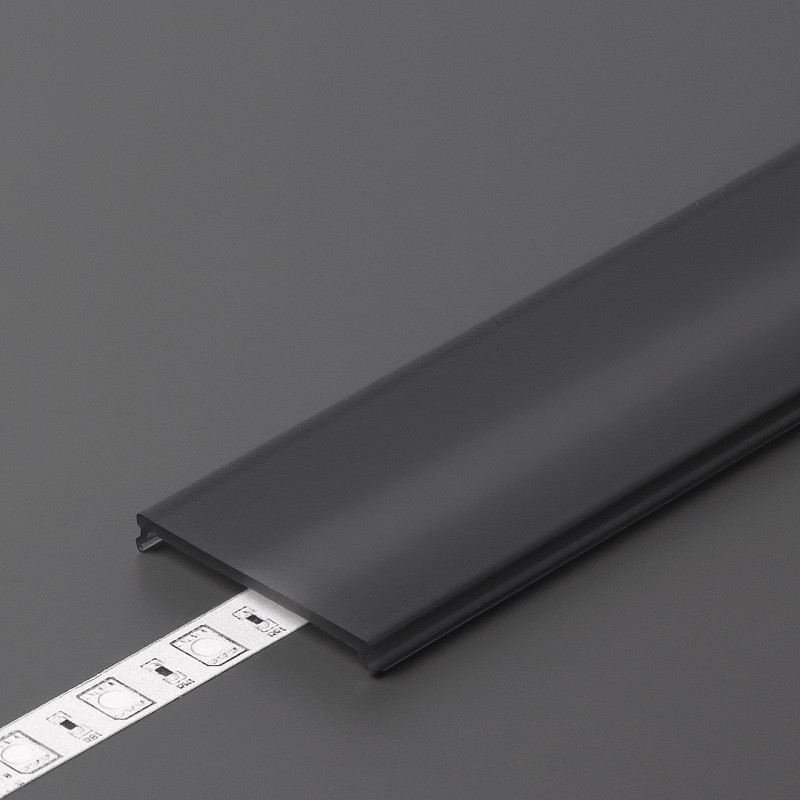

Cover/diffuser (click): transparent, opal, or black
Working temp.: transparent cover (PMMA) - from -20°C to 70°
                       opal cover (PMMA) - from -20°C to 70°C
                       black cover (PMMA) - from -20°C to 70°C
Transparency:  transparent cover (PMMA) - 95%
                      opal cover (PMMA) - 70%
                      black cover (PMMA) - 40%
UV resistance:  transparent cover: yes
                      opal cover: yes
                      black cover: yes

Set includes:
1 x 10-15cm LED aluminium extrusion (LED strip is NOT included)
1 x 10-15cm diffuser/cover

Additional accessories (add if needed):

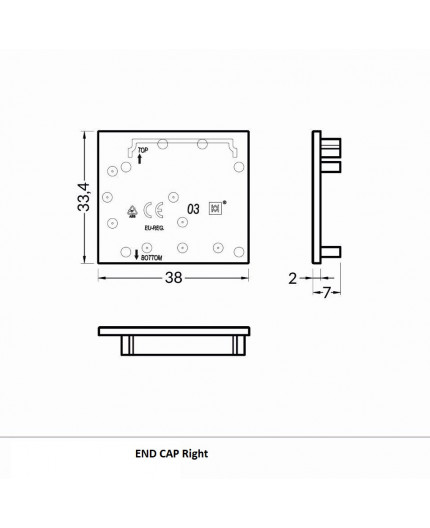

2 x end cap (one left and one right)

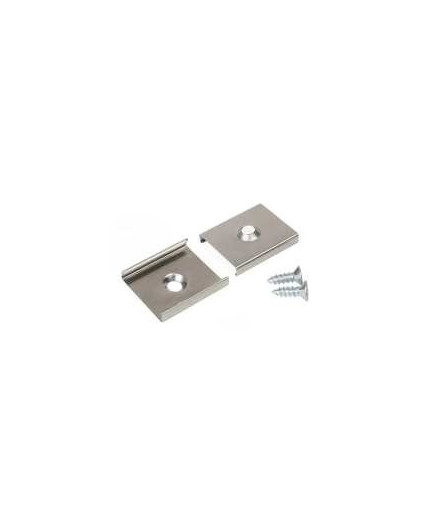

Mounting clips

Note 1:
Mounting clips are sold as separate articles in our e-shop.
Note 2:
If you need extra end caps, covers/diffusers, etc., it is possible to order them separately in our e-shop.

A continuous line of light effect with opal cover and LED tape 120LEDs/m.

This product is suitable for domestic and commercial projects.

Designed and made in the EU.

ML-TCW2W-SAMPLE
99 Items

Data sheet

Applications
Ceiling & Wall
Decorative
Main
Mounting Method
Surface mount
Length
SAMPLE
Finish
White painted
