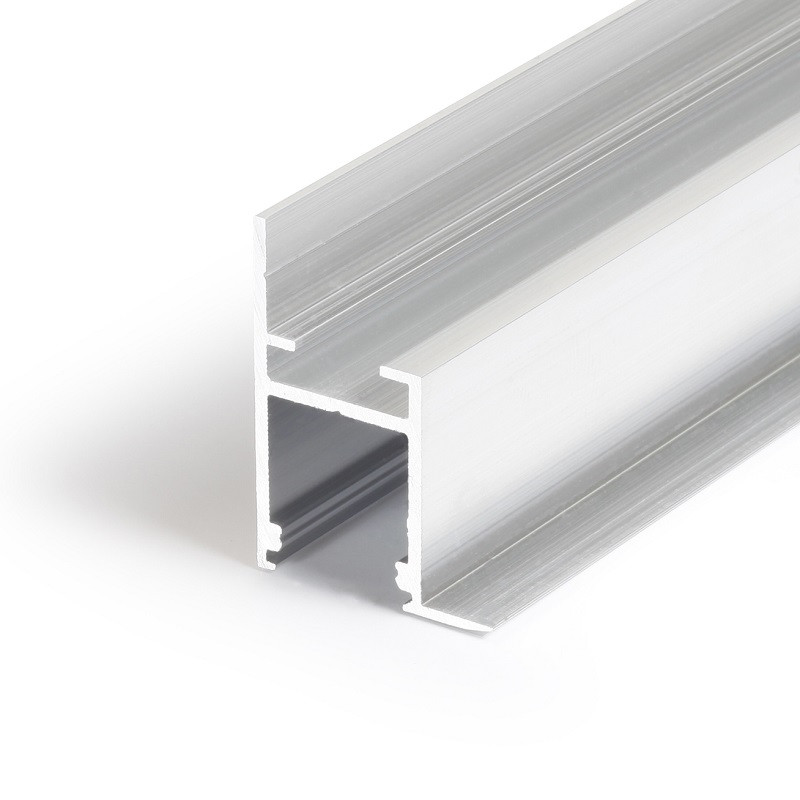

Sample of Alu-Ceiling LED profile C1 (raw alu) for plasterboard, set with diffuser

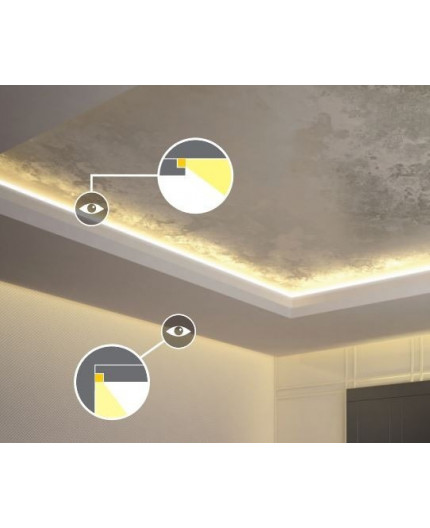

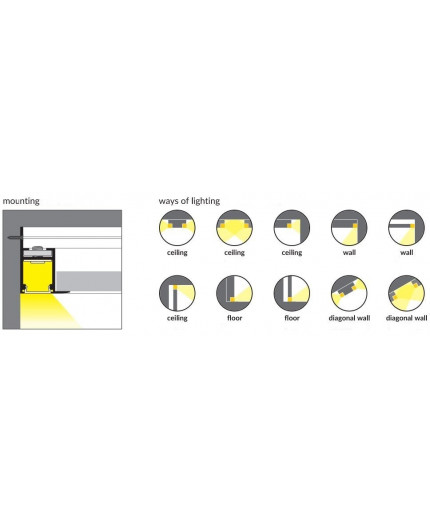

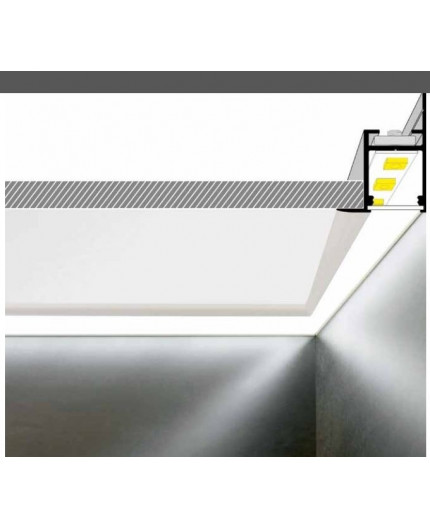

Wall and ceiling wash type LED profiles - sample.

Length: 10-15cm

Why are you need to use our aluminium channel?:
- Gives LED strips a finished look.
- Effectively protects and extends the lifespan of LEDs.
- Produces high-quality light for professional, decorative and accent lighting purposes.
- Makes installation of LED strips quick and easy.
- Can be cut and customized to suit any project.

Features:
1. The extrusion is designed for <14mm flexible or rigid LED strips

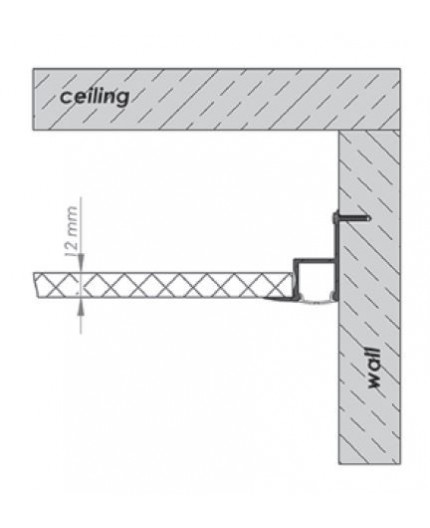

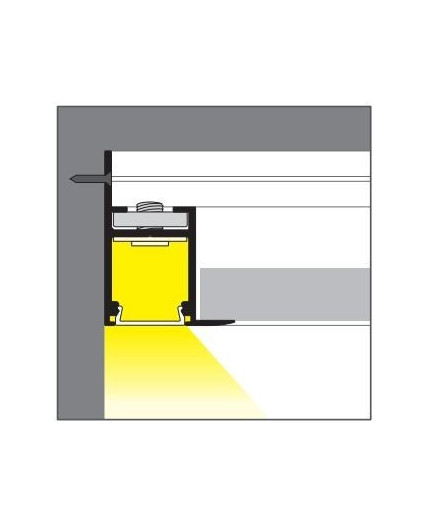

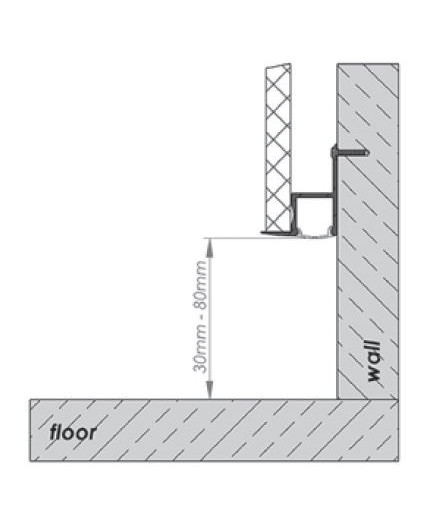

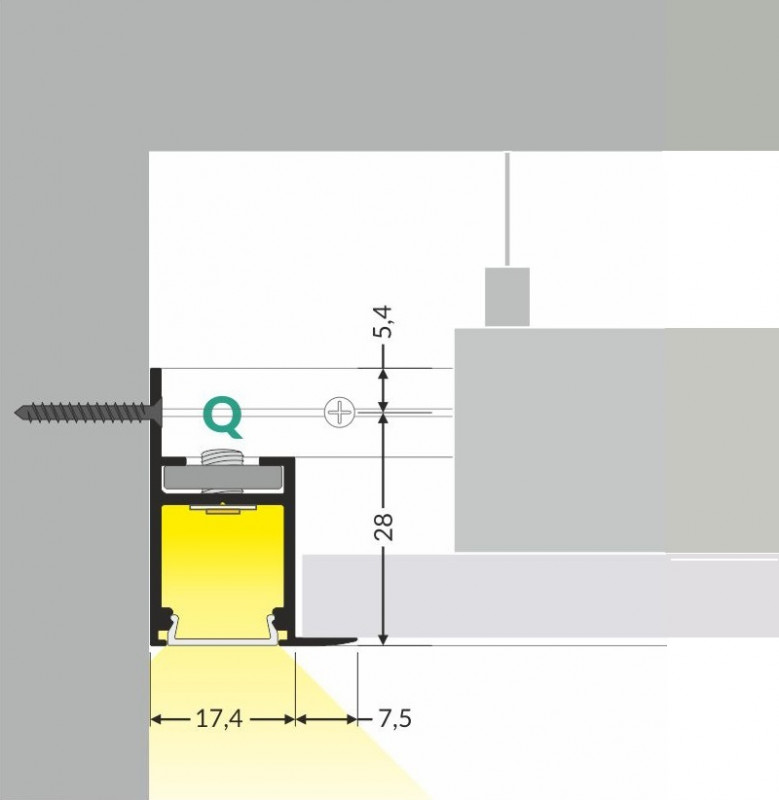

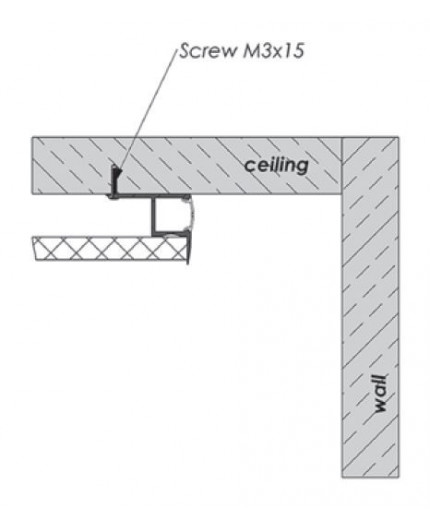

2. For recessed mount.
2. The aluminium channel is widely used as interior lighting.
3. Easy Installation with all needed accessories (cover, connectors).

Specifications:

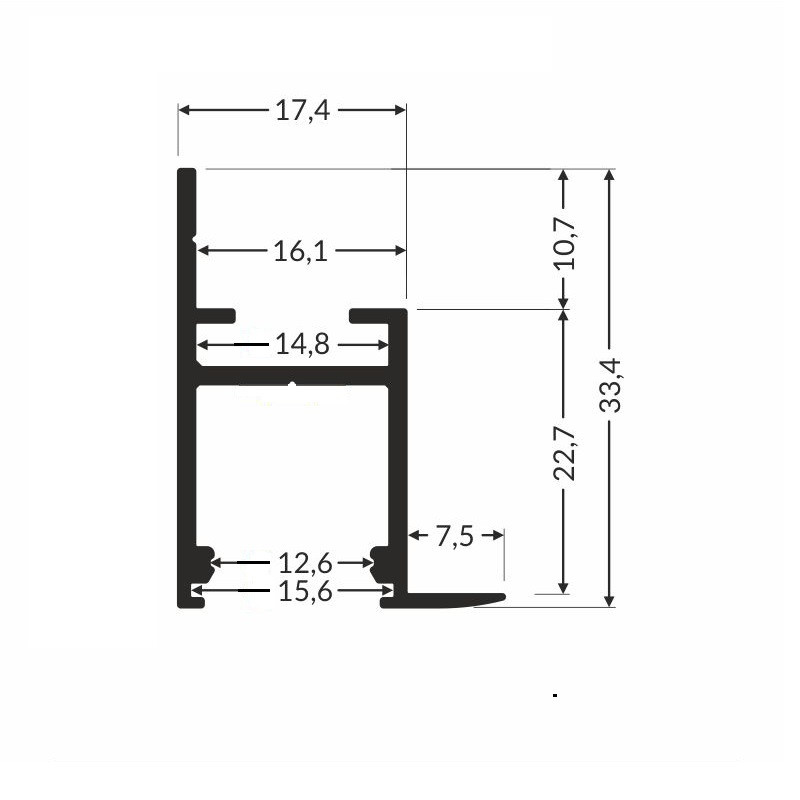

Overall size: 24.9mm x 33.4mm (W*H)
Inner width: 14.8mm
Length: 10-15cm
Material: High-Quality Aluminium
Finish: raw aluminium
Waterproof type: Non-waterproof
Maximum width of LED strip: 14 mm

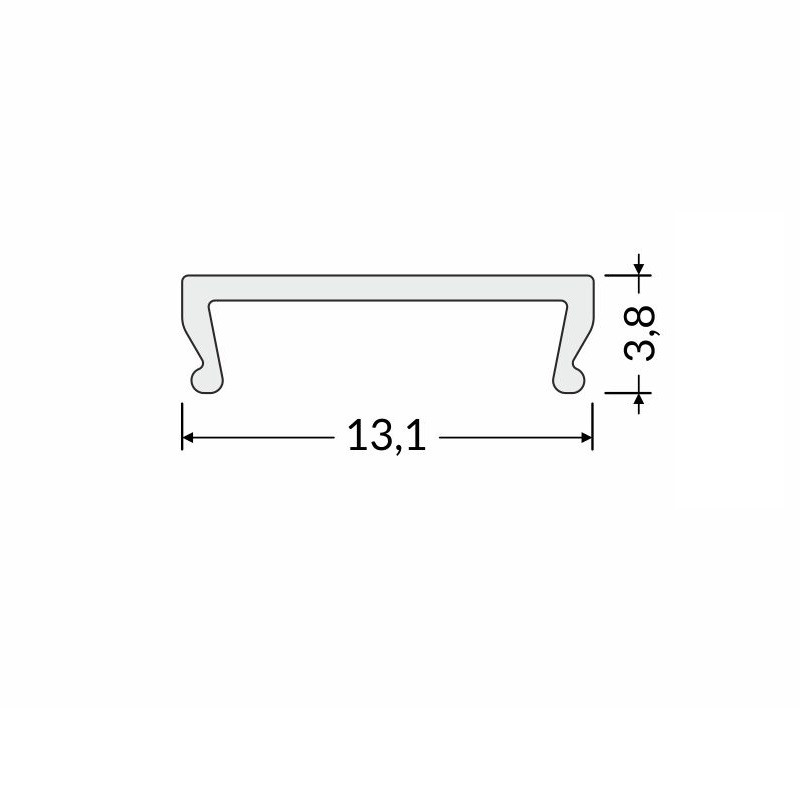

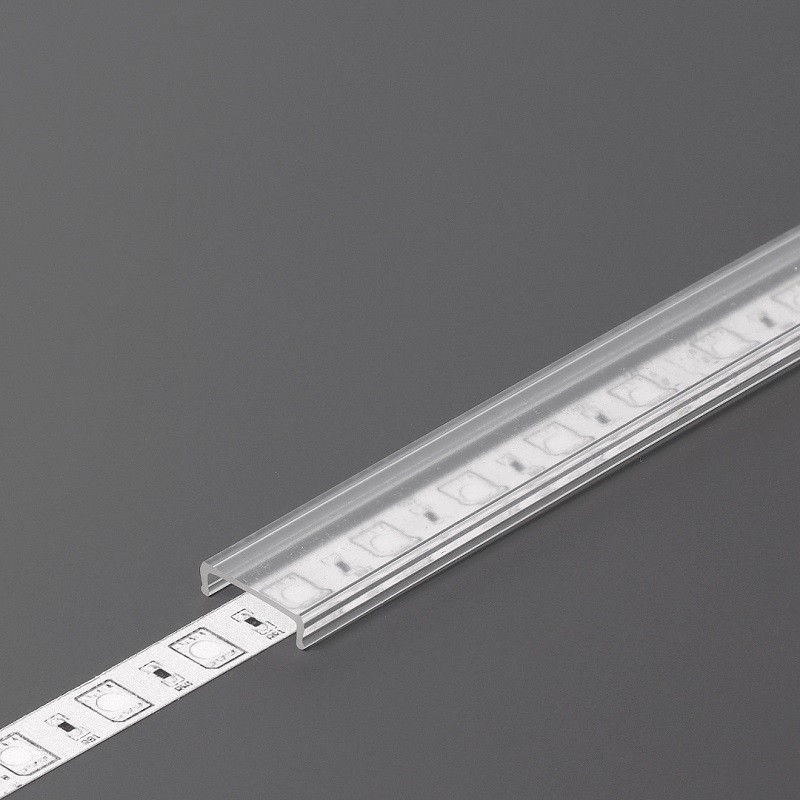

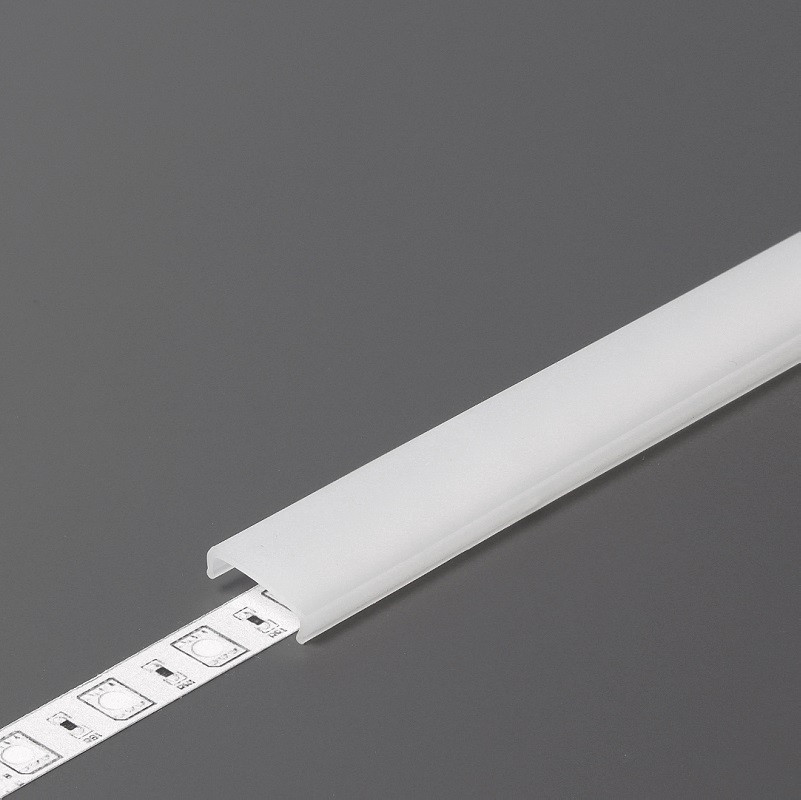

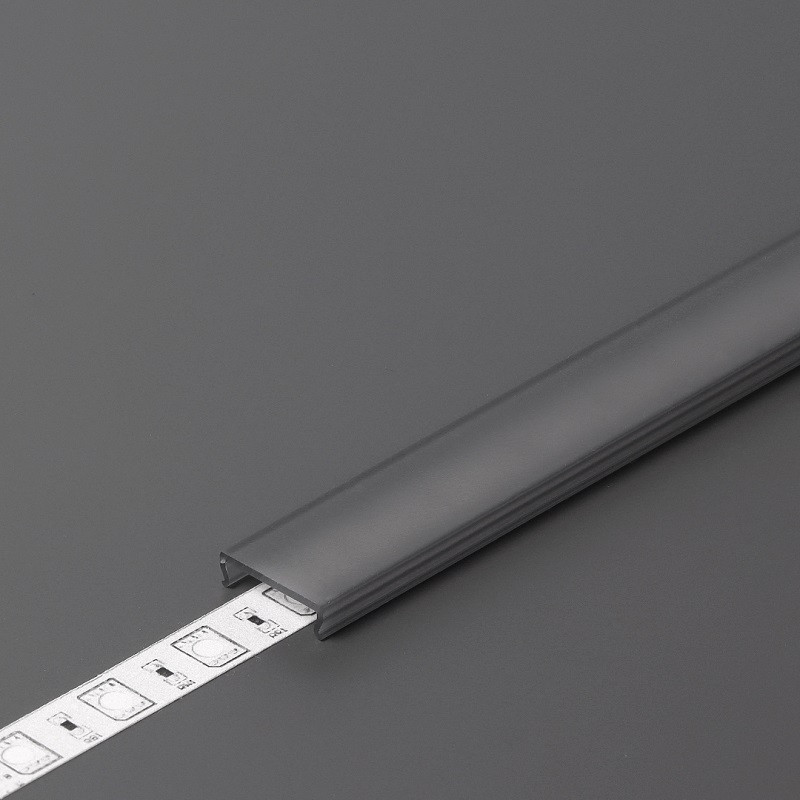

Cover/diffuser: transparent, opal, or black (type: click)
Working temp.: transparent cover (PMMA) - from -20°C to 70°C
                       opal cover (PMMA) - from -20°C to 70°C
                       black cover (PMMA) - from -20°C to 70°C
Transparency:  transparent cover (PMMA) - 95%
                      opal cover (PMMA) - 70%
                      black cover (PMMA) - 40%
UV resistance:  transparent cover: yes
                      opal cover: yes
                      black cover: yes

Set includes:
1 x 10-15cm LED aluminium extrusion (LED strip is NOT included)
1 x 10-15cm diffuser/cover

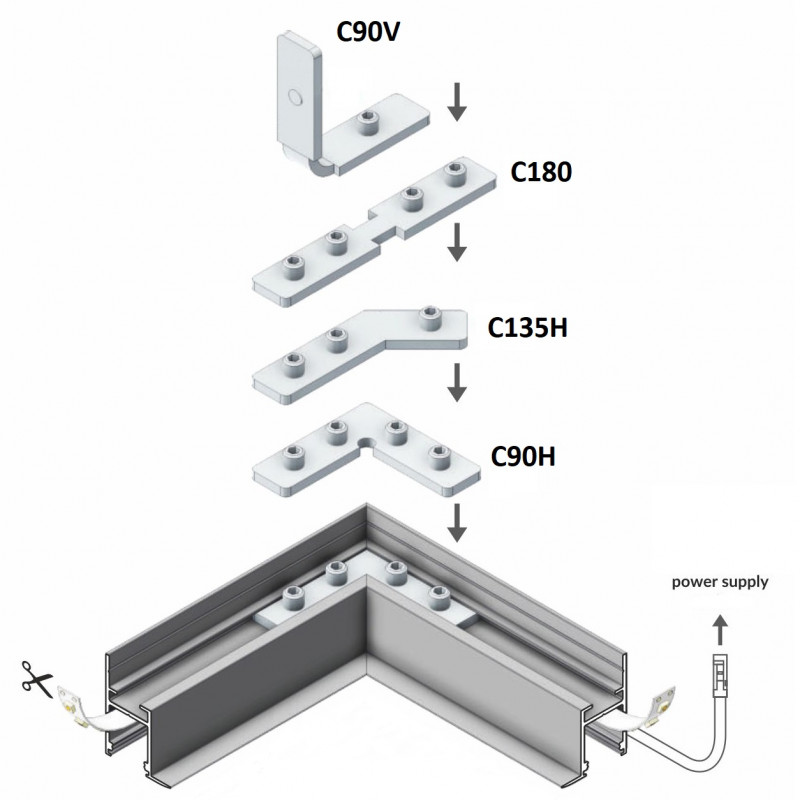

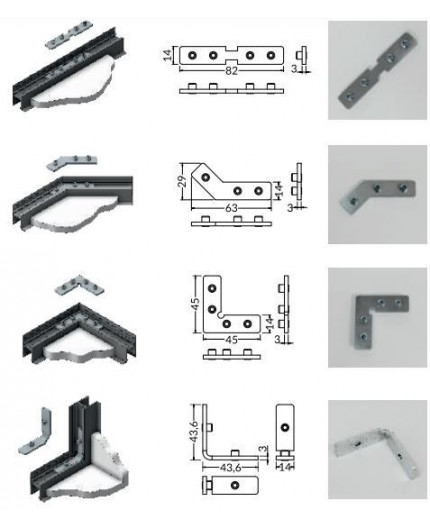

Additional accessories (add if needed):
- connector C90H,
- connector C90V,
- connector C135H,
- connector C180

Note: If you need extra covers/diffusers, etc., it is possible to order them separately in our e-shop.

This product is suitable for domestic and commercial projects.

Note: LED strips NOT included

Designed and made in the EU.
