2 Pin 12-Function Quick Connector for 10mm IP20 Single Colour COB/SMD Tape
1.00 VAT excl.
£1.20 VAT incl.
Transparent connector for IP20 single-colour (2-pin) COB/SMD LED strip 10mm wide; simple and easy installation.
Suitable for multiple connection types and shapes
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

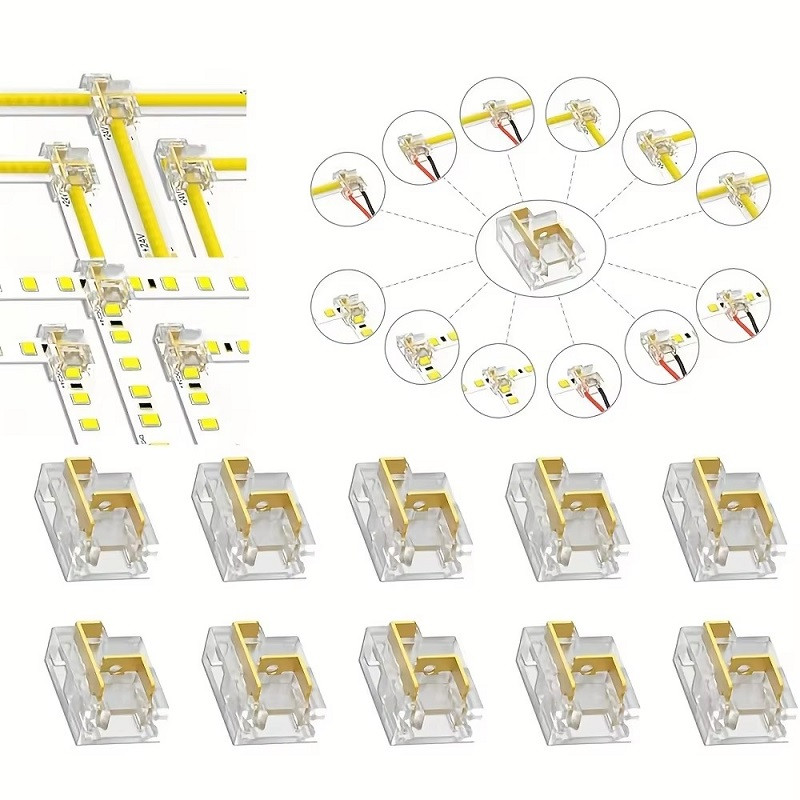

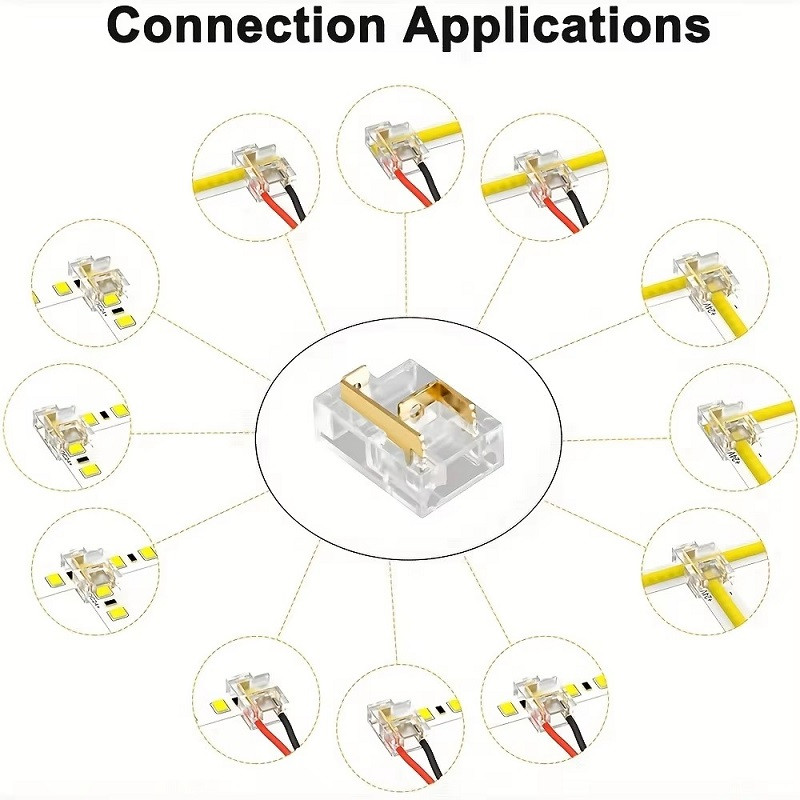

This connector offers 12 types of connections, a great solution for 10mm single-colour LED strips.
- Simple installation, no soldering required
- Reduced installation time
- Low-profile, compact design
- Transparent, no colour change, no CCT change
- Extremely vibration-proof
- No visible dark areas (smooth light)
- Suitable for COB/SMD LED tapes IP20, Single Colour, 2-pin
- Width of PCB: 10mm
- Dimensions: 14mmx11.5mmx5mm (LxWxH)
- Max. voltage: 36V
- Max current: 5A
- Wire Gauge: 20~22AWG (OD ≤ 1.80mm)
- Ambient temp.: -20°C to 70°C
- Working humidity: 10%-90%RH
- Protection Rating: IP20
ML-CN-TL10
50 Items
Data sheet
- PCB width
- 8mm
- Accessories
- Connectors
- LED chip
- COB
SMD335
SMD2016
SMD2216
SMD2835
SMD3014
SMD3528
SMD5050
SMD5630 - Brand
- Marc LED Ltd
- Light Colours
- Mono Colour
