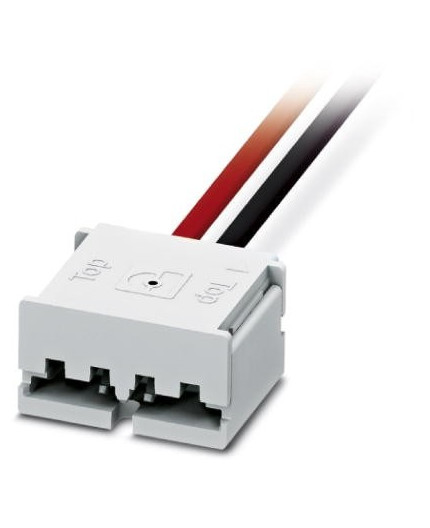

PCB Connector 10mm Phoenix Contact, PTF 0,3/ 2-WB-10-H – 1707562

1.82 VAT excl.
£2.18 VAT incl.

Contact PCB connector Suitable for LED flexible tape/strips 10mm wide and single colour.

Number of positions: 2, Pitch: 2.4 mm
Colour: White
Contact surface: Tin
Approvals: UL Recognized

Volume discounts

Quantity Unit price You Save
5 £2.18 £0.11
10 £2.18 £0.44
20 £2.18 £1.31
50 £2.18 £4.37
100 £2.18 £10.92
7 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Contact PCB connector for LED flexible tape 10mm wide and single colour.

Printed-circuit board connector - PTF 0,3/ 2-WB-10-H - 1707562 (10mm PCB)

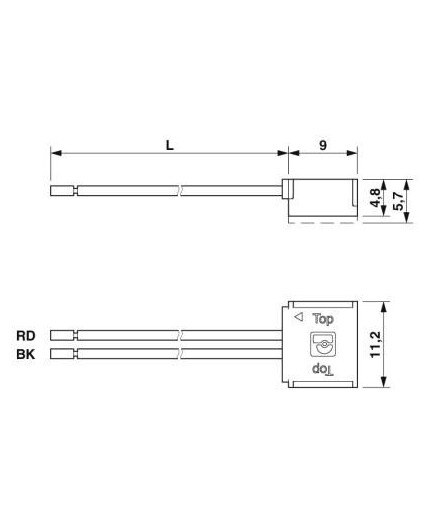

Dimensions
Length: 9mm
Heigh: 4.8mm
Width: 11.2mm
Pitch: 2.4mm

General:
Range of articles PTF 0,3/..-WB-H
Insulating material group IIIa
Rated voltage (III/3) 25 V
Rated voltage (III/2) 25 V
Rated voltage (II/2) 25 V
Nominal current IN 10 A
Nominal cross section 0.34 mm²
Maximum load current 10 A (Total current of all contacts)
Insulating material PBT
Inflammability class according to UL 94 V0
Number of positions: 2
L=500mm

Plug component, Nominal current: 10 A, Rated voltage (III/2): 24 V, Number of positions: 2, Pitch: 2.4 mm, Colour: white, Contact surface: Tin, Length of the punched-on cables: 500 mm, for flexible PCBs with a width of 10 mm and a permissible PCB thickness in the contact zone of 0.15 mm ... 0.3 mm

Compability with LED aluminium channels: fits into model P1, P2, P3, P4, PH2, KH2, P6.

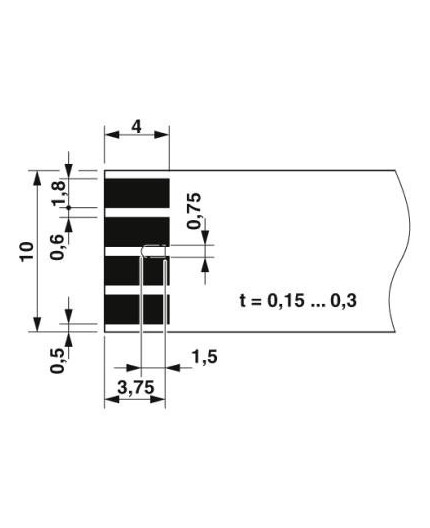

Note: Before purchase, please be sure that two middle connection point on this connector and on your LED strip will match together (see attached drawing with dimensions)

1707562
7 Items

Data sheet

Light colour
Mono Colour
PCB width
10mm
Brand
Phoenix Contact
