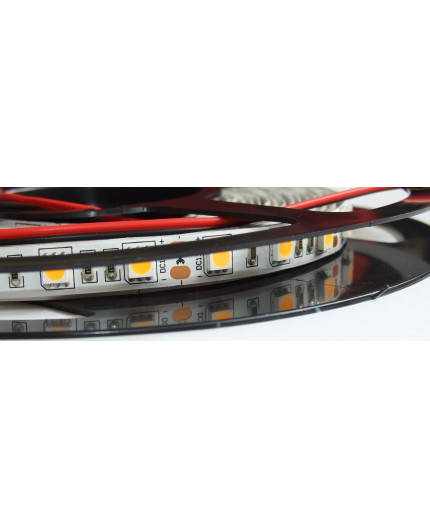

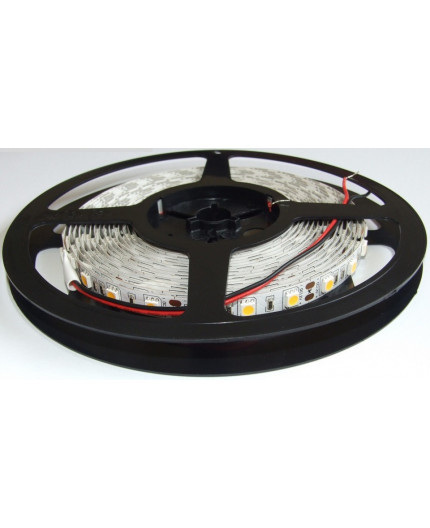

12VDC LED tape, warm white 2700K, 14.4W/m, 60LED/m, IP20, 5m, SMD5050
12VDC LED tape, 2700K warm white, 60 LED/m, 14.4 W/m, 10mm white PCB, IP20, length: 5m (72W, 300LEDs), with connection wires at both ends
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
12VDC LED tape, warm white 2700K, 14.4W/m, 60LED/m, IP20, 5m (72W, 300 LED), SMD5050
LED chip: SMD5050
Input voltage: 12VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 60
Power: 14.4W/m
Colour temperature (CCT): 2700K warm white
Brightness: approx. 1160 lm/m
Beam angle: 120 degree
CRI(Ra)≥80
Energy Efficiency Rating: A+

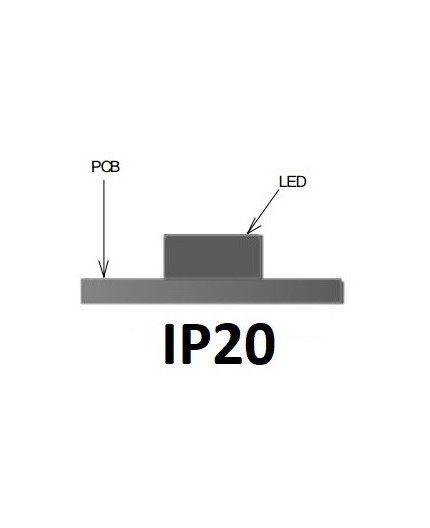

Degree of protection: IP20 (non-waterproof)

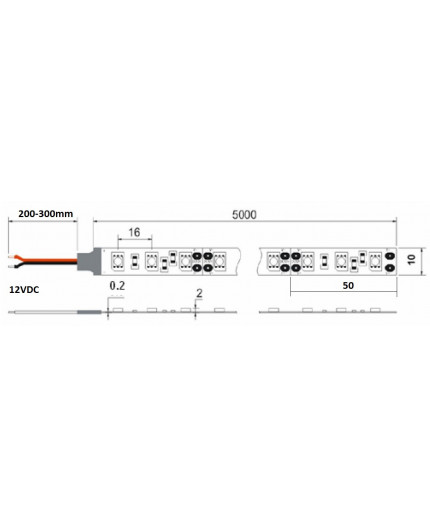

Width of PCB: 10mm
Installation: 10mm wide self-adhesive 3M tape backing
Cutting points: at 3 LED (50mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Average life span: 50000h
Packing (total length): 5m (72W, 300LEDs)
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac) (if the LED tape is connected to the suitable dimmable LED power supply, additional dimmer switch required)
Note:
Adopt a suitable LED power supply to match the LED tapes.
The power of the LED power supply should be 20% bigger than the max power of LED tapes in order to ensure the long-time performance of the LED power supply.
Data sheet
- Light colour
- Warm white
- LED quantity
- 60LEDs/m
- Colour temperature (CCT)
- 2700K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- PCB width
- 10mm
- Length
- 5.0m / 5000mm
- Watts per metre
- 14.4W/m
- Features
- Single Colour
- Input voltage
- 12VDC
- CRI
- ≥80
- Version
- Constant Voltage (CV)
- LED chip
- SMD5050
- Cutting
- 50mm
- Lumens per metre
- 1000 - 1999 lm/m
- Beam angle
- 120 degree
