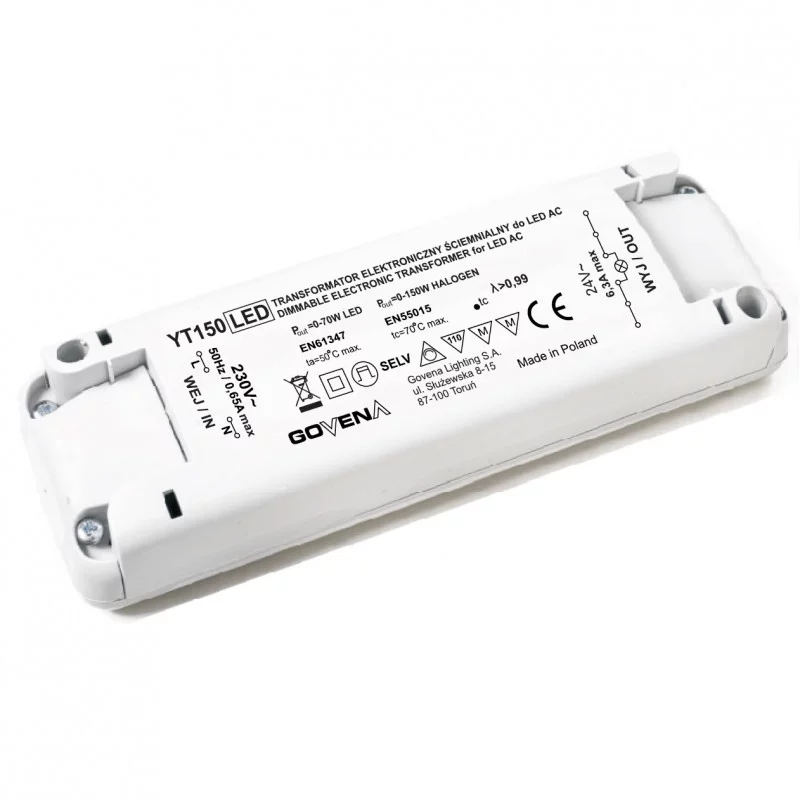

0 - 150W 24VAC Low Voltage Dimmable Electronic Transformer YT150/24

Name: 0 - 150W 24VAC Low Voltage Dimmable Electronic Transformer YT150/24
Brand: Govena
SKU: YT150-24
Price: 23.88 GBP
Availability: InStock

19.90 VAT excl.

£23.88 VAT incl.

YT150 dimmable electronic transformers for low voltage halogen and 24Vac LED lights
- for best compatibility use intelligent dimmers
- starts at 0W!
- 5 years warranty

Note: 24Vdc LED strip can not be connected to YT150 24VAC

Volume discounts

Quantity	Unit price	You Save
5	£23.88	£1.19
10	£23.88	£4.78
20	£23.88	£14.33
50	£23.88	£47.76
100	£23.88	£119.40

In stock 0 Item

approx. 8 weeks

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Low Voltage Dimmable Electronic Transformer YT150 24VAC
5 years warranty

Power: 150VA, 0-150W (if used with LEDs, max. load 70W)
Input Voltage: 230V +/-10%; 50Hz
Input current: 0.65A for 150W
Output Voltage: 24VAC max 6.3A
Output frequency: 25kHz-35kHz
Power factor: 0.99
Ambient Temperature Range: 0-40 degrees
Efficiency (average): 95%
Insulation Class: II
Class: IPX 7
Quantity of Input Terminals: 4
Quantity of Output Terminals: 6

Weight: 235g
Dimensions HxWxL (mm): 33x54x174mm
Protection class: IP40
Fully reversible
Short circuit
Thermal and overload protection
Protection for complete lamp failure
Soft start for extended lamp life
Ultra cool running
Compact size
Recommended for Low Voltage Halogen (24VAC) and 24VAC LED Lights.
Compliance with standards: EN61347-1, EN61347-2-2, EN55015, EN61547, EN61000-3-2, LVD 2014/35/EU, EMC 2014/30/EU, ErP 2009/125/EC (No.278/2009, 1194/2012), RoHS 2011/35/EC, RoHS 2015/863/EC

Note: 24Vdc LED strip can not be connected to YT150 24VAC directly.

All types of transformers are equipped with:
- short-circuit protection
- overload protection (load > 200% Pn)
- surge protection
- returnable thermal protection (switch-off temp. 100°C)

These protection devices do not damage the system (they turn it off automatically) and when abnormal conditions no longer exist, the electronic transformer will function properly (it switches automatically). This guarantees a completely failure-free operation.

Quality and safety guarantee

- Each item is tested before being sent to the customer
- Non-flammable casing successfully used in the furniture industry and utility spaces
