24VDC SMD2835 1-LED-Cut CRI≥95 Flexible Back Light Module / Panel, 60W, 4000K
Perfect for a lighting box and different types of stones.
Spot-free lighting depends on the material being illuminated.
The minimum recommended distance between the LED sheet and the cover is 10 mm (suitable for thicker materials). For thinner or more translucent covers, you may need to increase the distance to achieve an even, spot-free light effect.
1-LED-cut (20mmx20mm)

Volume discounts

Quantity Unit price You Save
5 £55.20 £2.76
10 £55.20 £11.04
20 £55.20 £33.12
50 £55.20 £110.40
100 £55.20 £276.00
0 Item
2-3weeks


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

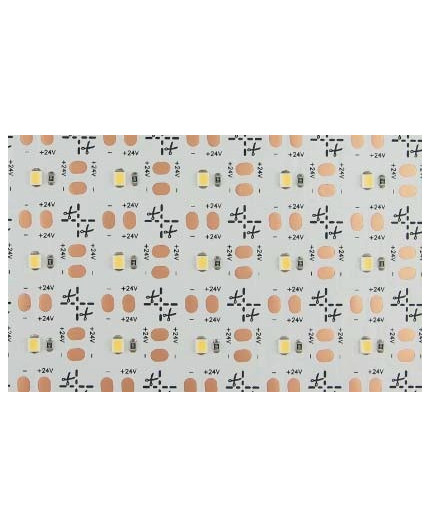

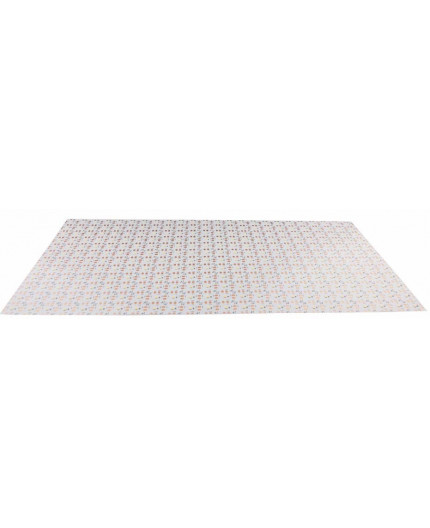

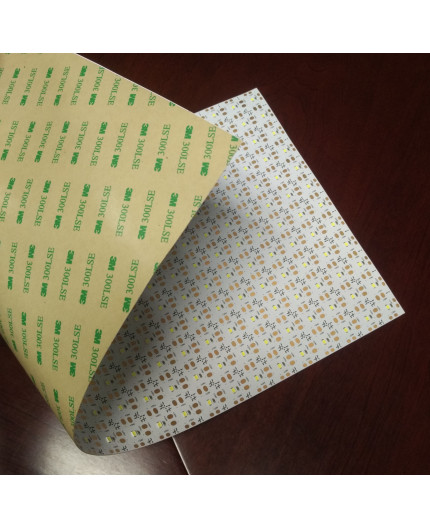

SMD2835 1-LED-Cut (20mmx20mm) CRI≥95 Flexible Back Light Module for lighting box 60W, 4000K


Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Size of module: 480mm x 240mm
Quantity of LEDs: 288pcs (24 x 12)
Power: 60W
CCT: 4000K ± 150K (natural white)
Brightness: approx. 6200lm/m
CRI(Ra)≥95
Beam angle: 120degree
Degree of protection: IP20 (non-waterproof)
PCB: 480mm x 240mm white PCB
Cutting lines: 1-LED-cut: every 20mm horizontally, and 20mm vertically
Operation temperature: -20℃-+45℃
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac)


Note:
Perfect for use in light boxes and with various types of stone.
Spot-free lighting performance depends on the material being illuminated.
The minimum recommended distance between the LED sheet and the cover is 10 mm (ideal for thicker materials).
For thinner or more translucent surfaces, increasing the distance will help achieve a smooth, even, spot-free light effect.

ML-M2835A98-N-24
0 Item

Data sheet

Light colour
White
Colour temperature (CCT)
4000K
Ingress Protection (IP)
IP20 (non-waterproof)
Features
Single Colour
Wattage
60W
Input voltage
24VDC
CRI
≥95
Version
Constant Voltage (CV)
LED chip
SMD2835
Lens
No
