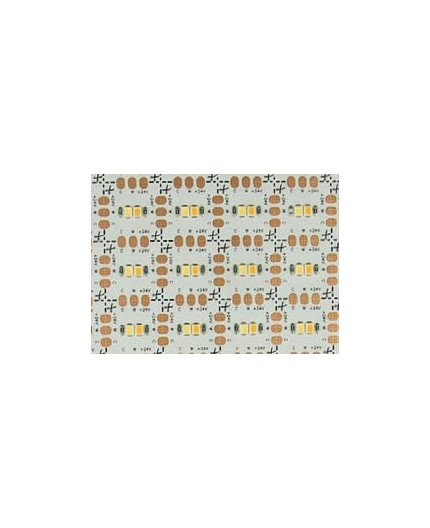

Sample of 24V 120W 2700K-6500K 2-LED-Cut Dual-White Flexible Back Light Module/ Sheet SMD2835
8.90 VAT excl.
£10.68 VAT incl.

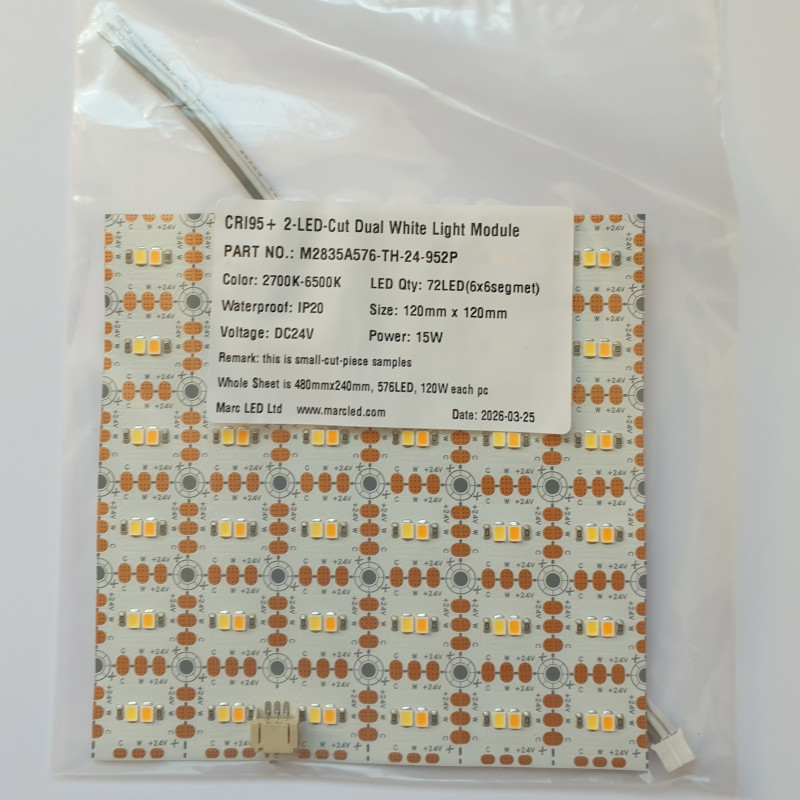

Sample of 24VDC SMD2835 2-LED-Cut Tunable White (2700K-6500K) CRI≥95 Flexible Back Light Module / Panel, 120W
Sample dimensions: 120mm x 120mm (15W) with connection cable 15cm
Cutting: 2-LED-cut (20mmx20mm)
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
SMD2835 2-LED-Cut (20mmx20mm) CRI≥95 Flexible Back Light Module CCT adjustable from 2700K to 6500K, for lighting box
Perfect for use in light boxes and with various types of stone.
Spot-free lighting performance depends on the material being illuminated.
The minimum recommended distance between the LED sheet and the cover is 10 mm (ideal for thicker materials).
For thinner or more translucent surfaces, increasing the distance will help achieve a smooth, even, spot-free light effect.
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Size of the sample module cut from standard sheet 240mmx480mm: 6x2LED x 6x2LED / 120mm x 120mm
Quantity of LEDs: 72pcs
Power of original sheet: 120W
Power of sample module: 15W
CCT: adjustable from 2700K to 6500K
CRI(Ra)≥95
Beam angle: 120 degrees
Cutting: 2-LED-cut (20mmx20mm)
Degree of protection: IP20 (non-waterproof)
PCB with self-adhesive 3M tape backing
Operation temperature: -20℃-+45℃
Set with a connection cable 15cm
ML-M2835A576-TH-24-952P-SAMPLE
8 Items
Data sheet
- Light colour
- Dual White
White - Colour temperature (CCT)
- 2700K-6500K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Length
- SAMPLE
- Features
- CCT Tuneable
- Wattage
- 120W
- Input voltage
- 24VDC
- CRI
- ≥95
- Version
- Constant Voltage (CV)
- LED chip
- SMD2835
- Lens
- No
