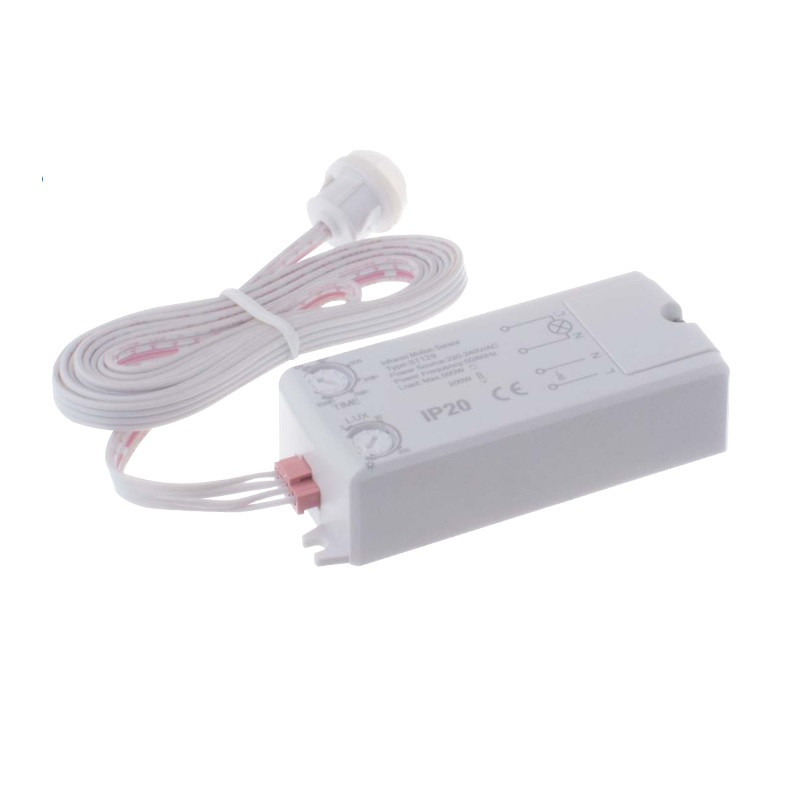

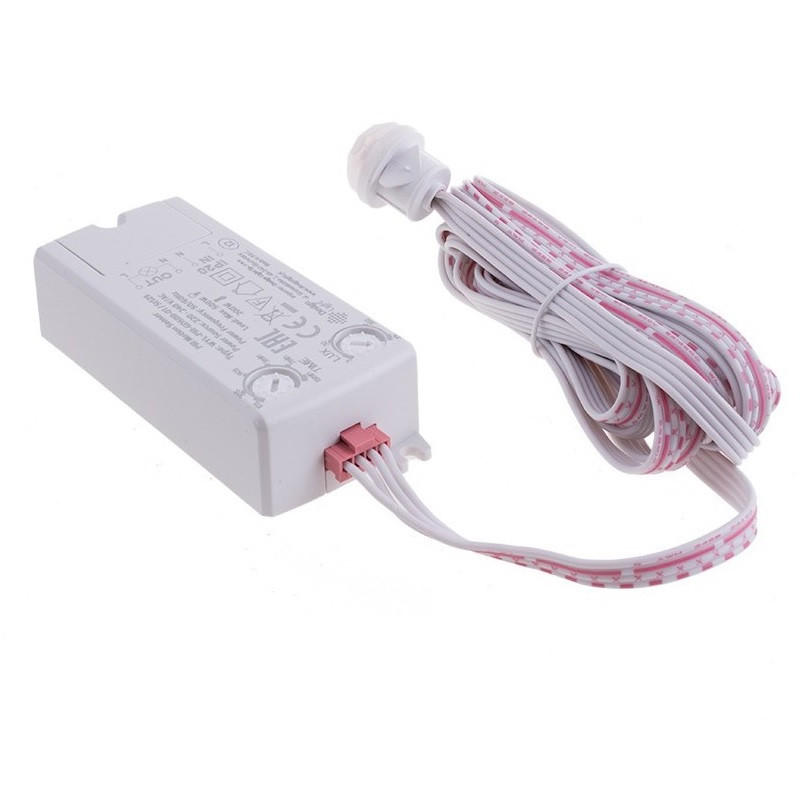

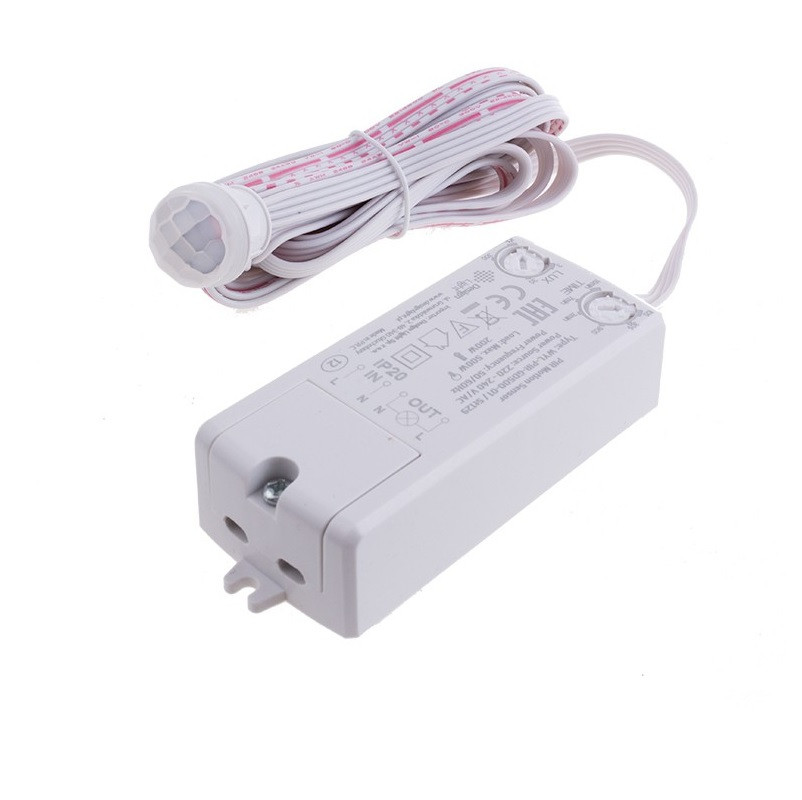

Mini Recessed PIR Movement Sensor Switch, 500W, 220-240VAC
14.00 VAT excl.
£16.80 VAT incl.

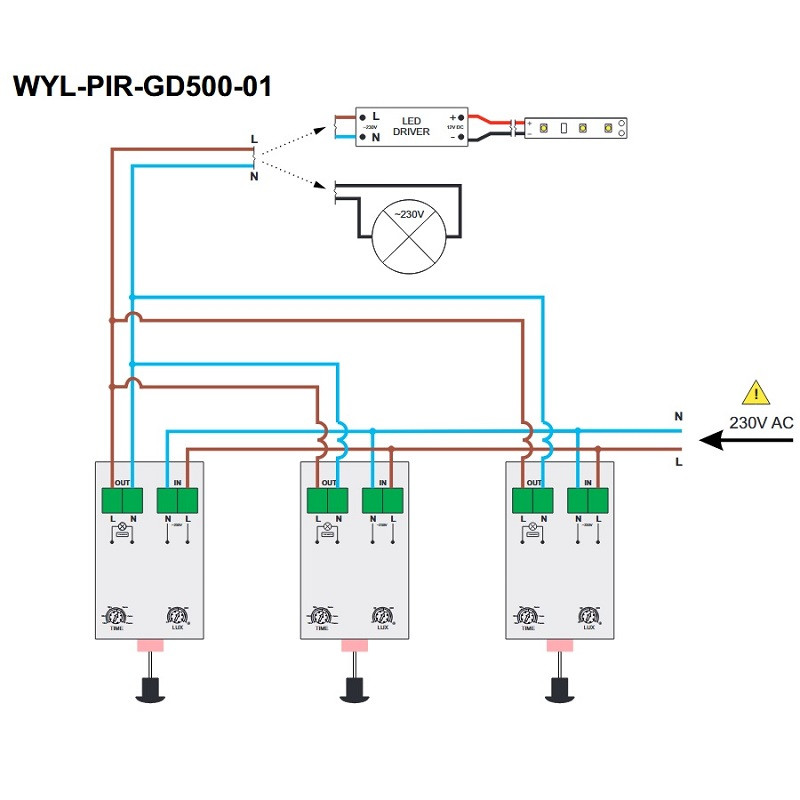

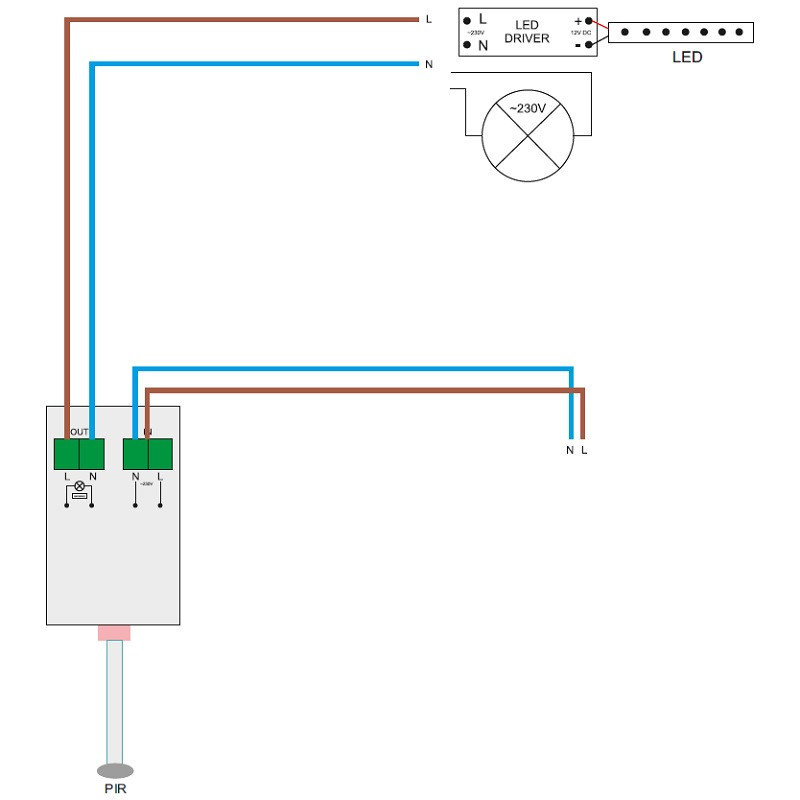

This product has a 240V input and a 240V output. You can connect 12V/24V LED drivers/transformers to the output to switch low-voltage lights.
Detection distance: max 6m (<24°)
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
Technical data:
Power: 220-240 V / AC
Power supply frequency: 50/60 Hz
Rated load: max 500W (incandescent/halogen)
max 200W (LED/energy saving/electronic ballast)
Operating temperature: ~ -20°C +40°C
Ambient light: <3-2000 LUX (adjustable)
Time delay: min 10 ± 3 seconds
max 15 min ± 2 minutes
Detection range: 120°
Detection distance: max 6m (<24°)
Working humidity: <93% relative humidity
Energy consumption: approx. 0,5W
Installation height: 1.8-2.5 m (wall-mounted)
Installation height: 2.2-4 m (ceiling mounting)
Motion speed detection: 0.6-1.5 m/s
Housing: plastics
Finish: white

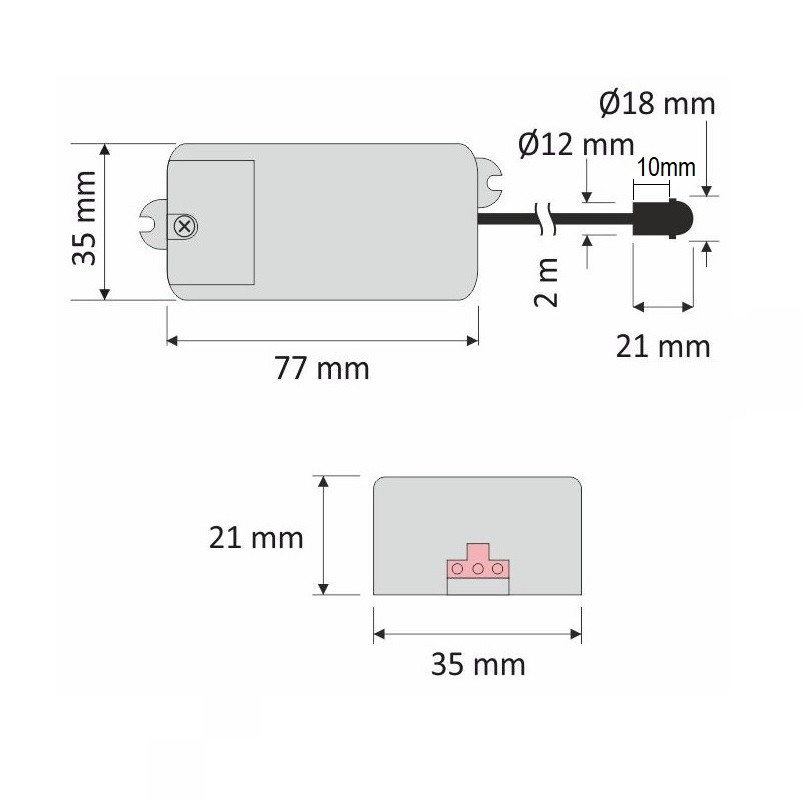

Dimensions: 77 x 35 x 21 mm
Cable length: 2m
Cut out: 12mm (diameter)
Depth: 21mm
Diameter: 18mm
IP Rating: IP20
This product has a 240V input and a 240V output. You can connect 12V/24V LED drivers/transformers to the output to switch low-voltage lights.
ML-WYL-PIR-GD500-01
