24VDC LED tape RGBW 4000K 19.2W/m 60LED/m IP20 5m (96W 300LED) SMD5050
£67.20
Sample of 24VDC LED tape, warm white 2700K, 4.8W/m, 60 LED/m, SMD3528
0.95 VAT excl.
£1.14 VAT incl.
Sample of 24VDC LED tape, 2700K warm white, 60 LEDs/m, 4.8W/m, SMD3528, IP20, 8mm white PCB, 400lm/m, length: 10cm = 0.48W, with connection wires at one end
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

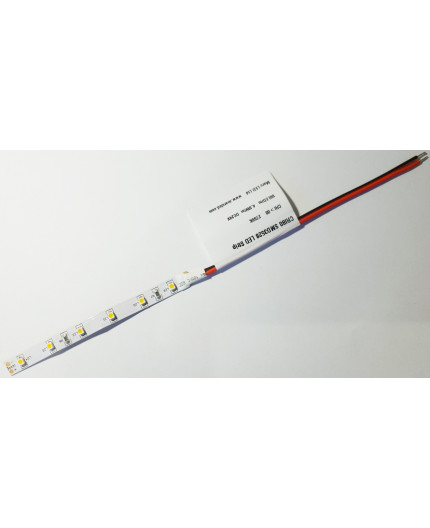

Sample of 24VDC LED tape, warm white 2700K, 4.8W/m, 60LED/m, IP20, SMD3528
LED chip: SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 60
Power: 4.8W/m
Colour temperature (CCT): 2700K, warm white
Brightness: approx. 400lm/m
Beam angle: 120 degree
CRI(Ra)≥80
Energy Efficiency Rating: A+

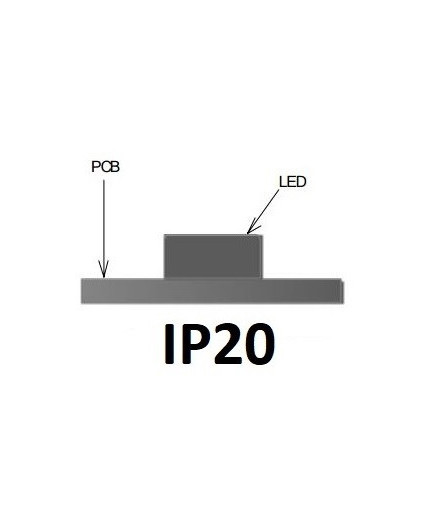

Degree of protection: IP20 (non-waterproof)
Width of PCB: 8mm
Installation: 8mm wide self-adhesive 3M tape backing

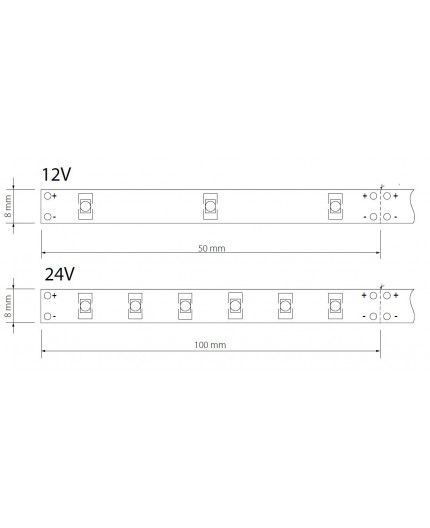

Cutting points: at 6 LED (100mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Average life span: 50000h
Sample length: 10cm
Packing (total length): Sample
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac) (if the LED tape is connected to the suitable dimmable LED power supply, additional dimmer switch required)
ML-F3528A30-WW-24-SAMPLE
19 Items
Data sheet
- Light colour
- White
- LED quantity
- 60LEDs/m
- Colour temperature (CCT)
- 2700K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- PCB width
- 8mm
- Length
- SAMPLE
- Watts per metre
- 4.8W/m
- Features
- Single Colour
- Input voltage
- 24VDC
- CRI
- ≥80
- Version
- Constant Voltage (CV)
- LED chip
- SMD3528
- Cutting
- 100mm
- Lumens per metre
- 0 - 499 lm/m
- Beam angle
- 120 degree
