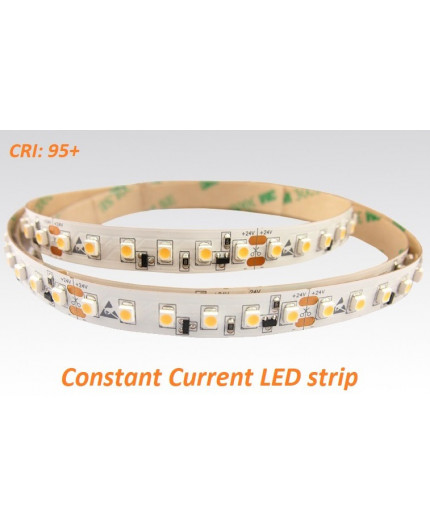

24VDC constant current LED tape 5m 2700K CRI95+ 14.4W/m 120LED/m SMD3528
Premium, 24VDC Constant Current LED Strip, 2700K, CRI≥95 120 LEDs/m, 14.4W/m, length: 5m (72W, 600LEDs), white PCB (10mm), approx.1000lm/m, IP20, SMD3528 with connection wires at both ends

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
24VDC constant current LED tape, warm white 2700K, CRI95+, 14.4W/m, 120LED/m, 5m (72W, 600 LED), IP20, SMD3528
Our Constant Current LED strip is engineered to deliver consistent light output and uniform colour across extended lengths—something not typically achievable with standard constant voltage strips due to voltage drop. This strip can run up to 10 meters from a single end without visible dimming.
Powered by a constant voltage driver 24VDC, it features onboard current regulation circuits that actively maintain brightness and colour consistency throughout the entire run, making it ideal for long linear installations where performance and uniformity are critical.
Temperature Sensor Constant Current LED Strip from the PREMIUM range.
Constant current version: with stable current, suitable for high-quality requirements projects.
With constant current IC for each segment: NO need for a constant current driver.
DC24V input: can work with any DC24V PWM control system or dimmer, such as RF, 0-10V, DALI, DMX512, etc.
Can work with an unstable power supply without damage.
With a temperature sensor, can lower the current to protect itself when the temperature is too high.
Brightness uniform: with the same brightness from the first end to the last end
DC24V version: can work with DC21V to DC30V input (the same current)
The voltage drop will not affect the brightness uniformity of LED strips (DC21V-DC30V input)
The constant current LED strip is cuttable like the constant voltage LED strip
LED: CRI≥95 SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage (not included)
Quantity/m: 120 LEDs per meter
Power: 14.4W/m
CCT: 2700K (warm white)
Brightness: approx. 1000-1100lm/m
Beam angle: 120 degrees
CRI(Ra)≥95
Total length (roll): 5m (72W, 600LEDs)
Degree of protection: IP20 (non-waterproof)
PCB: 10mm wide white PCB
Inst.: 10mm wide self-adhesive 3M tape backing
Cutting points: at 6 LED (50mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Warranty: 3 years
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac)
Note: We supply this LED strip in standard 5m reels. If you need a continuous length of 10m, please send an inquiry: info@marcled.com (min. 10reels)
Adopt a suitable power supply to match the LED strips. Power of LED power supply should be 20% bigger than the max power of LED strips in order to ensure the long-time performance of power supply.
Data sheet
- Light colour
- White
- LED quantity
- 120LEDs/m
- Colour temperature (CCT)
- 2700K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- PCB width
- 10mm
- Length
- 5.0m / 5000mm
- Watts per metre
- 14.4W/m
- Features
- Single Colour
- Input voltage
- 24VDC
- CRI
- ≥95
- Version
- Constant Current (CC)
- LED chip
- SMD3528
- Cutting
- 50mm
- Lumens per metre
- 1000 - 1999 lm/m
- Beam angle
- 120 degree
