300W 24Vdc Single Output Switching LED Power Supply with PFC Function, 3 years warranty
Model: GLG-300-24
Output:
LED driver mode: constant voltage
Output Voltage: 24Vdc
No of outputs: 1
Rated current: 12.5A
Rated power: 300W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 3%
Ripple & noise (max.): 720mVP-P
Setup, rise time: 1000ms, 80ms / 230VAC; 1000ms, 80ms / 115VAC
Hold up time (typ.): 30ms / 115VAC, 60ms / 230VAC
Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 89%
AC current (typ.): 3.1A/115VAC, 1.6A / 230VAC
Power factor: PF > 0.95 / 230VAC; PF > 0.98 / 115VAC at full load
Inrush current (typ.): 65A / 230VAC
Leakage current(max.): 1mA / 240VAC
Protections:
Overcurrent:
- range: 95 ÷ 120% rated current
- type: constant current limiting, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Over voltage:
- 29 ÷ 36V
- type: shut down output voltage. Re-power on to recovery.
Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 95% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 5G, 10min / cycle, period for 60min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: -P/O-P: 3kVAC; I-P/GND: 1.5kVAC; O-P/GND: 0.5kVAC
Isolation resistance: I-P/O-P, I-P/GND, O-P/GND: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: Compliance to EN61000-3-3; EN61000-3-2 class C( ≥ 90% load)
TÜV certificate
Other:

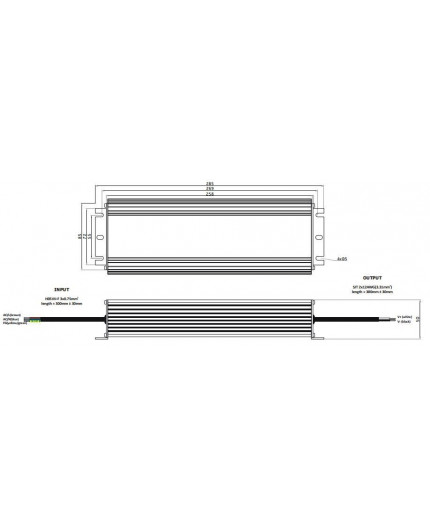

Dimensions: 285 x 96 x 50mm
Weight: 2.20kg
Termination style: flying leads, length = 300mm ± 30mm (INPUT: H05VV-F 3x0.75mm; OUTPUT: SJT 2x12AWG(3.31mm ))
IP67
