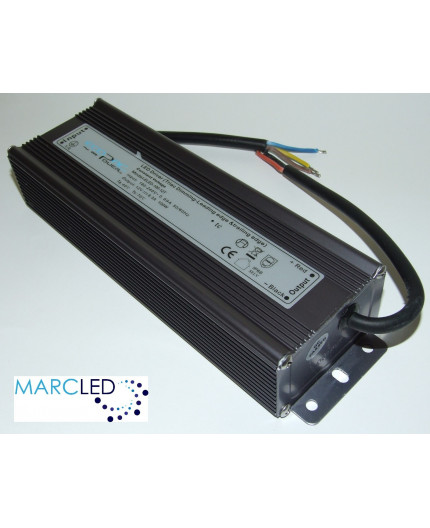

100W Mains to 12Vdc Triac dimmable LED driver, IP66 ELED-100-12T

100W Mains to 12Vdc Triac dimmable LED driver, IP66

Model: ELED-100-12T
Output DC voltage: 12V
Rated current: 8.3A
Voltage accuracy: ±0.5V
Rated power: 100W
Min. load: 10W
Input Voltage Range: 180-250VAC (90-130Vdc)
Frequency Range: 47-63HZ
Inrush Current: 41.6A (Twidth=700μs 230VAC)
Power Factor ( Typ.): PF>0.65/180VAC PF>0.65/230VAC PF>0.65/240VAC (Full Loading)
Full Load Efficiency(Typ.): 80%
AC Current(Typ.): 1.09A
Leakage current: <0.50mA
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed.
Over load: ≤120%
Over curent: ≤1.2 *I out
Over Temperature: 100°C± 10°C shut down o/p voltage, re-power on to recover
Working TEMP.: -40~+60°C
Working Humidity: 20~95%RH,non-condensing
Storage TEMP.-40*C - +80*V
Humidity: ±0.03%/°C(0-50°C)
Temperature Coefficient: ±0.03%/°C (0-50°C)
Vibration: 10~500Hz,5G 10min./1 cycle, period for 60min.each along X,Y,Z axes.
Safety standards: EN60950-1, IP66
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 ( ≥ 50%load)
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8, 11, EN61547,A light industry level
IP rating: IP66

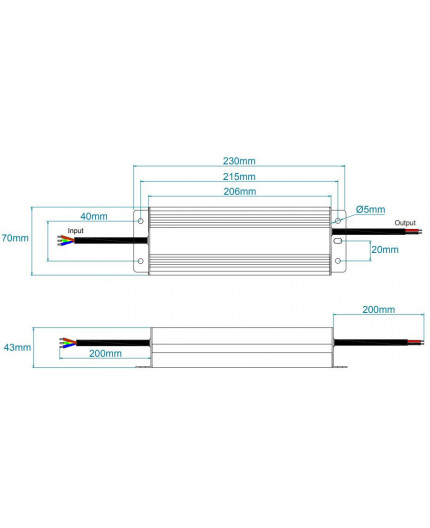

Dimensions: 230*70*43mm (L*W*H)
Packing: 1.05Kg

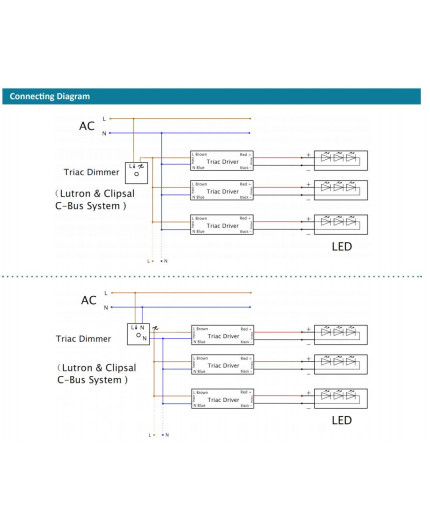

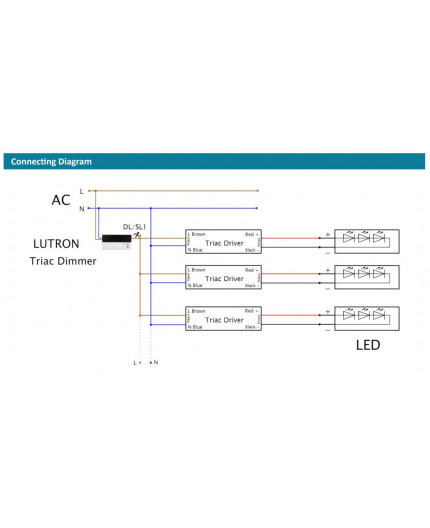

NOTE: ELED-100-12T prefers leading edge dimmers (Please use dimmers with power ratings at least 2 times the power rating of the LED Driver)
