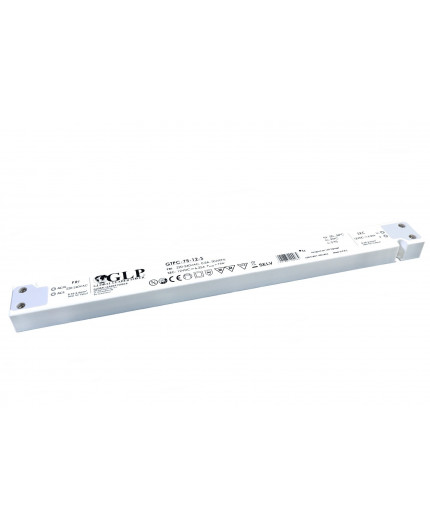

75W 24Vdc Slim Single Output Switching LED Power Supply PFC GTPC-75-24-S

Name: 75W 24Vdc Slim Single Output Switching LED Power Supply PFC GTPC-75-24-S
Brand: GLP - GLOBAL LEADER POWER
SKU: GTPC-75-24-S
Price: 28.8 GBP
Availability: InStock

24.00 VAT excl.

£28.80 VAT incl.

GTPC-75-24-S, 75W, 24Vdc, LED Power Supply, PFC, Single Output, GL Power
- European AC input range
- Constant voltage design: 24Vdc
- Isolation class II
- Built-in active PFC function

In stock 95 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

75W 24Vdc Slim Single Output Switching LED Power Supply PFC

Thanks to unique housing shape, the GTPC-S are perfect for furniture as well as for signage and advertising applications. The characteristic features of the GTPC-S series are long, low and narrow shape, small weight and ease of install thanks to mounting holes.

GTPC-75-24-S (Built-in active PFC function)

Output:

LED driver mode: constant voltage
Output Voltage: 24Vdc
No of outputs: 1

Rated current: 3.125A

Current range: 0-3.125A
Rated power: 75W
Line regulation: ± 5%
Load regulation: ± 5%
Voltage tolerance: ± 5%
Ripple & noise (max.): 500mVP-P
Setup, rise time: 500ms / 230VAC at full load

Input:
Input Voltage: 180 ÷ 264VAC
Frequency range: 47 ÷ 63Hz
Efficiency: 90%
AC current (typ.): 0.45A / 230VAC

Inrush current (typ.): 30A / 230VAC; TWIDTH (50% peak) = 300μs

Protections:
Overcurrent:
- range: 120 ÷ 180%;
- type: hiccup mode, auto-recovery

Short circuit:

- type: hiccup mode, auto-recovery
Over voltage:

- 28 ÷ 34V

- type: hiccup mode, auto-recovery

Environment:

Working temperature: -10°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -20°C ÷ 70°C, 10 ÷ 95% RH non-condensing
IP20

Safety and EMC regulations:
Safety standards: compliance to EN 61347-1, EN 61347-2-13, EN 60598-1
Withstand voltage: I-P/O-P: 3.75kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN 55015, EN 62493
EMC immunity: compliande to EN61547
Harmonic current: compliance to EN61000-3-3; EN61000-3-2

Other:

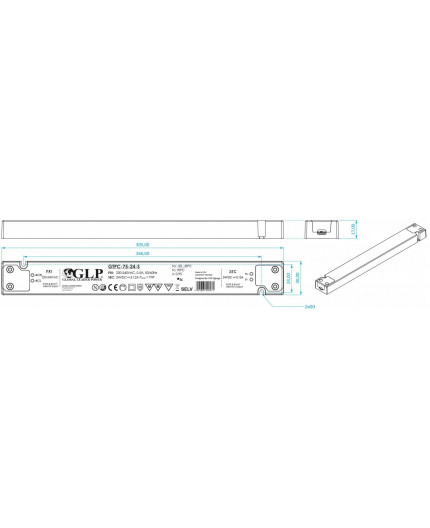

Dimensions: 305 x 30 x 17mm (L x W x H)
Weight: 0.16kg
3 years warranty
