350W 12Vdc Delta Enclosed Panel Mount LED Power Supply PMT-12V350W1AR
55.00 VAT excl.
£66.00 VAT incl.
350W, 12Vdc, 1 Phase, Enclosed Panel Mount LED Power Supply from Delta Electronics
- Applications: IT, industry, LED lighting
- Built-in automatic fan speed control circuit
- AC input range selectable by switch
- Connector type: front face
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

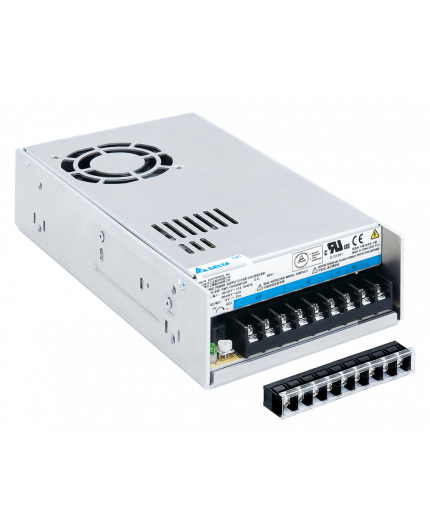

350W 12Vdc Delta Enclosed Panel Mount LED Power Supply
Model: PMT-12V350W1AR
Type: Enclosed with terminal block
Brand/Manufacturer: Delta Electronics
Type: Enclosed with terminal block
Brand/Manufacturer: Delta Electronics
Output:
LED driver mode: constant voltage
Output voltage: 12Vdc
Output voltage tolerance: ± 2% (initial set point tolerance from factory)
Output voltage adjustment range: 10.8-23.2Vdc
No of outputs: 1
Output voltage: 12Vdc
Output voltage tolerance: ± 2% (initial set point tolerance from factory)
Output voltage adjustment range: 10.8-23.2Vdc
No of outputs: 1
Rated current: 29A
Rated power: 348W
Input:
Nominal input voltage: 100-120Vac, 200-240Vac (Selectable by Switch)
Input voltage range: 90-132Vac, 180-264Vac (Selectable by Switch)
Nominal input frequency: 50-60Hz
Frequency range: 47 ÷ 63Hz
Efficiency at 100% load: > 87.0% @ 230Vac
Input current: < 7.00A @ 115Vac, < 4.00A @ 230Vac
Nominal input voltage: 100-120Vac, 200-240Vac (Selectable by Switch)
Input voltage range: 90-132Vac, 180-264Vac (Selectable by Switch)
Nominal input frequency: 50-60Hz
Frequency range: 47 ÷ 63Hz
Efficiency at 100% load: > 87.0% @ 230Vac
Input current: < 7.00A @ 115Vac, < 4.00A @ 230Vac
Max. inrush current (cold start): < 50A @ 115Vac, < 60A @ 230Vac
Leakage current(max.): < 3.5mA @ 240Vac
Leakage current(max.): < 3.5mA @ 240Vac
Protections:
Overcurrent / Short circuit / Over voltage / Over temperature:
Overcurrent / Short circuit / Over voltage / Over temperature:
Environment:
Working temperature: -10°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 5 ÷ 90% RH non-condensing
Storage temperature and humidity: -25°C ÷ 85°C, 5 ÷ 95% RH non-condensing
Shock test (Non-Operating): IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions
Vibration: IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction
Pollution degree: 2
Working humidity: 5 ÷ 90% RH non-condensing
Storage temperature and humidity: -25°C ÷ 85°C, 5 ÷ 95% RH non-condensing
Shock test (Non-Operating): IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions
Vibration: IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction
Pollution degree: 2
Approvals:
CB, CCC, CE, RoHS, cURus, TUV
CB, CCC, CE, RoHS, cURus, TUV
Other:
Mounting type: chassis mount

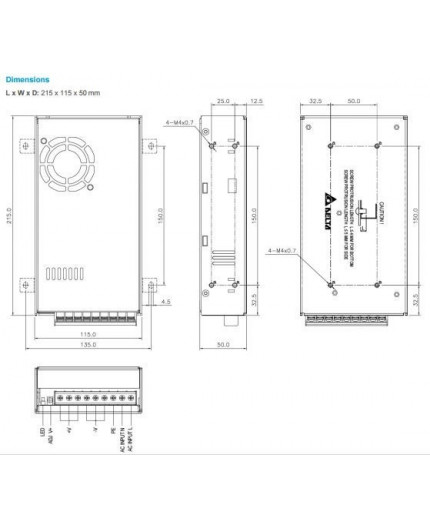

Dimensions: 215mm x 115mm x 50mm
Weight: 0.82kg
PMT-12V350W1AR
97 Items
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Output
- 24VDC
- Wattage
- 350W
- Dimming Control
- Non-dimmable
- Design
- Enclosed (panel mount)
