24Vdc 25W DALI dimmable LED driver, ELED-25-24D

Name: 24Vdc 25W DALI dimmable LED driver, ELED-25-24D
Brand: Ecopac (UK) Power Ltd
SKU: ELED-25-24D
Price: 45.6 GBP
Availability: InStock

38.00 VAT excl.

£45.60 VAT incl.

24Vdc 25W DALI dimmable LED driver
- Constant Voltage Design, 24Vdc
- IP20 design
- Built-in active PFC function
- Suitable for LED lighting and moving sign applications
- Dimming range: 0.1-100%

Volume discounts

Quantity	Unit price	You Save
5	£45.60	£2.28
10	£45.60	£9.12
20	£45.60	£27.36
50	£45.60	£91.20
100	£45.60	£228.00

In stock 200 Items

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Description
Product Details

24Vdc 25W DALI dimmable LED driver

Model: ELED-25-24D
DALI dimmable
Dimming range: 0.1-100%
Output DC voltage: 24V
Rated current: 0～1.04A
Voltage accuracy: ±0.5V
Rated power: 25W
Min. load: 2.5W
Input Voltage Range: 100-265VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF≥0.98/120VAC
Full Load Efficiency(Typ.): 82%
AC Current(Typ.): 0.26A
Leakage current: <0.5mA
Protections: Short Circuit (Hiccup mode, recovers automatically after fault condition is removed)/ Over Loading (≤120%)
Built-in active PFC function
Cooling by free air convection
Working TEMP.: -40~+60°C
Working Humidity: 20~90%RH,non-condensing
Storage TEMP.-40～+60℃，10～95%RH
Humidity: ±0.03%/℃（0～50℃）
Vibration: 10～500Hz, 2G 10min./1 cycle, period for 60min.each along X,Y,Z axes
Safety standards: EN61347-1 EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/PO/P：100M Ohms/500VDC/25℃/70%RH
EMC Emission: Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,11, A light industry Level(surge 4KV)

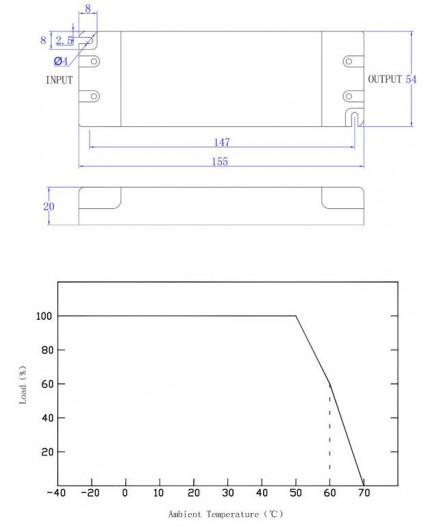

Dimensions: 155x 54x 20mm (L*W*H)
Packing: 0.3Kg
