12Vdc 30W Triac dimmable (leading / trailing edge) LED driver, ELED-30P-12T, Premium

12Vdc 30W Triac dimmable (leading / trailing edge) LED driver, ELED-30P-12T, Premium

£31.35

£31.35 VAT excluded

Volume discounts

Quantity Unit discount You Save
10 1% Up to £3.14
20 2% Up to £12.54
50 3% Up to £47.03
100 4% Up to £125.40
200 5% Up to £313.50
Quantity
in-stock

30W 12Vdc Constant Voltage Triac dimmable LED driver (PWM output), for 12Vdc LED lights, IP20
- Constant Voltage Design
- Suitable for LED lighting and moving sign applications



You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

12Vdc 30W Triac dimmable (leading/trailing edge) LED driver Premium
Built-in active PFC function

Model: ELED-30P-12T
Output DC voltage: 12V
Rated current: 2.5A
Voltage accuracy: ±0.5V
Rated power: 30W
Min. load: 63ge Range: 200-240VAC
Frequency Range: 47-63HZ
Inrush Current: 30A (Twidth=90μs 230VAC)
Power Factor ( Typ.): PF>0.97/200VAC PF>0.97/230VAC PF>0.97/240VAC (Full Loading)
Full Load Efficiency(Typ.): 79%
AC Current(Typ.): 0.22A
Leakage current: <0.50mA
Protections:
Short Circuit: Shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading: ≤120%, shut down o/p voltage, re-power on to recover
Over Current: ≤1.2 *I out
Over Temperature: 100°C± 10°C shut down o/p voltage, re-power on to recover
Cooling by free air convection

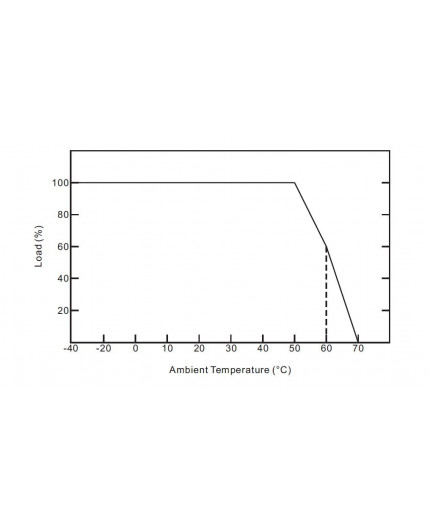

Working TEMP.: -40~+70°C (Refer to derating curve)
Working Humidity: 20 -90% RH, non-condensing
Storage TEMP.Ł -40~+80°C
Humidity: 10 -95% RH
Temperature Coefficient: ±0.03%/°C (0-50°C)
Vibration: 10-500Hz, 2G 10min./ 1 cycle, period for 72min.each along X, Y, Z axes
Safety standards: EN61347-1, EN61347-2-13
Withstand voltage: I/P-O/P: 3.75KVAC
Isolation Resistance: I/P-O/P:100MΩ/500VDC/25°C/70%RH
EMC Emission: Compliance to EN55015, EN61000-3-2,3 (>60%load)
Dimensions: 160x 60x 23mm (L*W*H)
Packing: 0.21Kg

Note: ELED-60P-12T prefers trailing edge dimmers

ELED-30P-12T
100 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP20 (non-waterproof)
Output
12VDC
Wattage
30W
Dimming Control
Trailing / Leading edge
Design
Plastic case
