18W 12Vdc Single Output Switching LED Power Supply active PFC function

Name: 18W 12Vdc Single Output Switching LED Power Supply active PFC function
Brand: GLP - GLOBAL LEADER POWER
SKU: GPVP-20-12
Price: 16.56 GBP
Availability: InStock

13.80 VAT excl.

£16.56 VAT incl.

18W 12Vdc Constant voltage LED Power Supply, Single Output, GL Power, pfc-function, GPVP-20-12
- Suitable for LED lighting
- Universal AC input
- IP67

Volume discounts

Quantity	Unit price	You Save
5	£16.56	£0.83
10	£16.56	£3.31
20	£16.56	£9.94
50	£16.56	£33.12
100	£16.56	£82.80

In stock 8 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

18W 12Vdc Single Output Switching LED Power Supply built-in active PFC function

Model: GPVP-20-12

Output:

LED driver mode: constant voltage
Output Voltage: 12Vdc
No of outputs: 1

Rated current: 1.5A

Current range: 0-1.5A
Rated power: 18W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 3%
Ripple & noise (max.): 300mVP-P
Setup, rise time: 500ms, 250ms / 115VAC; 500ms, 250ms / 230VAC at full load
Hold up time (typ.): 24ms / 115VAC, 50ms / 230VAC at full load

Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 85%
AC current (typ.): 0.5A/115VAC, 0.25A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 / 115VAC

Inrush current (typ.): 70A / 230VAC, 35A / 115VAC
Leakage current(max.): 0.25mA / 240VAC

Protections:
Overcurrent:
- range: 150 ÷ 200% rated current
- type: hiccup mode, auto-recovery

Short circuit:

- type: hiccup mode, auto-recovery
Over voltage:

- 13.5 ÷ 18.5V

- type: hiccup mode, auto-recovery
Over temperature:
- range: 140°C ± 10°C detect on main control IC
- type: shut off, recovers automatically after temperature goes down

Environment:

Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes

Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2

Other:

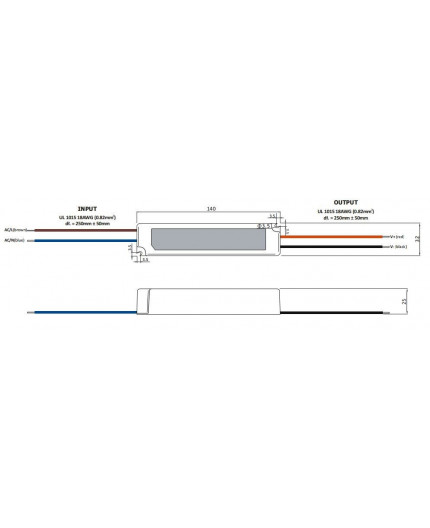

Dimensions: 140 x 32 x 25mm
Weight: 0.21kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
IP67
