0 - 60W 12Vdc Dimmable Electronic Transformer for LED DC, TE60W

Name: 0 - 60W 12Vdc Dimmable Electronic Transformer for LED DC, TE60W
Brand: Govena_
SKU: C8-9S8R-29UX
Price: 45.6 GBP
Availability: InStock

38.00 VAT excl.

£45.60 VAT incl.

0-60W dimmable electronic transformer for 12vdc LED lights, TE60W

- For best compatibility use intelligent dimmers (trailing edge)
- Delivering up to 60W of power

Volume discounts

Quantity	Unit price	You Save
5	£45.60	£2.28
10	£45.60	£9.12
20	£45.60	£27.36
50	£45.60	£91.20
100	£45.60	£228.00

In stock 27 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

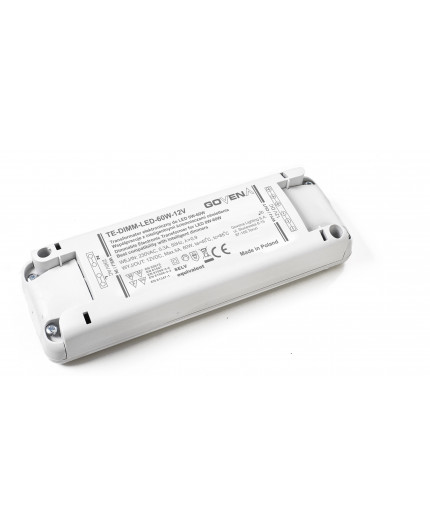

0 - 60W 12Vdc Dimmable (trailing edge) Electronic Transformer for LEDs, TE60W-DIMM-LED-12V
5 years warranty

Electronic LED transformer with built-in AC/DC converter.

- For best compatibility use intelligent dimmers
- Constant Voltage Design
- Protections: Short circuit/ Over voltage/Over temperature
- Cooling by free air convection
- IP40 design
- Delivering up to 60W of power
- Suitable for 12VDC LED lighting

Input voltage: 230 V AC +/-10%, 50Hz
Input current: ≤ 0,3 A
Power factor: >0,9
Output voltage: 12VDC +/- 10%
Rated power: 60W
Power range: 0 – 60 W
Nominal output current: ≤ 5 A
Output current range: 0 – 5 A
Protection degree: IP40
Ambient temperature ta: max. 40 ºC
Case temperature tc: max. 85 ºC
Number of terminals input: 4
Number of terminals output: 6

Cooperation with light dimmers: transistor (trailing edge phase control)
TE60W-DIMM-LED-12V can by used for the adjustment of the LED light intensity by applying light dimmer.
For best compatibility use intelligent transistor dimmers which cut off the mains voltage towards the end of sine wave (trailing edge dimmers).

Important remarks:

- Disconnect from mains before fitting the unit.

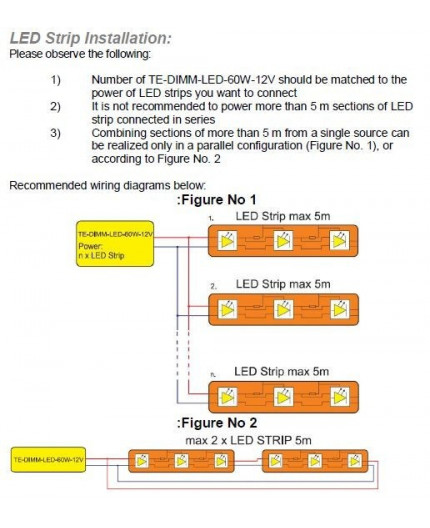

- Connect LED light to the output of TE-DIMM-LED-60W-12V with correct

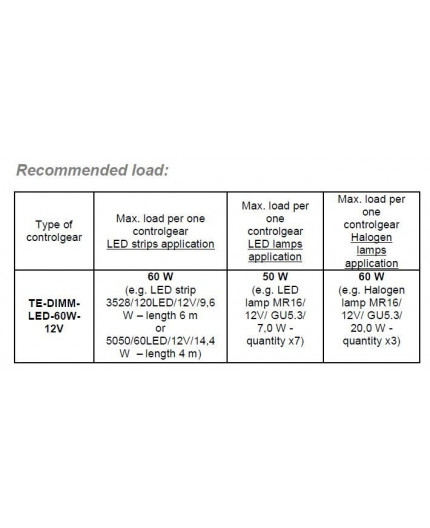

- Max. load applied to the output must not exceed 60W.

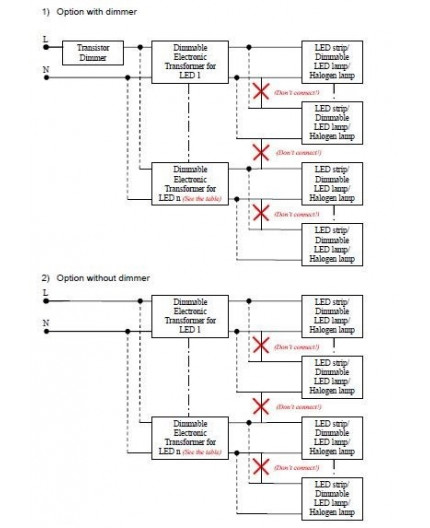

- Connect dimmer to the input of TE-DIMM-LED-60W-12V.

- Input line min. – 2x0,5 mm2 .

- Output line min. – 2x1mm2, 4x0,75mm2, 6x0,5mm2 .

- TE-DIMM-LED-60W-12V doesn’t change the Power Factor.

- Maximum length of output cable should not exceed 2 m, in order to meet EMC standards.

- Minimum distance between TE-DIMM-LED-60W-12V and halogen lamps or next transformers should not be less than 30 cm.

- Provide sufficient air flow for TE-DIMM-LED-60W-12V (permissible max. operating temperature:+40ºC).

- If the TE-DIMM-LED-60W-12V is used for purposes other than originally intended, or it is connected in a wrong way, no liability will be assumed for possible damages.
