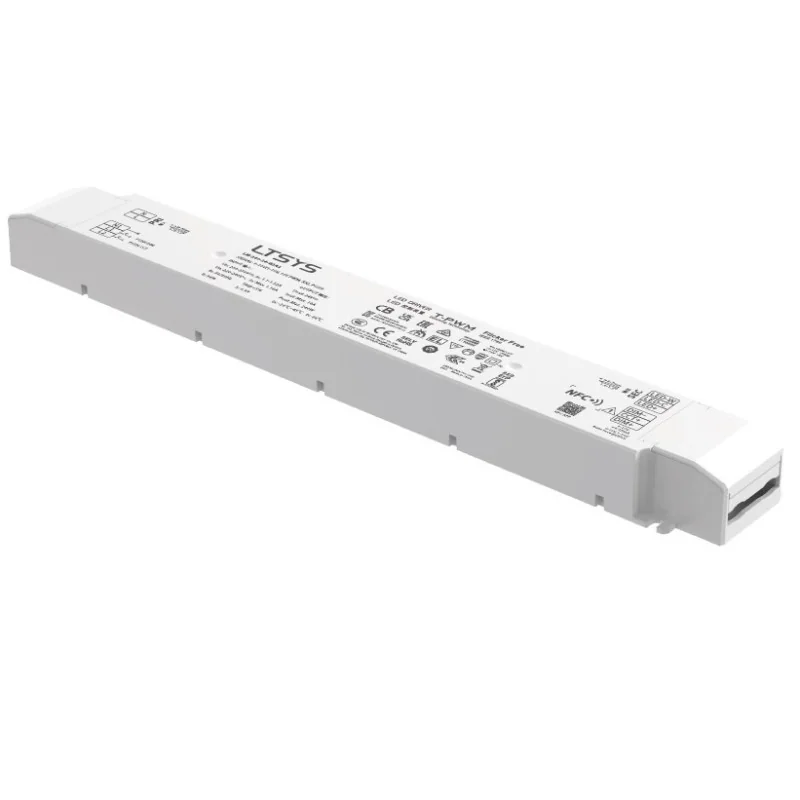

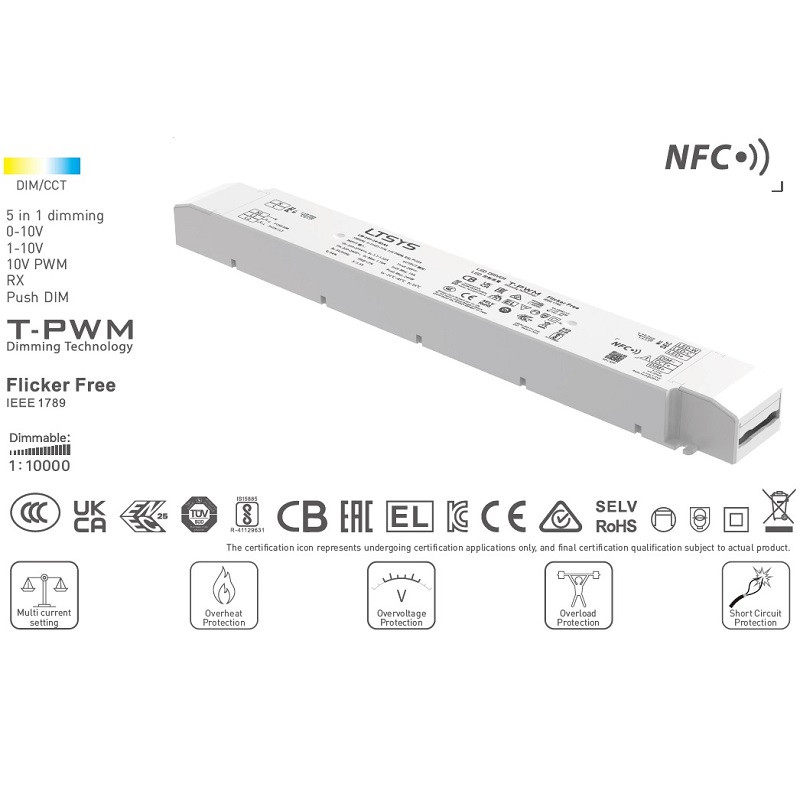

Ltech LM-240-24-G2A2 240W 24V NFC CV 0/1-10V CCT Tunable White LED Driver

Name: Ltech LM-240-24-G2A2 240W 24V NFC CV 0/1-10V CCT Tunable White LED Driver
Brand: LTECH Lighting
SKU: LM-240-24-G2A2
Price: 103.2 GBP
Availability: InStock

86.00 VAT excl.

£103.20 VAT incl.

LED Intelligent Driver from Ltech
Dimming Interface: 0-10V(1-10V, 10V PWM, RX), PUSH DIM/CCT
Dimming from 0-100%, down to 0.01%.L

Volume discounts

Quantity	Unit price	You Save
5	£103.20	£5.16
10	£103.20	£20.64
20	£103.20	£61.92
50	£103.20	£206.40
100	£103.20	£516.00

In stock 0 Item

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

- Dimming interface: 0-10V(1-10V, 10V PWM, RX), PUSH DIM/CCT
- Ultra-low consumption of 0-10V ports <0.05mA.
- Dimming from 0-100%, down to 0.01%.
- Automatic recognition of 0-10V, 1-10V input signal.
- With soft-on and fade-in dimming function, enhancing your visual comfort.
- Overheat / Over voltage / Overload / Short circuit protection, recover automatically.
- Full protective plastic housing.
- Comply with the EU’s ErP Directive, networked standby<0.5W.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.

Input Voltage Range: 220-240Vac 50/60Hz
Input Current: Max. 0.5A/230Vac
Power Factor: PF>0.99/230Vac, at full load
Efficiency: >94%
Output Voltage: 24Vdc
Output Current: 10A
Output Power: max.240W
Output Power Range: 0-240W
Strobe Level: High-frequency exemption level.
Dimming Range: 0~100%, down to 0.01%.
Dimension: 380×49.5×30mm(L×W×H)
Weight(G.W.): 555g±10g
