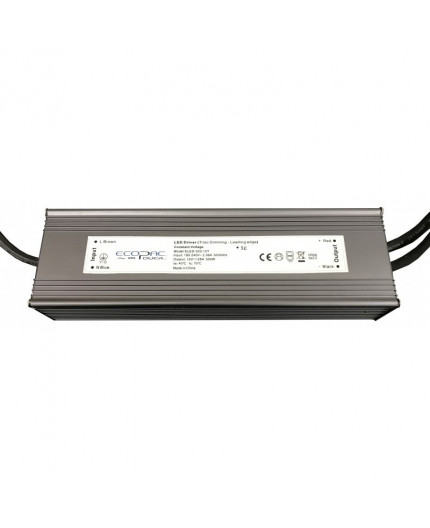

360W, ELED-360P-24T, Mains to 24Vdc Triac dimmable LED driver, IP66
Model: ELED-360P-24T
Output DC voltage: 24V
Rated current: 15A
Voltage accuracy: ±0.5V
Rated power: 360W
Min. load: 36W
Input Voltage Range: 200-240VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF>0.97/230V
Full Load Efficiency(Typ.): 89%
AC Current(Typ.): 2.4A
Leakage current: <0.50mA/230V
Inrush current: 60A
Short Circuit: Shut down o/p voltage, re-power on to recover after fault condition is removed
Overtemperature: 100°C± 10°C shut down o/p voltage, re-power on to recover
Over loading ≤120%, shut down o/p voltage, re-power on to recover
Working TEMP.: -40~+60°C
Working Humidity: 40 - +80°C, 10 – 95%RH
Storage TEMP.-40*C - +80*V
TEMP . Coefficient: +0.03%/°C (0-50°C)
Vibration: 10-500Hz 2G 10min./ 1 cycle, the period for 60min. each along X, Y, Z axes
Safety standards: EN61347-1 EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC I/P-FG: 1.88KVAC O/P-FG:0.5KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100M Ohms/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 (>60%load)
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level(surge 4KV) Criteria A

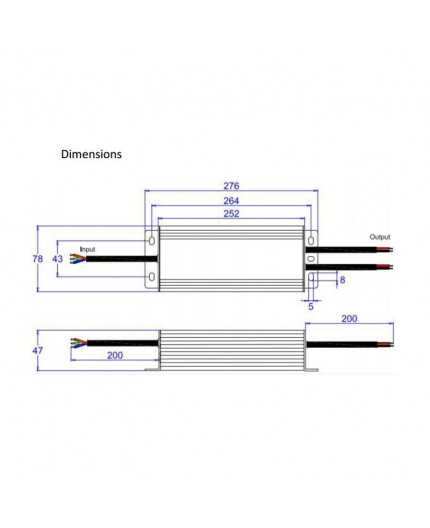

Dimensions: 276*78*47mm (L*W*H)
Packing: 1.8Kg
NOTE: ELED-360P-24T prefers leading-edge dimmers
ELED-360P-24T
94 Items
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP66
- Output
- 24VDC
- Wattage
- 360W
- Dimming Control
- Trailing / Leading edge
- Design
- Metal case
