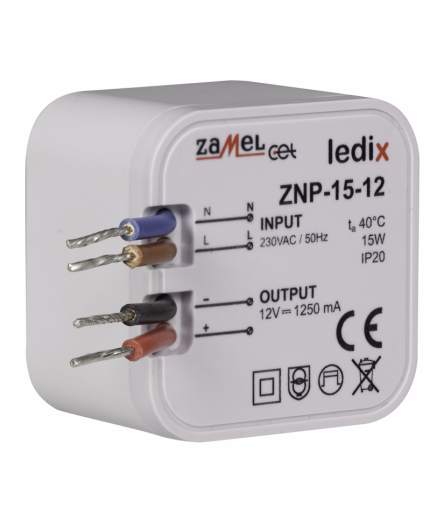

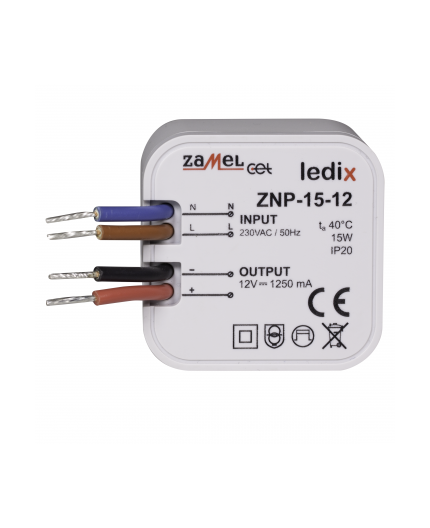

15W 12Vdc LED driver for wall box dia. 60mm, ZNP-15-12
24.00 VAT excl.
£28.80 VAT incl.
Professional power supply unit with 12 V DC output power and 15 W rated power.
Designed for direct installation in an installation box dia. 60mm.
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
ZNP-15-12 junction box power supply is a professional impulse power supply with 12 V DC output voltage and 15W nominal power. The power supply is designed to cooperate with LEDIX products such as radio controllers and radio receivers and other LED products supplied with 12 V DC. It is designed for a direct mounting in a Ø60 junction box. The device has a short circuit and overload protections, which increase the safety of its use. Its high efficiency and a very low power consumption in the standby mode makes it a very economical solution, designed for continuous operation. The power supply meets the requirements of the harmonised standards.
Characteristic features:
- 12 V DC nominal output voltage,
- 15 W nominal power,
- small dimensions - suitable for mounting in a typical Ø60 junction box,
- low power consumption in the standby mode (0.25 W),
- efficiency at the level of 79%,
- high stability of the output voltage with input voltage or load changes,
- protections: short-circuit, overload,
- wide ambient temperature range: -10 to 50 ° C,
- long-term operation reliability,

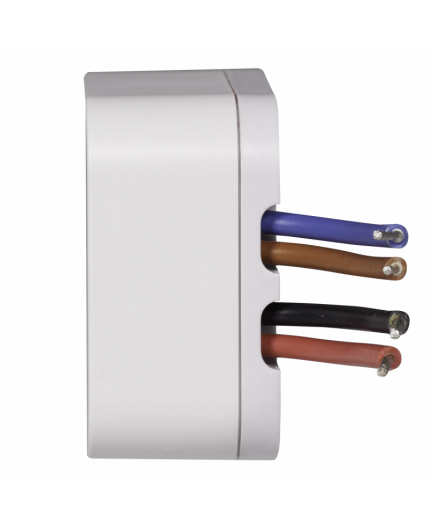

- output connecting cables 150 mm long.

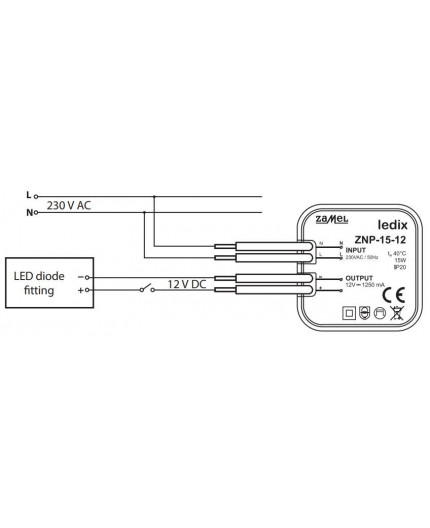

The power supply cooperates with:
- LED standard products supplied with 12 V DC,
- LED controllers and radio receivers supplied with 10÷14 V DC.
CAUTION: The total power of lighting fittings or of the devices cooperating with the power supply must not exceed 15W.
TECHNICAL DATA:
- Nominal output voltage: 12 V DC
- Nominal output current: 1,25 A
- Nominal output power: 15 W
- Output voltage tolerance: 5%
- Output voltage ripples: 80 mVPP
- Output voltage time increase: 10 ms
- Output voltage time adjustment: 20 ms
- Nominal input voltage: 230 V AC
- Input voltage tolerance: -10 ÷ 15%
- Nominal frequency: 50 Hz Efficiency: 79 ÷ 80%
- Power consumption (standby): 0,25 W
- Starting current: 20 A
- Protections: short-circuit, overload
- Ambient temperature range: -10 ÷ +50 o C
- Mounting: In a Ø60 junction box
- Casing protection degree: IP20
- Protection class: II

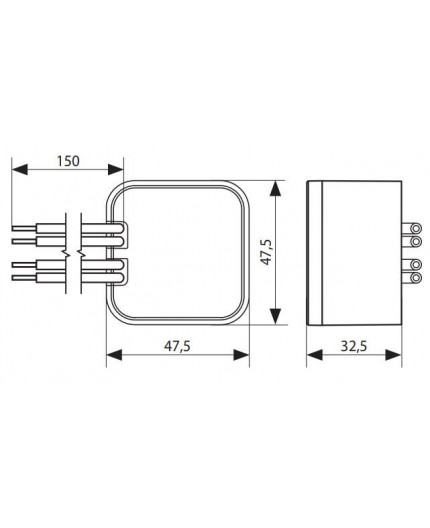

- Dimensions: 47,5 x 47,5 x 32,5 mm
- Weight: 100 g
- Reference standard: PN-EN 61204-3; PN-EN 55022; PN-EN 61000
ML-ZNP-15-12
1 Item
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Output
- 12VDC
- Wattage
- 15W
- Design
- Plastic case
Wall Box-Shape
