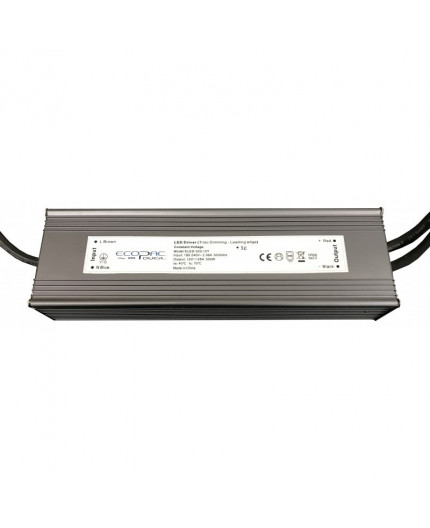

300W, Mains to 24Vdc Triac dimmable LED driver, IP66, ELED-300-24T

Name: 300W, Mains to 24Vdc Triac dimmable LED driver, IP66, ELED-300-24T
Brand: Ecopac (UK) Power Ltd
SKU: ELED-300-24T
Price: 144 GBP
Availability: InStock

120.00 VAT excl.

£144.00 VAT incl.

300W 24Vdc Constant Voltage Triac dimmable LED driver (dimmable with leading edge/trailing edge), ELED-300-24T for 24Vdc LED lights

In stock 84 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

300W, ELED-300-24T, Mains to 24Vdc Triac dimmable LED driver, IP66

Model: ELED-300-24T
Output DC voltage: 24V
Rated current: 12.5A
Voltage accuracy: ±0.5V
Rated power: 300W
Min. load: 30W
Input Voltage Range: 180-240VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF>0.98/230V
Full Load Efficiency(Typ.): 90%
AC Current(Typ.): 2.06A
Leakage current: <0.70mA/230V
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed.
Over voltage: ≤240VAC
Over curent: ≤1.4L out
Working TEMP.: -40~+60°C
Working Humidity: 40 - +80°C, 10 – 95%RH
Storage TEMP.-40*C - +80*V
TEMP . Coefficient: +0.03%/°C (0-50°C)
Vibration: 10-500Hz 2G 10min./ 1 cycle, period for 60min. each along X, Y, Z axes
Safety standards: EN61347-1 EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC I/P-FG: 1.88KVAC O/P-FG:0.5KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100M Ohms/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 (>60%load)
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level(surge 4KV) Criteria A

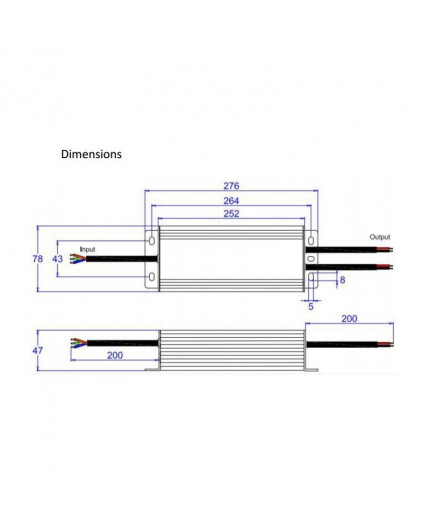

Dimensions: 276*78*47mm (L*W*H)
Packing: 1.8Kg
