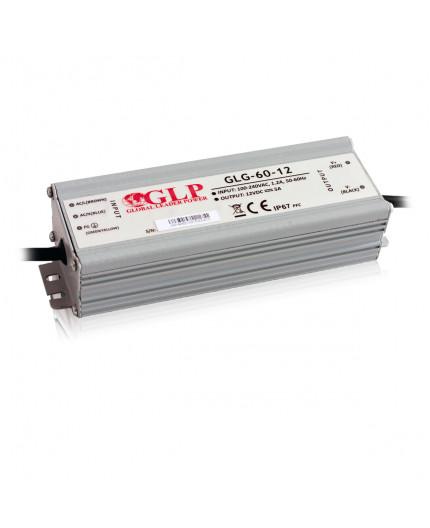

60W 12Vdc Single Output Switching LED Power Supply with PFC Function

Name: 60W 12Vdc Single Output Switching LED Power Supply with PFC Function
Brand: GLP - GLOBAL LEADER POWER
SKU: GLG-60-12
Price: 38.4 GBP
Availability: InStock

32.00 VAT excl.

£38.40 VAT incl.

60W 12Vdc Constant voltage LED Power Supply, Single Output, GL Power GLG-60-12
- Suitable for LED lighting
- CV + CC mode
- Universal AC input
- IP67

3 years warranty

In stock 99 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Single Output Switching LED Power Supply with PFC Function, GL Power, 3 years warranty

Model: GLG-60-12

Output:

LED driver mode: constant voltage
Output Voltage: 12Vdc
No of outputs: 1

Rated current: 5A

Rated power: 60W
Line regulation: ± 1%
Load regulation: ± 5%
Voltage tolerance: ± 5%
Ripple & noise (max.): 5mVP-P
Setup, rise time: 1200ms, 80ms / 230VAC; 1200ms, 80ms / 115VAC
Hold up time (typ.): 10ms / 115VAC, 20ms / 230VAC

Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 80%
AC current (typ.): 1.2A/115VAC, 0.8A / 230VAC

Power factor: PF > 0.9 / 230VAC; PF > 0.98 / 115VAC at full load

Inrush current (typ.): 75A / 230VAC
Leakage current(max.): 1mA / 240VAC

Protections:
Overcurrent:
- range: 95 ÷ 140% rated current
- type: constant current limiting, auto-recovery

Short circuit:

- type: hiccup mode, auto-recovery
Over voltage:

- 25 ÷ 30V

- type: shut down output voltage. Re-power on to recovery.

Environment:

Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 95% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes

Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: -P/O-P: 3kVAC; I-P/GND: 1.5kVAC; O-P/GND: 0.5kVAC
Isolation resistance: I-P/O-P, I-P/GND, O-P/GND: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliande to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2 class C ( ≥ 60% load)

TÜV certificate

Other:

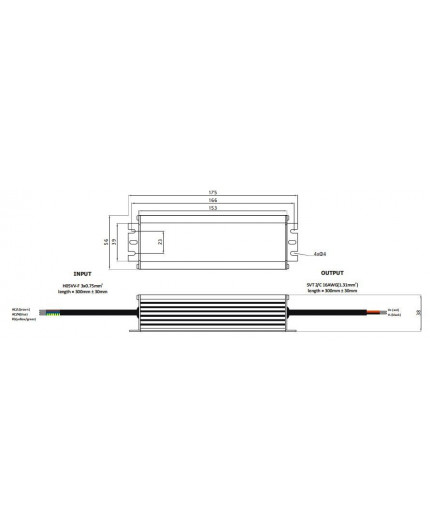

Dimensions: 175 x 56 x 38mm
Weight: 0.70kg
Termination style: flying leads, length = 300mm ± 30mm (INPUT: H05VV-F 3x0.75mm; OUTPUT: SVT 2/C 16AWG (1.31mm ))
IP67
