59.00 VAT excl.
£70.80 VAT incl.

90W Constant Voltage Triac dimmable LED driver, ELED-90-12T for 12Vdc LED lights
- Constant Voltage Design, 12Vdc

Volume discounts

Quantity Unit price You Save
5 £70.80 £3.54
10 £70.80 £14.16
20 £70.80 £42.48
50 £70.80 £141.60
100 £70.80 £354.00
0 Item


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

90W Mains to 12Vdc Triac dimmable LED driver, IP66

Model: ELED-90-12T
Output DC voltage: 12V
Rated current: 7.5A
Voltage accuracy: ±0.5V
Rated power: 90W
Min. load: 10W
Input Voltage Range: 200-240VAC
Frequency Range: 47-63HZ
Inrush Current: 68A (Twidth=130μs 230VAC)
Power Factor ( Typ.): PF>0.98/200VAC PF>0.98/230VAC PF>0.98/240VAC (Full Loading)
Full Load Efficiency(Typ.): 86%
AC Current(Typ.): 0,65A
Leakage current: <0.50mA
Short Circuit Shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading ≤120%, shut down o/p voltage, re-power on to recover
Over curent: ≤1.2 *I out
Over Temperature 100°C± 10°C shut down o/p voltage, re-power on to recover
Working Temperature -40~+70°C (Refer to derating curve)
Working Humidity 20 -90% RH, non-condensing
Storage Temperature, Humidity -40~+80°C, 10 -95% RH
Temperature Coefficient ±0.03%/°C (0-50°C)
Vibration: 10-500Hz, 2G 10min./ 1 cycle, period for 72min.each along X, Y, Z axes
Safety standards: EN61347-1, EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/P-O/P:100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2,3 (>60%load)
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8, 11, EN61547,A light industry level
IP Rating: IP20

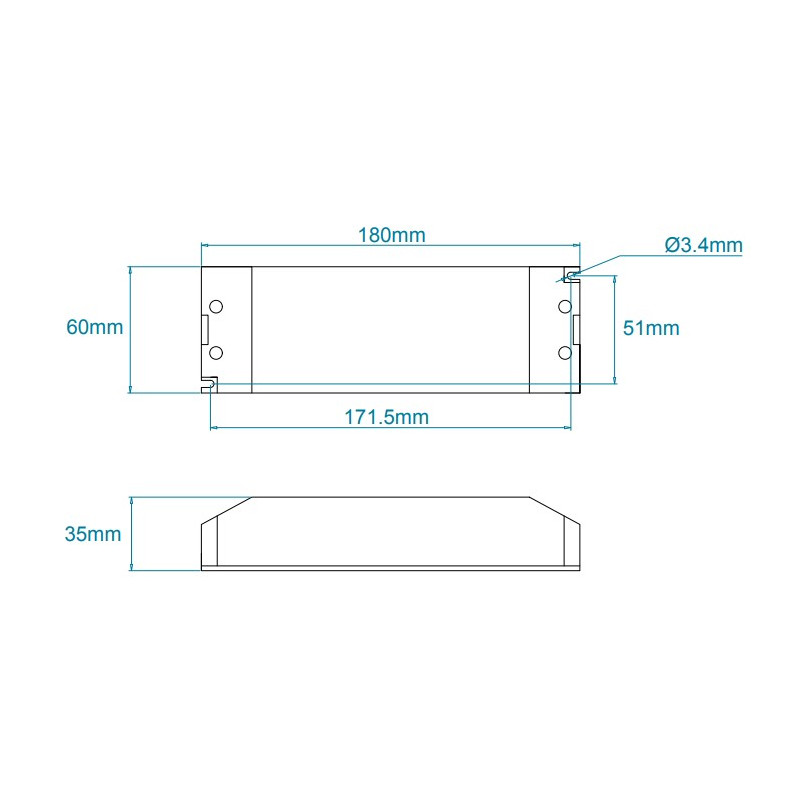

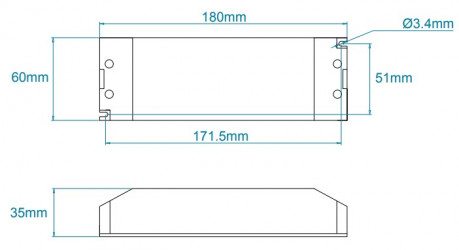

Dimensions: 180*60*35mm (L*W*H)
Weight: 0,45Kg


NOTE: ELED-90-24T prefers leading edge dimmers (Please use dimmers with power ratings at least 2 times the power rating of the LED Driver)

ELED-90-24T
0 Item

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP20 (non-waterproof)
Output
12VDC
Wattage
90W
Dimming Control
Trailing / Leading edge
Design
Plastic case
