12Vdc 100W DALI dimmable LED driver, active PFC function

Name: 12Vdc 100W DALI dimmable LED driver, active PFC function
Brand: Ecopac (UK) Power Ltd
SKU: ELED-100-12D
Price: 102 GBP
Availability: InStock

85.00 VAT excl.

£102.00 VAT incl.

100W Constant Voltage DALI dimmable LED driver for 12Vdc LED lights and moving sign applications

- Built-in active PFC function
- Dimming range: 0.1-100%

Volume discounts

Quantity	Unit price	You Save
5	£102.00	£5.10
10	£102.00	£20.40
20	£102.00	£61.20
50	£102.00	£204.00
100	£102.00	£510.00

In stock 100 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Description
Product Details

DALI dimmable LED driver, active PFC function 100W

Model: ELED-100-12D
Dimming range: 0.1-100%
Output DC voltage: 12V
Rated current: 0～8.3A
Voltage accuracy: ±0.5V
Rated power: 100W
Min. load: 10W
Input Voltage Range: 100-265VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF≥0.98/120VAC
Full Load Efficiency (Typ.): 83%
AC Current (Typ.): 0.7A
Leakage current: <0.5mA
Protections: Short Circuit (Hiccup mode, recovers automatically after fault condition is removed)/ Over Loading (≤120%) / / over current (<1.4*I out)
Built-in active PFC function
Cooling by free air convection
Working TEMP.: -40~+60°C
Working Humidity: 20~90%RH,non-condensing
Storage TEMP.-40～+60℃，10～95%RH
Humidity: ±0.03%/℃（0～50℃）
Vibration: 10～500Hz, 2G 10min./1 cycle, period for 60min.each along X,Y,Z axes
Safety standards: EN61347-1 EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/PO/P：100M Ohms/500VDC/25℃/70%RH
EMC Emission: Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,11, A light industry Level (surge 4KV)

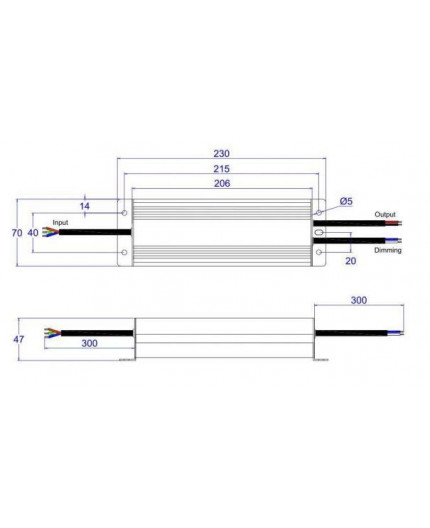

Dimensions: 230x 70x 46mm (L*W*H)
Packing: 1.3Kg
