24Vdc Triac dimmable slim LED driver 60W IP66, ELED-60-24T-SLP

Name: 24Vdc Triac dimmable slim LED driver 60W IP66, ELED-60-24T-SLP
Brand: Ecopac (UK) Power Ltd
SKU: ELED-60-24T-SLP
Price: 62.4 GBP
Availability: InStock

52.00 VAT excl.

£62.40 VAT incl.

60W Slim Constant Voltage Triac dimmable LED driver, ELED-60-24T-SLP for 24Vdc LED lights
- Constant Voltage Design, 24Vdc

Volume discounts

Quantity	Unit price	You Save
5	£62.40	£3.12
10	£62.40	£12.48
20	£62.40	£37.44
50	£62.40	£124.80
100	£62.40	£312.00

In stock 92 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

60W Slim Constant Voltage Triac dimmable LED driver for 24Vdc LED lights.

Model: ELED-60-24T-SLP (slim)
Output DC voltage: 24V
Rated current: 2.5A
Rated power: 60W
Min. load: 6W
Input Voltage Range: 200-240VAC
Frequency Range: 47-63HZ
Voltage accuracy: ±0.5V
Inrush Current: 50A, 50% 210us@230VAC
Power Factor ( Typ.): PF ≥ 0.96/220V
Full Load Efficiency(Typ.): 85%
AC Current (Max.): 0.37A
Short Circuit: Shut down o/p voltage, re-power onto recover after fault condition is removed.
Over loading: ≤120%, constant current limiting, re-power onto recover
Over Temperature: 100°C ±10°C, re-power onto recover
Protection Class: I
Working TEMP.: -40~+60°C
Working Humidity: 20~95%RH,non-condensing
Storage TEMP.-40*C - +80*V
Humidity: 10-95% RH
Temperature Coefficient: ±0.03%/°C (0-50°C)
Vibration: 10~500Hz,5G 10min./1 cycle, period for 60min.each along X,Y,Z axes.
Safety standards: EN613471, EN61347-2-13, EN62493
Withstand voltage: I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2, EN61000-3-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,11, EN61547
IP Rating: IP66

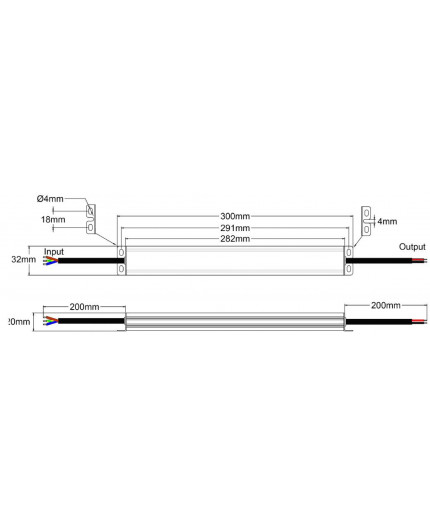

Dimensions: 300*32*20mm (L*W*H)
Packing: 0.45Kg

NOTE: ELED-60-24T-SLP prefers leading edge dimmers
