24Vdc, 60W, 0-10V dimmable LED driver ELED-60-24V
39.90 VAT excl.
£47.88 VAT incl.
60W, 0-10V dimmable LED driver ELED-60-24V for 24Vdc LED lights
- Constant voltage design 24Vdc
- Protections: Short circuit/ Overload/ Over voltage
- Built-in PFC function (PFC>0.95)
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
24Vdc, 60W, 0-10V dimmable LED driver ELED-60-24V
Model: ELED-60-24V
Output DC voltage: 24V
Output current: 0-2.5A
Voltage accuracy: ±0.5V
Rated power: 60W
Input Voltage Range: 180-240VAC
Frequency Range: 48-62HZ
Power Factor ( Typ.): PF ≥ 0.95/220V
Full Load Efficiency(Typ.): >80%
Inrush Current: 14.8W
Protections: Short circuit/ Overload/ Over voltage
Working TEMP.: -30~+45°C
Working Humidity: 5~95%RH,non-condensing
Isolation Voltage: In/ Out 3000VAC
Vibration: 5-55Hz/ 2g, 30minutes
EMI: EN55022, EN55015 Class B
Safety: EN60598
Electromagnetic Immunity: EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11
Harmonic Current Emissions: EN61000-3-2, EN61000-3-3

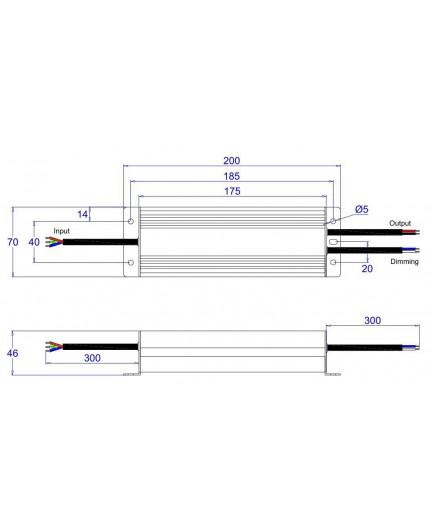

Dimensions: 200x 70x 46mm (L*W*H)
Packing: 1.0Kg
ELED-60-24V
2 Items
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP66
- Output
- 24VDC
- Wattage
- 60W
- Dimming Control
- 0/1-10V/PWM/resistance
- Design
- Metal case
- Power factor correction (PFC)
- Built-in active PFC function
