12Vdc 50W DALI dimmable LED driver, active PFC
49.00 VAT excl.
£58.80 VAT incl.
50W DALI dimmable LED driver, Constant Voltage, active PFC function.
Suitable for 12Vdc LED lighting and moving sign applications.
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
DALI dimmable LED driver, active PFC 50W
Model: ELED-50-12D
- DALI dimmable
- Constant Voltage Design, 12Vdc
- IP20 design
- Built-in active PFC function
- Suitable for LED lighting and moving sign applications
Output DC voltage: 12V
Rated current: 0～4.16A
Voltage accuracy: ±0.5V
Rated power: 50W
Min. load: 5W
Input Voltage Range: 100-265VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF≥0.98/120VAC
Full Load Efficiency (Typ.): 80%
AC Current (Typ.): 0.54A
Leakage current: <0.5mA
Protections: Short Circuit (Hiccup mode, recovers automatically after fault condition is removed)/ Over Loading (≤120%)
Built-in active PFC function
Cooling by free air convection
Working TEMP.: -40~+60°C
Working Humidity: 20~90%RH,non-condensing
Storage TEMP.-40～+60℃，10～95%RH
Humidity: ±0.03%/℃（0～50℃）
Vibration: 10～500Hz, 2G 10min./1 cycle, period for 60min.each along X,Y,Z axes
Safety standards: EN61347-1 EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/PO/P：100M Ohms/500VDC/25℃/70%RH
EMC Emission: Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,11, A light industry Level (surge 4KV)

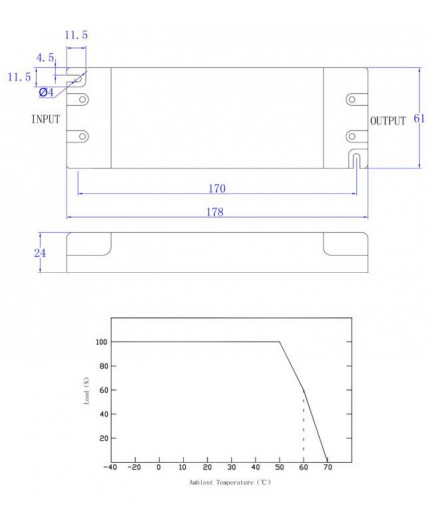

Dimensions: 178x 61x 24mm (L*W*H)
Packing: 0.4Kg
ELED-50-12D
197 Items
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Output
- 12VDC
- Wattage
- 50W
- Dimming Control
- DALI
- Design
- Plastic case
