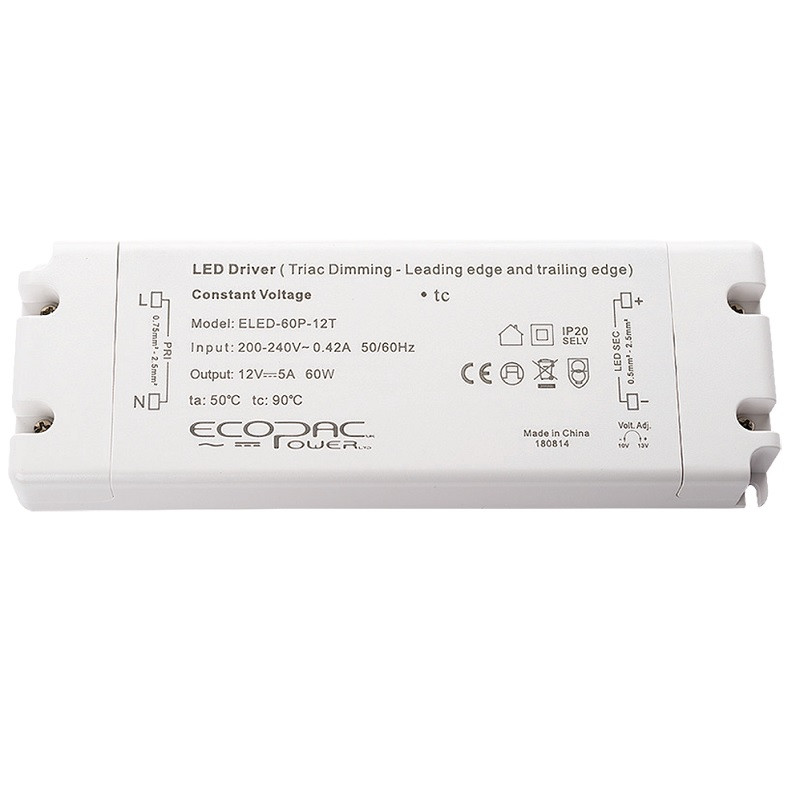

12Vdc 60W leading & trailing edge dimmable LED driver, ELED-60P-12T

Name: 12Vdc 60W leading & trailing edge dimmable LED driver, ELED-60P-12T
Brand: Ecopac (UK) Power Ltd
SKU: ELED-60P-12T
Price: 54 GBP
Availability: InStock

45.00 VAT excl.

£54.00 VAT incl.

60W 12Vdc Constant Voltage leading & trailing edge dimmable LED driver, for 12Vdc LED lights IP20
- Constant Voltage Design
- Suitable for LED lighting and moving sign applications

Volume discounts

Quantity	Unit price	You Save
5	£54.00	£2.70
10	£54.00	£10.80
20	£54.00	£32.40
50	£54.00	£108.00
100	£54.00	£270.00

In stock 156 Items

in-stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

12Vdc 60W dimmable (leading & trailing edge) LED driver

Model: ELED-60P-12T
Output DC voltage: 12V
Rated current: 5A
Voltage accuracy: ±0.5V
Rated power: 60W
Min. load: 6W
Input Voltage Range: 200-240VAC
Frequency Range: 47-63HZ
Inrush current: 50A
Power Factor ( Typ.): PF>0.98/200VAC PF>0.98/230VAC PF>0.98/240VAC (Full Loading)
Full Load Efficiency(Typ.): 85%
AC Current(Typ.): 0.38A
Leakage current: <0.50mA/220VAC
Protections: Short Circuit/ Over Loading/ Over Current
Cooling by free air convection

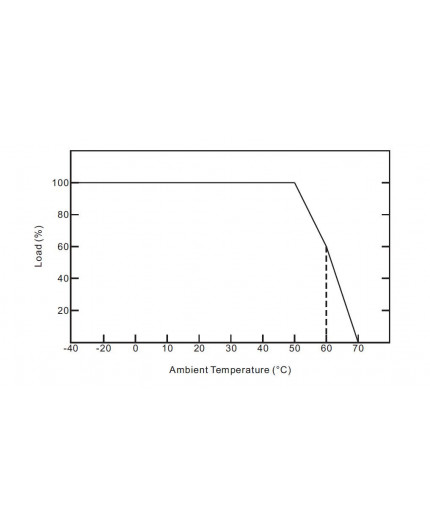

Working TEMP.: -40~+60°C
Working Humidity: 20~90%RH,non-condensing
Storage TEMP.-40*C - +80*V
Humidity: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz,5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
Withstand voltage: I/P-O/P:3.75KVAC
Isolation Voltage In/ Out 3750VAC EMI EN55015 Class B Safety EN61347-1, EN61347-2-13 EMC Emission EN55015, EN61000-3-2,3 (>50% loading) EMC Immunity EN61000-4-2,3,4,5,6,11 (Surge 4KV)

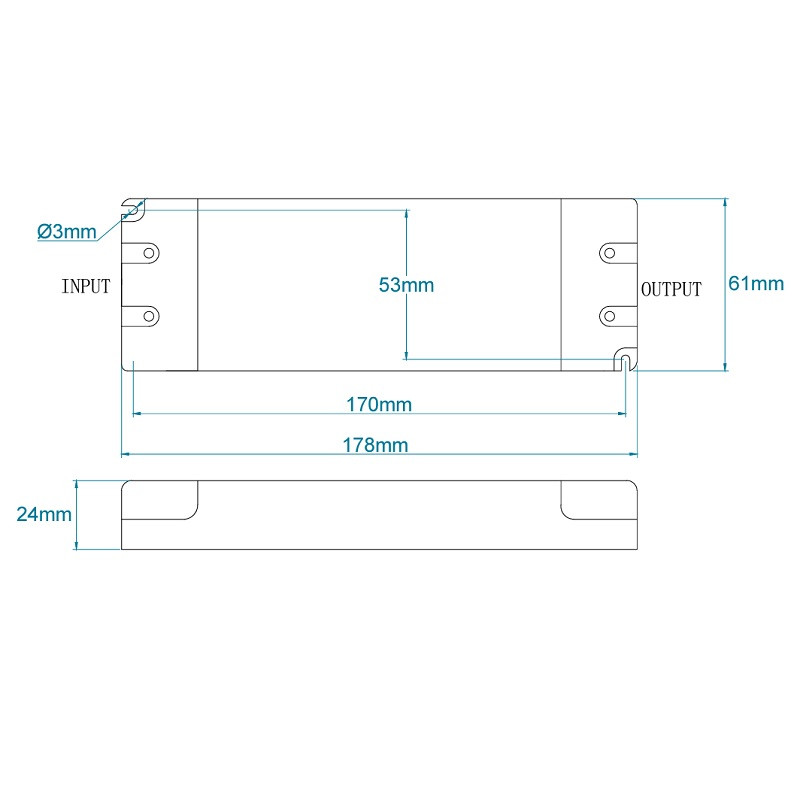

Dimensions: 178x 61x 24mm (L*W*H)
Packing: 0.35Kg
