20W 12Vdc Single Output Switching LED Power Supply IP67 wall box shape
7.90 VAT excl.
£9.48 VAT incl.
20W 12Vdc LED Driver Single Output, GL Power
- Suitable for LED lighting
- Universal AC input
- Constant voltage design: 12Vdc
- Fully encapsulated with IP67 level
- Wall box shape
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

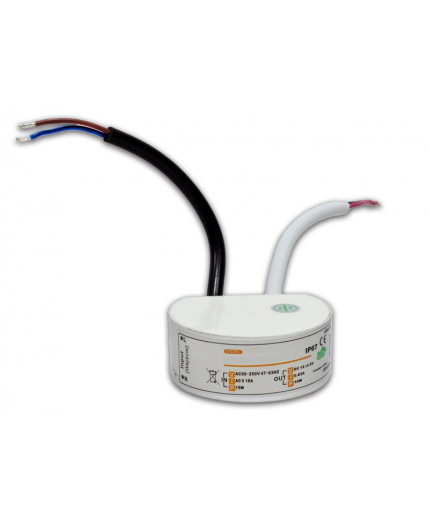

20W 12Vdc Single Output Switching LED Power Supply IP67 wall box shape
Model: A2012Y (wall box shape)
Output:
LED driver mode: constant voltage
Output Voltage: 12Vdc
No of outputs: 1
Output Voltage: 12Vdc
No of outputs: 1
Rated current: 1.67A
Current range: 0-1.67A
Rated power: 20.04W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Rated power: 20.04W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 920mVP-P
Setup, Rise Time: 240ms, 30ms / 230VAC at full load
Hold up Time: 15ms / 230VAC at full load
Setup, Rise Time: 240ms, 30ms / 230VAC at full load
Hold up Time: 15ms / 230VAC at full load
Input:
Input Voltage:180-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 78%
AC current (typ.): 0.22A / 230VAC
Input Voltage:180-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 78%
AC current (typ.): 0.22A / 230VAC
Protections:
Overload:
- range: 105 ÷ 135%
- type: hiccup mode, auto-recovery
Overload:
- range: 105 ÷ 135%
- type: hiccup mode, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Environment:
Working temperature: -5°C ÷ 40°C
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Safety:
Withstand Voltage: IN/OUT: 3kVAC
Isolation Resistance: IN/OUT: 100MΩ/500VDC/25°C/70%
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Safety:
Withstand Voltage: IN/OUT: 3kVAC
Isolation Resistance: IN/OUT: 100MΩ/500VDC/25°C/70%
Other:

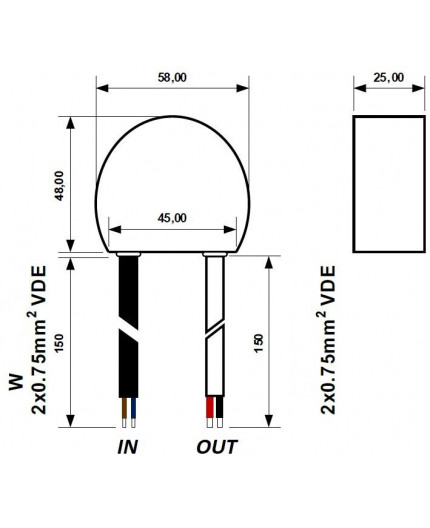

Dimensions: D58 x H25mm
Weight: 0.13kg
Termination style: flying leads, approx. 150mm ± 50mm (2 x 0.75mm2 VDE for IN/OUT)
IP67
Dimensions: D58 x H25mm
Weight: 0.13kg
Termination style: flying leads, approx. 150mm ± 50mm (2 x 0.75mm2 VDE for IN/OUT)
IP67
ML-A2012Y
92 Items
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP67
- Output
- 12VDC
- Wattage
- 20W
- Dimming Control
- Non-dimmable
- Design
- Wall Box-Shape
