150W 24Vdc Single Output Switching LED Power Supply with PFC Function

150W 24Vdc Single Output Switching LED Power Supply with PFC Function

£49.00

£49.00 VAT excluded

Volume discounts

Quantity Unit discount You Save
10 1% Up to £4.90
20 2% Up to £19.60
50 3% Up to £73.50
100 4% Up to £196.00
200 5% Up to £490.00
Quantity

150W 24Vdc Constant voltage LED Power Supply, Single Output, GL Power, GLG-150-24
- Suitable for LED lighting
- CV + CC mode
- Universal AC input
- IP67

3 years warranty



You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

150W 24Vdc Single Output Switching LED Power Supply with PFC Function, GL Power

Output:
LED driver mode: constant voltage
Output Voltage: 24Vdc
Constant current region: 18 ÷ 24V
No of outputs: 1
Rated current: 6.3A
Output current adjustment range: 3.2 ÷ 6.3A
Output voltage adjustment range: 22 ÷ 27V
Rated power: 151.2W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 3%
Ripple & noise (max.): 150mVP-P
Setup, rise time: 1300ms, 80ms / 230VAC; 2500ms, 80ms / 115VAC
Hold up time (typ.): 20ms / 115VAC, 20ms / 230VAC

Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 92%
AC current (typ.): 2A/115VAC, 1A / 230VAC
Power factor: PF > 0.95 / 230VAC; PF > 0.98 / 115VAC
Inrush current (typ.): 75A / 230VAC
Leakage current(max.): 1mA / 240VAC
Protections:
Overcurrent:
- range:   95 ÷ 110% rated current
- type: constant current limiting, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Over voltage:
- 28 ÷ 34V
- type: shut down output voltage. Re-power on to recovery.
Over temperature:
- range:  105°C ± 10°C(detect on heat sink of power diodes).
- type:  shut down output voltage. Auto-recovery after temperature goes down.

Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 95% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP65
Withstand voltage: -P/O-P: 3kVAC; I-P/GND: 2kVAC; O-P/GND: 0.5kVAC
Isolation resistance: I-P/O-P, I-P/GND, O-P/GND: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2 class C( ≥ 50% load)
TÜV certificate

Other:

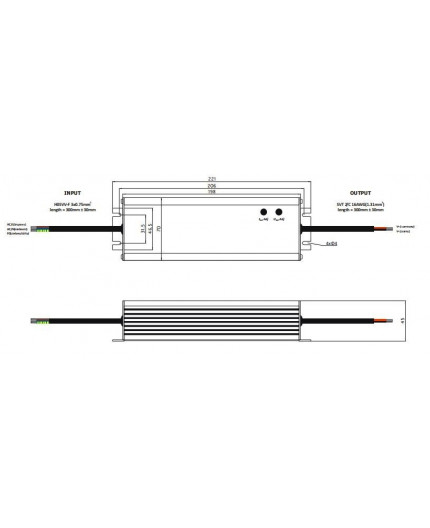

Dimensions: 221 x 70 x 45mm
Weight: 1.15kg
Termination style: flying leads, length = 300mm ± 30mm (INPUT: H05VV-F 3x0.75mm; OUTPUT: SVT 2/C 16AWG (1.31mm ))
IP67
GLG-150-24
100 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP67
Output
24VDC
Wattage
150W
Dimming Control
Non-dimmable
Design
Metal case
Power factor correction (PFC)
Built-in active PFC function

Specific References

Download

data sheet

Download (641.89k)
