24Vdc 50W Triac dimmable (leading / trailing edge) LED driver, ELED-50-24T, Premium

Name: 24Vdc 50W Triac dimmable (leading / trailing edge) LED driver, ELED-50-24T, Premium
Brand: Ecopac (UK) Power Ltd
SKU: ELED-50-24T
Price: 44.4 GBP
Availability: InStock

37.00 VAT excl.

£44.40 VAT incl.

50W 24Vdc Constant Voltage Triac dimmable LED driver (PWM output), for 24Vdc LED lights, IP20
- Constant Voltage Design
- Suitable for LED lighting and moving sign applications

Volume discounts

Quantity	Unit price	You Save
5	£44.40	£2.22
10	£44.40	£8.88
20	£44.40	£26.64
50	£44.40	£88.80
100	£44.40	£222.00

In stock 3 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Description
Product Details

24Vdc 60W Triac dimmable (leading/trailing edge) LED driver Premium
Built-in active PFC function

Model: ELED-50-24T
Output DC voltage: 24V
Rated current: 2.5A
Voltage accuracy: ±0.5V
Rated power: 50W
Min. load: 5W
Input Voltage Range: 200-240VAC
Frequency Range: 47-63HZ
Inrush Current: 50A (Twidth=176μs 230VAC)
Power Factor ( Typ.): PF>0.98/200VAC PF>0.98/230VAC PF>0.98/240VAC (Full Loading)
Full Load Efficiency(Typ.): 85%
AC Current(Typ.): 0.38A
Leakage current: <0.50mA
Protections:
Short Circuit: Shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading: ≤120%, shut down o/p voltage, re-power on to recover
Over Current: ≤1.2 *I out
Over Temperature: 100°C± 10°C shut down o/p voltage, re-power on to recover
Cooling by free air convection

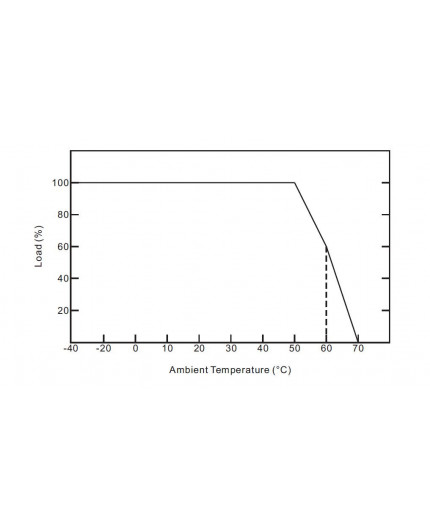

Working TEMP.: -40~+70°C (Refer to derating curve)
Working Humidity: 20 -90% RH, non-condensing
Storage TEMP.Ł -40~+80°C
Humidity: 10 -95% RH
Temperature Coefficient: ±0.03%/°C (0-50°C)
Vibration: 10-500Hz, 2G 10min./ 1 cycle, period for 72min.each along X, Y, Z axes
Safety standards: EN61347-1, EN61347-2-13
Withstand voltage: I/P-O/P: 3.75KVAC
Isolation Resistance: I/P-O/P:100MΩ/500VDC/25°C/70%RH
EMC Emission: Compliance to EN55015, EN61000-3-2,3 (>60%load)

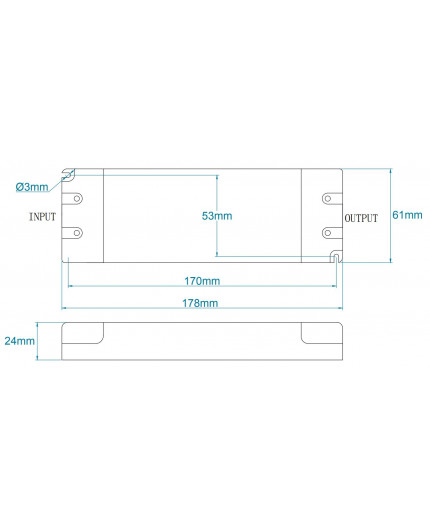

Dimensions: 178x 61x 24mm (L*W*H)
Packing: 0.35Kg

Note: ELED-50-24T prefers leading edge dimmers
