90W Mains to 24Vdc Triac dimmable LED driver, IP20 ELED-90-24T

90W Mains to 24Vdc Triac dimmable LED driver, IP66

Model: ELED-90-24T
Output DC voltage: 24V
Rated current: 3.75A
Voltage accuracy: ±0.5V
Rated power: 90W
Min. load: 10W
Input Voltage Range: 200-240VAC
Frequency Range: 47-63HZ
Inrush Current: 68A (Twidth=130μs 230VAC)
Power Factor ( Typ.): PF>0.98/200VAC PF>0.98/230VAC PF>0.98/240VAC (Full Loading)
Full Load Efficiency(Typ.): 86%
AC Current(Typ.): 0,65A
Leakage current: <0.50mA
Short Circuit Shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading ≤120%, shut down o/p voltage, re-power on to recover
Over curent: ≤1.2 *I out
Over Temperature 100°C± 10°C shut down o/p voltage, re-power on to recover
Working Temperature -40~+70°C (Refer to derating curve)
Working Humidity 20 -90% RH, non-condensing
Storage Temperature, Humidity -40~+80°C, 10 -95% RH
Temperature Coefficient ±0.03%/°C (0-50°C)
Vibration: 10-500Hz, 2G 10min./ 1 cycle, period for 72min.each along X, Y, Z axes
Safety standards: EN61347-1, EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/P-O/P:100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2,3 (>60%load)
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8, 11, EN61547,A light industry level
IP Rating: IP20

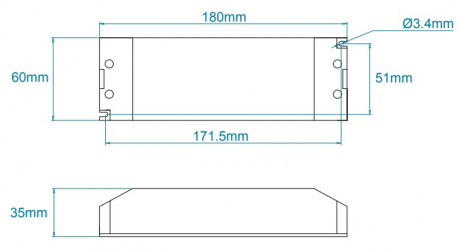

Dimensions: 180*60*35mm (L*W*H)
Weight: 0,45Kg

NOTE: ELED-90-24T prefers leading edge dimmers (Please use dimmers with power ratings at least 2 times the power rating of the LED Driver)
