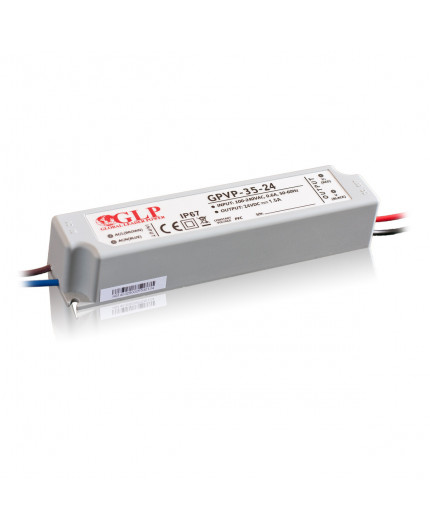

36W 24Vdc Single Output Switching LED Power Supply, GL Power, built-in active PFC function
Model: GPVP-35-24
Model: GPVP-35-24
Output:
LED driver mode: constant voltage
Output Voltage: 24Vdc
No of outputs: 1
Output Voltage: 24Vdc
No of outputs: 1
Rated current: 1.5A
Current range: 0-1.5A
Rated power: 36W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 5VP-P
Setup, rise time: 2000ms, 250ms / 230VAC; 3000ms, 250ms / 115VAC at full load
Rated power: 36W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 5VP-P
Setup, rise time: 2000ms, 250ms / 230VAC; 3000ms, 250ms / 115VAC at full load
Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 84%
AC current (typ.): 0.6A/115VAC, 0.3A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 / 115VAC
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 84%
AC current (typ.): 0.6A/115VAC, 0.3A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 / 115VAC
Inrush current (typ.): 65A / 230VAC
Leakage current(max.): 1mA / 240VAC
Leakage current(max.): 1mA / 240VAC
Protections:
Overcurrent:
- range: 110 ÷ 130%;
- type: constant current limiting, auto-recovery
Overcurrent:
- range: 110 ÷ 130%;
- type: constant current limiting, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2 class C( ≥ 60% load)
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2 class C( ≥ 60% load)
Other:

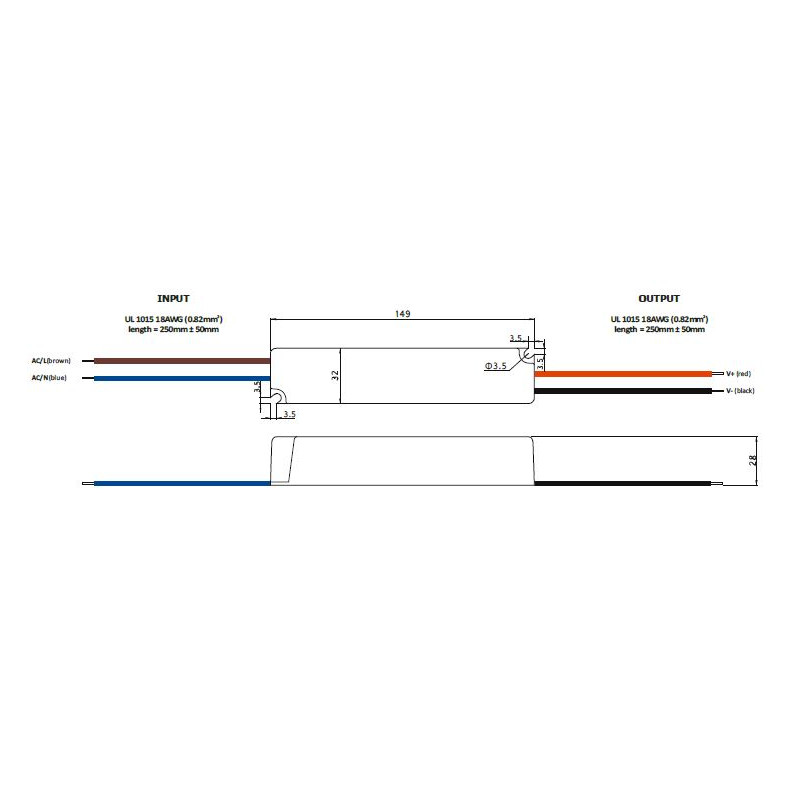

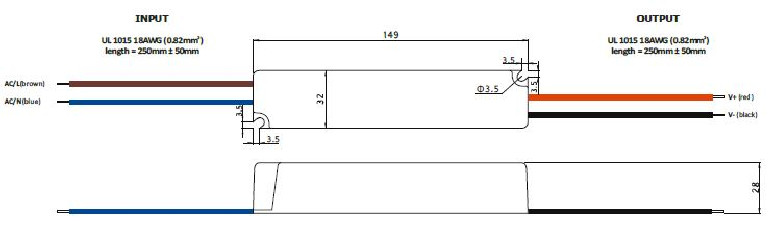

Dimensions: 149 x 32 x 28mm
Weight: 0.25kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
IP67
GPVP-35-24
4 Items
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP67
- Output
- 24VDC
- Wattage
- 36W
- Dimming Control
- Non-dimmable
- Design
- Plastic case
- Power factor correction (PFC)
- Built-in active PFC function
