20W 24VDC Single Output Switching LED Power Supply, wall box shape
20W 24VDC Single Output Switching LED Power Supply, wall box shape

20W 24VDC Single Output Switching LED Power Supply, wall box shape

7.90 VAT excl.
£9.48 VAT incl.

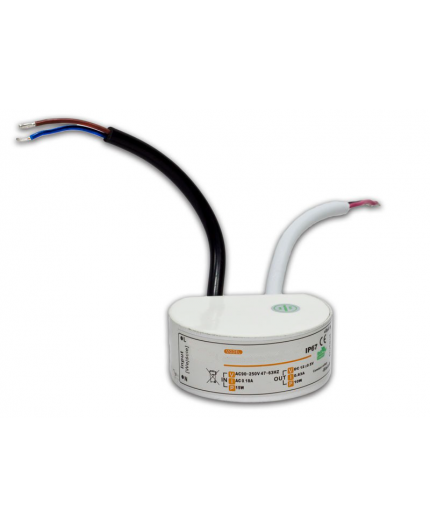

A2024Y, 20W 24Vdc LED Driver Single Output, GL Power
- Suitable for LED lighting
- Universal AC input
- Constant voltage design: 24Vdc
- Isolation class II
- Fully encapsulated with IP67 level
- Wall box shape

98 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Model: A2012Y (wall box shape)


Output:
LED driver mode: constant voltage
Output Voltage: 24Vdc
No of outputs: 1
Rated current: 0.83A
Current range: 0-0.83A
Rated power: 19.92W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 1200mVP-P
Setup, Rise Time: 240ms, 30ms / 230VAC at full load
Hold up Time: 15ms / 230VAC at full load
Input:
Input Voltage:180-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 80%
AC current (typ.): 0.22A / 230VAC
Protections:
Overload:
- range: 105 ÷ 135%
- type: hiccup mode, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Environment:
Working temperature: 0°C ÷ 40°C
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -20°C ÷ 80°C, 10 ÷ 95% RH non-condensing


Safety:
Withstand Voltage: IN/OUT: 3kVAC
Isolation Resistance: IN/OUT: 100MΩ/500VDC/25°C/70%
Other:

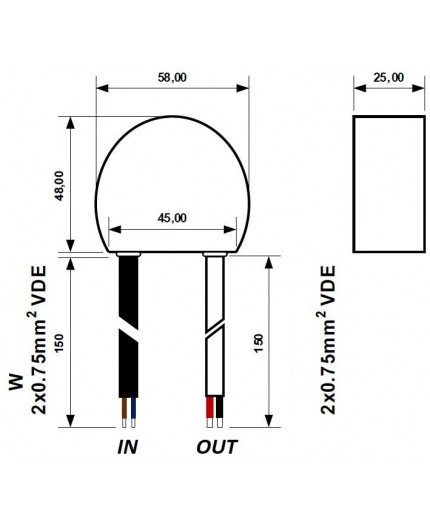

Dimensions: D58 x H25mm
Weight: 0.13kg
Termination style: flying leads, approx. 150mm ± 50mm (2 x 0.75mm2 VDE for IN/OUT)
IP67
ML-A2024Y
98 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP67
Output
24VDC
Wattage
20W
Dimming Control
Non-dimmable
Design
Wall Box-Shape
