12W 24Vdc, Constant Voltage LED Driver, LED12-24CV-S, Govena

Name: 12W 24Vdc, Constant Voltage LED Driver, LED12-24CV-S, Govena
Brand: Govena_
SKU: LED12-24CV-S
Price: 11.88 GBP
Availability: InStock

9.90 VAT excl.

£11.88 VAT incl.

12W, 24Vdc, constant voltage LED Driver, LED12-24CV-S, Govena
Fully isolated plastic case
Output: 24VDC, max. 0.5A
Load: from 2.5W to 12W
Input: 185-265VAC/260-375VDC, 47-53Hz, max. 85mA

In stock 25 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

12W 24Vdc, Constant Voltage LED Driver, LED12-24CV-S, Govena

Product code: Z-LED-12W-24CV-SLIM
Rated power: 12W
Power range: from 2.5W to 12W
Output voltage: 24VDC
Constant voltage range: 0.1-0.5A
Rated current: 0.5A
Voltage tolerance: ±2%
Line regulation: ±2.5%
Input voltage: 185-265 VAC / 260-375 VDC
Frequency range: 47-53Hz
Turn-on delay: ≤ 600ms/ 230VAC at 100% load
Output stabilization: Constant voltage
Power factor: at 100% load and 230Vac - 0.95; at 60%-100% load and 230Vac - ≥0.90
Efficiency: 86%
Inrush current: <18A
No load power consumption (standby): 0.1W

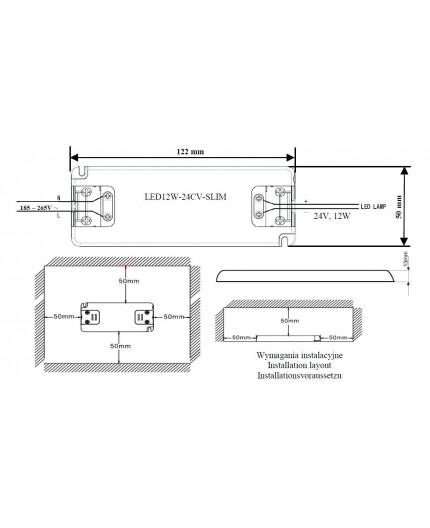

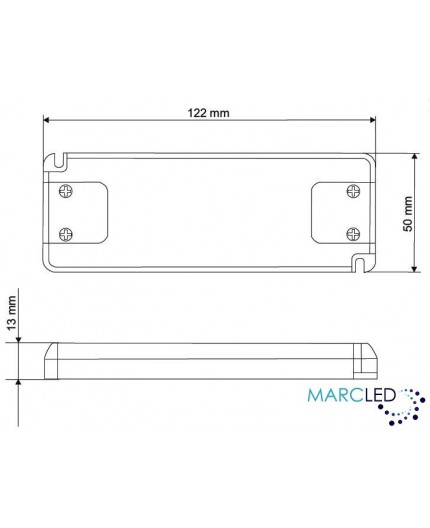

Dimensions: L 122 mm x W 50 mm x H 13 mm
Weight: 55 g
Dimmable: No
Protection degree: IP20
Over Current: Constant current limiting, recovers automatically after fault condition is removed
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 35V; protection type: Constant voltage limiting
Over temperature: 85 ± 10°C , protection type: Decrease in output voltage and output power
Working temperature ta: -20*C - +45*C
Working humidity: 10-95%RH
Storage temperature/humidity: -20*C - +75*C/10-95%RH
Case temperature tc: max. 80*C
Meets standards: EN 61347-1, EN 61347-2-13, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
